Product detailed description

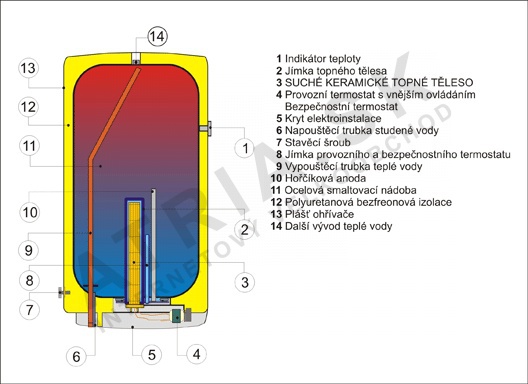

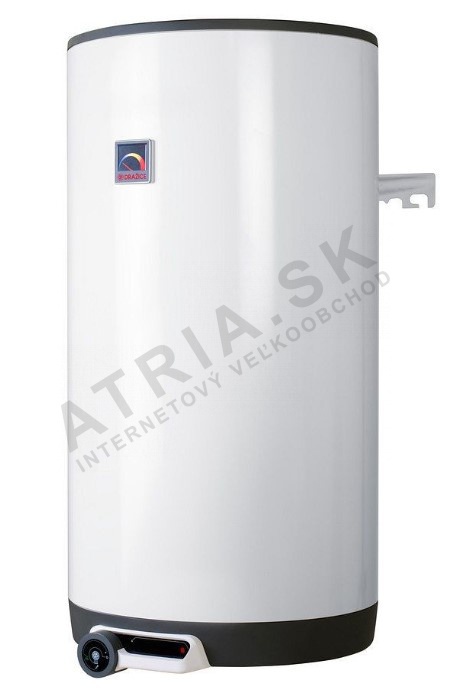

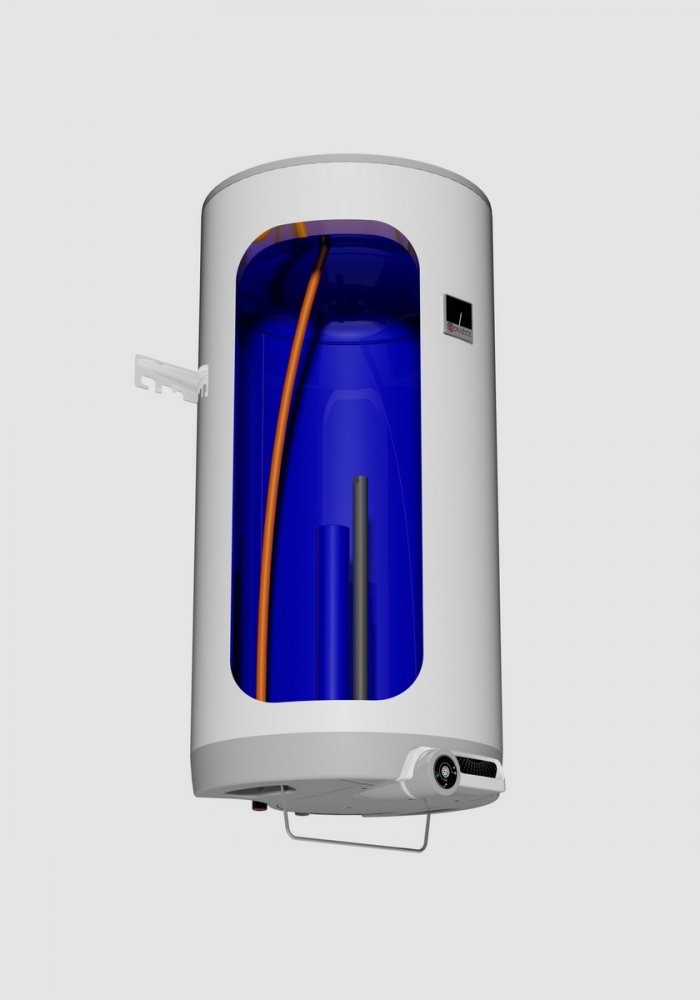

Electric round water heater, boiler Dražice OKCE 160

Use:

Electric storage wall-mounted vertical boiler designed for multiple draw-off points for water heating using electric energy
Suitable as a source of hot water for family houses, apartments, hostels, and places with a need for a larger amount of hot water.
Possibility of preparing domestic hot water using a lower electricity tariff - night current
Suitable for a family of two or more members
Suitable for humid environments
Vertical installation on a wall - upright
Wide range of applications

Features and advantages:

The materials and components used guarantee long-lasting durability and safe comfort
Attractive design
Possibility to use a low electricity tariff - night current
Ceramic heating element controlled by an operating thermostat
Enamelled tank
Combination of high output and low energy consumption
Low heat losses
Resistant to corrosion and limescale buildup
Safety valve
Operating thermostat
Safety thermostat - thermal fuse
Thermometer
Magnesium anode 65 mm polyurethane insulation

Product tested according to the highest quality standards

Accessories - safety valve

Type	OKCE 50	OKCE 80	OKCE 100	OKCE 125	OKCE 160	OKCE 200
Volume [l]	50	80	100	125	160	200
Maximum operating pressure of the tank [MPa]	0.6	0.6	0.6	0.6	0.6	0.6
Voltage [V]	230	230	230	230	230	230
Power input [W]	2 000	2 000	2 000	2 000	2 000	2 200
Electrical protection rating	IP 45	IP 45	IP 45	IP 45	IP 45	IP 45
Heater height [mm]	561	736	881	1 046	1 235	1 300
Heater diameter [mm]	524	524	524	524	524	584
Maximum heater weight without water [kg]	30	36	42	48	58	76
Heating time from 10° to 60°C	1.5 hrs.	2.5 hrs.	3 hrs.	3.5 hrs.	5 hrs.	5.5 hrs.

Frequently Asked Questions

What tank volume should I choose? A common estimate of consumption is based on approx. 40-50 liters of hot water (at approx. 40-45 °C) per person per day for standard use (showering, washing); for bathing in a tub or a larger number of bathrooms/draw-off points, a larger volume should be considered. When choosing, also take into account whether the tank will be heated by a high-output boiler (faster heating, a smaller volume may be sufficient) or, for example, only by a solar system (where, on the contrary, a larger volume is worthwhile for heat accumulation during the day).
Can I connect this DRAŽICE tank to an existing boiler? In most cases, yes, but you should check the compatibility of the hydraulic connection (dimensions and type of connections) and whether your boiler supports control of the tank heating (a temperature sensor in the tank and possibly a switching valve is required) - you can find these details in the product's technical parameters or ask our customer service for advice.
Where and how is the tank installed? The tank is placed as close as possible to the heat source (boiler) to minimize heat losses on the connecting pipework, while still leaving sufficient space around it for service access (anode replacement, safety valve inspection).
Does the installation have to be done by a professional? We always recommend entrusting the hydraulic connection to the water supply and heat source, including fitting the safety valve at the correct pressure, to a heating engineer/installer - an incorrectly fitted or missing safety valve poses a safety risk.
