Dražice OKCE 200
Code: 110710801Related products
Product detailed description

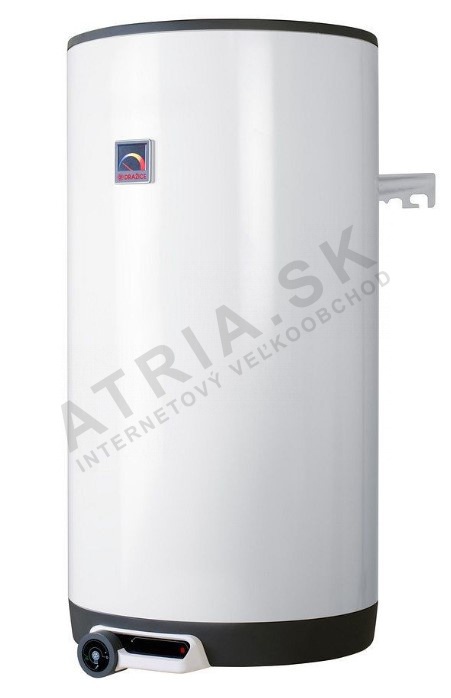

Electric round water heater, boiler Dražice OKCE 200
Use:
- Electric storage wall-mounted vertical boiler designed for multiple draw-off points for heating water with electric energy
- Suitable as a source of hot water for family houses, apartments, hostels, and places with a need for a larger amount of hot water.
- Possibility of hot water preparation using a lower electricity tariff - night current
- Suitable for a family of two or more members
- Suitable for humid environments
- Vertical installation on the wall - upright
- Wide range of applications

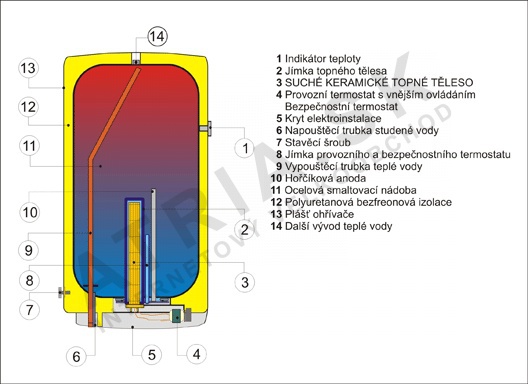

Features and advantages:
- Materials and components used guarantee long service life and safe comfort
- Attractive design
- Possibility of using a low electricity tariff - night current
- Ceramic heating element controlled by an operating thermostat
- Enamelled tank
- Combination of high output and low energy consumption
- Low heat losses
- Resistant to corrosion and limescale build-up
- Safety valve
- Operating thermostat
- Safety thermostat - thermal fuse
- Thermometer
- Magnesium anode 65 mm polyurethane insulation
Product tested according to the highest quality standards
Accessories - safety valve
| Type | OKCE 50 | OKCE 80 | OKCE 100 | OKCE 125 | OKCE 160 | OKCE 200 |
|---|---|---|---|---|---|---|
| Volume [l] | 50 | 80 | 100 | 125 | 160 | 200 |
| Maximum operating pressure of the vessel [MPa] | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Voltage [V] | 230 | 230 | 230 | 230 | 230 | 230 |
| Power input [W] | 2 000 | 2 000 | 2 000 | 2 000 | 2 000 | 2 200 |
| Electrical protection rating | IP 45 | IP 45 | IP 45 | IP 45 | IP 45 | IP 45 |
| Heater height [mm] | 561 | 736 | 881 | 1 046 | 1 235 | 1 300 |
| Heater diameter [mm] | 524 | 524 | 524 | 524 | 524 | 584 |
| Maximum weight of heater without water [kg] | 30 | 36 | 42 | 48 | 58 | 76 |
| Heating time from 10° to 60°C | 1.5 h | 2.5 h | 3 h | 3.5 h | 5 h | 5.5 h |
Frequently Asked Questions
- What tank volume should I choose? A common estimate of consumption is based on approx. 40-50 liters of hot water (at approx. 40-45 °C) per person per day for standard consumption (showering, washing); for bathing in a tub or a larger number of bathrooms/outlets, a higher volume should be considered. When choosing, also consider whether the tank will be heated by a high-output boiler (faster heating, a smaller volume may suffice) or, for example, only by a solar system (where, on the contrary, a larger volume is worthwhile for heat accumulation during the day).
- Can I connect this DRAŽICE tank to an existing boiler? In most cases yes, but you should verify the compatibility of the hydraulic connection (dimensions and type of connections) and whether your boiler supports tank heating control (a temperature sensor in the tank and possibly a switching valve are required) - you can find these details in the product's technical parameters or ask our customer service for advice.
- Where and how is the tank placed? The tank is placed as close as possible to the heat source (boiler) to minimize heat losses on the connecting piping, while still allowing sufficient space around it for service access (anode replacement, safety valve inspection).
- Must the installation be done by a professional? We always recommend entrusting the hydraulic connection to the water supply and the heat source, including installing the safety valve at the correct pressure, to a heating technician/installer - an incorrectly installed or missing safety valve poses a safety risk.
Additional parameters
| Category: | electric round water heaters - OKCE |
|---|---|
| Warranty: | 2 years |
| Weight: | 76 kg |
| Magnesium anode: | 65 mm |
