Dražice OKCEV 100
Code: 1108308211Related products
Product detailed description

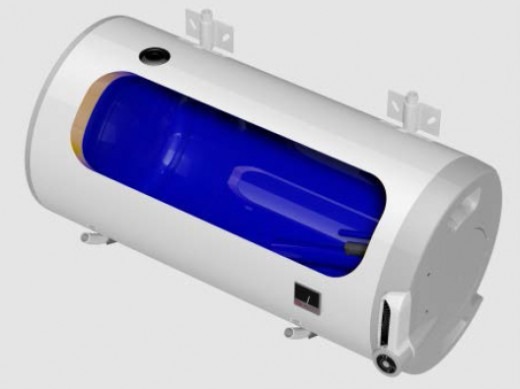

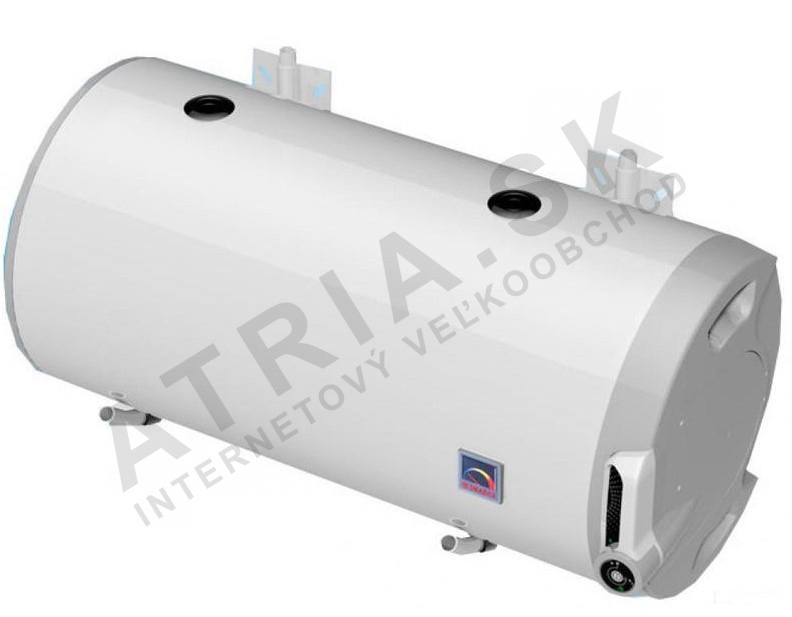

Electric horizontal water heater, boiler Dražice OKCEV 100 for water heating

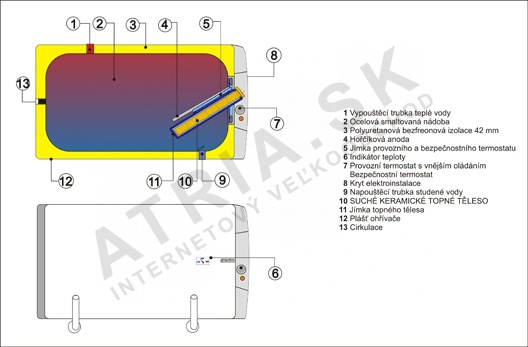

Electric storage water heater with a horizontal working position for spaces with limited room, with volumes of 100-200 litres. The heater can be mounted on the wall using the supplied brackets, or attached in a horizontal position using hangers to a suitable structure (must be ordered separately). Space above and below the heater must always be allowed for connecting the pipework. Heating is provided by a ceramic heating element controlled by an operating thermostat and protected by a safety thermostat (thermal fuse).
- Temperature range 5-74 °C.
- Connection voltage 1-PE-N/AC 230 V/50 Hz.
- Electrical protection rating IP 44 allows the heater to be placed in zone 2 according to STN 33 2000-7-701.
Preparation of domestic hot water in buildings with the possibility of using a low electricity tariff (night current).
Accessories - Safety valve - Set of hangers for mounting on a horizontal structure.
Working position: horizontal
Electric storage water heater with a horizontal working position for spaces with limited room, with a volume of 100 litres.
Technical parameters:
| Type | OKCEV 100 | OKCEV 125 | OKCEV 160 | OKCEV 200 |
|---|---|---|---|---|
| Volume [l] | 100 | 125 | 160 | 200 |
| Maximum operating pressure of the tank [MPa] | 0.6 | 0.6 | 0.6 | 0.6 |
| Voltage [V] | 230 | 230 | 230 | 230 |
| Power input [W] | 2 000 | 2 000 | 2 000 | 2 200 |
| Electrical protection rating | IP 45 | IP 45 | IP 45 | IP 45 |
| Heater height [mm] | 881 | 1 046 | 1 235 | 1 300 |
| Heater diameter [mm] | 524 | 524 | 524 | 584 |
| Maximum weight of heater without water [kg] | 41 | 47 | 56 | 78 |
| Heating time by electricity from 10 °C to 60 °C [hrs] | 3 | 3.8 | 5 | 5.5 |
| Heat losses / energy efficiency class | 0.88 / C kWh/24 hrs | 1.09 / C kWh/24 hrs | 1.39 / C kWh/24 hrs | 1.39 / C kWh/24 hrs |
Frequently Asked Questions
- What tank volume should I choose? A typical consumption estimate is based on approximately 40-50 litres of hot water (at about 40-45 °C) per person per day for standard use (showering, washing); for bathing in a tub or a larger number of bathrooms/outlets, a larger volume should be considered. When choosing, also take into account whether the tank will be heated by a high-output boiler (faster heating, a smaller volume may suffice) or, for example, only by a solar system (where a larger volume is worthwhile for accumulating heat during the day).
- Can I connect this DRAŽICE tank to an existing boiler? In most cases yes, but you should check the compatibility of the hydraulic connection (dimensions and type of connections) and whether your boiler supports control of the tank heating (a temperature sensor in the tank and possibly a switching valve are required) - you can find these details in the product's technical parameters, or our customer service can advise you.
- Where and how is the tank placed? The tank is placed as close as possible to the heat source (boiler) to minimise heat losses in the connecting pipework, while also allowing sufficient space around it for service access (anode replacement, safety valve inspection).
- Must the installation be done by a professional? We always recommend entrusting the hydraulic connection to the water supply and heat source, including fitting the safety valve at the correct pressure, to a heating engineer/plumber - an incorrectly fitted or missing safety valve poses a safety risk.
Additional parameters
| Category: | electric horizontal water heaters - OKCEV |
|---|---|
| Warranty: | 2 years |
| Weight: | 41 kg |
