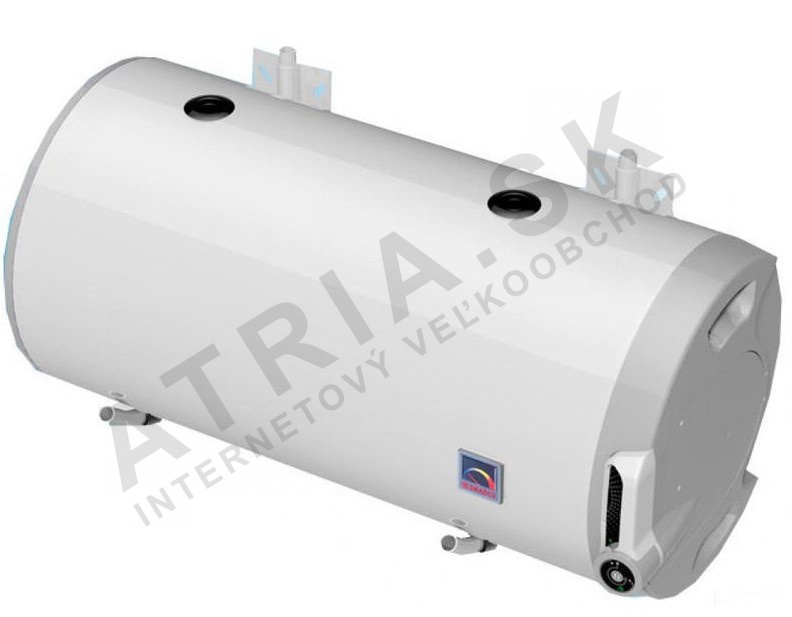

Dražice OKCEV 180
Code: 110430811Related products
Product detailed description
Electric horizontal water heater, boiler Dražice OKCEV 180 for water heating
Optional equipment:
- Circulation inlet
- Heating element with 4 kW output and 3 PE-N 400 V/50 Hz connection — only for OKCEV 180 and OKCEV 200 (included for 72.99 EUR incl. VAT)
Main use:
- Preparation of domestic hot water in buildings with the possibility of using a low electricity tariff (night current).
Accessories:
- Safety valve
- Set of hangers for mounting on a horizontal structure
An electric storage heater with a horizontal working position for spaces with limited room, with volumes of 100–200 litres. The heater can be mounted on the wall using the supplied brackets or attached using hangers in a horizontal position to a suitable structure (must be ordered separately). Space above and below the heater must always be allowed for installation of the supply piping.
Heating is provided by a ceramic heating element controlled by an operating thermostat and protected by a safety thermostat (thermal fuse). Temperature range 5–74 °C. Connection voltage 1-PE–N/AC 230 V/50 Hz. Electrical protection rating IP 44 allows the heater to be placed in zone 2 according to ČSN 33 2000–7–701.
| Type | OKCEV 100 | OKCEV 125 | OKCEV 160 | OKCEV 180 | OKCEV 200 |
|---|---|---|---|---|---|
| Volume [l] | 100 | 125 | 152 | 180 | 200 |
| Maximum operating pressure of the tank [MPa] | 0,6 | 0,6 | 0,6 | 0,6 | 0,6 |
| Voltage [V] | 230 | 230 | 230 | 230 | 230 |
| Power input [W] | 2 000 | 2 000 | 2 000 | 2 200 | 2 200 |
| Electrical protection rating | IP 44 | IP 44 | IP 44 | IP 44 | IP 44 |
| Heater height [mm] | 881 | 1 046 | 1 235 | 1 200 | 1 300 |
| Heater diameter [mm] | 524 | 524 | 524 | 584 | 584 |
| Maximum heater weight without water [kg] | 41 | 47 | 56 | 69 | 73 |
| Heating time with electric energy from 10 °C to 60 °C [hours] | 3 | 3,8 | 5 | 5 | 5,5 |
| Heat loss/energy efficiency class [kWh/24 hours] | 0,88/C | 1,09/C | 1,39/C | 1,39/C | 1,4/B |
Additional parameters
| Category: | electric horizontal water heaters - OKCEV |
|---|---|
| Warranty: | 2 years |
| Product replaced by new one:: | https://www.atria.sk/quadroflex-bch-120/ |
| The item has been sold out… | |
