Dražice OKHE 100
Code: 140810801Related products
Product detailed description
Electric square water heater, boiler Dražice OKHE 100
Use: Electric accumulation wall-mounted vertical boiler designed for multiple draw-off points for heating water with electric energy
Suitable as a source of hot water for family houses, apartments, hostels, and places with a need for a larger amount of hot water.
Possibility of hot water preparation using a lower electricity tariff - night current. Suitable for a family of two or more. Suitable for humid environments. Vertical installation on the wall - upright. Wide range of use
Equipment and advantages:
- Electric accumulation heaters, designed for wall mounting, with volumes of 80–160 liters

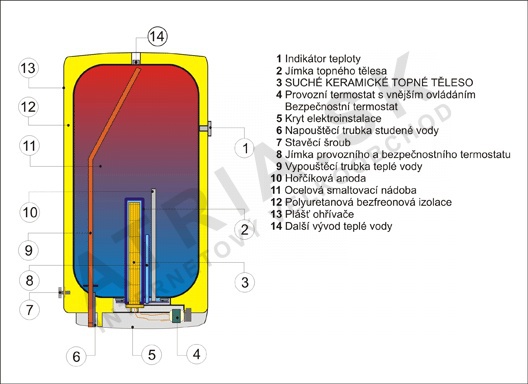

- Heating is ensured by a ceramic heating element, controlled by an operating thermostat and secured by a safety thermostat (thermal fuse).
- Temperature range 5–74 °C. Electrical protection IP 45.
- Strong polyurethane insulation (average 55 mm), very low heat losses.
- attractive design
- adjustable hanging height
- locking of the set temperature
- Hot water preparation in facilities with the possibility of using a low electricity tariff (night current).
Accessories: Safety valve
Product tested according to the highest quality standards
| Type | OKHE 80 | OKHE 100 | OKHE 125 | OKHE 160 |
|---|---|---|---|---|
| Volume [l] | 80 | 100 | 125 | 152 |
| Nominal pressure [MPa] | 0.6 | 0.6 | 0.6 | 0.6 |
| Voltage [V] | 230 | 230 | 230 | 230 |
| Power input [W] | 2 000 | 2 000 | 2 000 | 2 000 |
| Electrical protection | IP 45 | IP 45 | IP 45 | IP 45 |
| Heater height [mm] | 742 | 887 | 1 052 | 1 237 |
| Heater width [mm] | 520 | 520 | 520 | 520 |
| Max. weight without water [kg] | 37 | 42 | 49 | 57 |
| Heating time by electric energy from 10 °C to 60 °C [h] | 2.5 | 3 | 3.8 | 5 |
| Heat loss/energy efficiency class [kWh/24 h] | 0.55/B | 0.7/B | 0.87/B | 1.05/B |
Frequently Asked Questions
- What tank volume should I choose? A common consumption estimate is based on approximately 40-50 liters of hot water (at about 40-45 °C) per person per day for standard use (showering, washing); for bathing in a tub or a larger number of bathrooms/outlets, a higher volume should be considered. When choosing, also consider whether the tank will be heated by a high-output boiler (faster heating, a smaller volume may suffice) or, for example, only by a solar system (where it is worth having a larger volume to accumulate heat during the day).
- Can I connect this DRAŽICE tank to an existing boiler? In most cases yes, but you should verify the compatibility of the hydraulic connection (dimensions and type of connections) and whether your boiler supports control of the tank heating (a temperature sensor in the tank and possibly a switching valve are required) - you can find these details in the product's technical parameters or our customer service can advise you.
- Where and how is the tank placed? The tank is placed as close as possible to the heat source (boiler) to minimize heat losses in the connecting piping, while also allowing enough space around it for service access (anode replacement, safety valve inspection).
- Must the installation be done by a professional? We always recommend entrusting the hydraulic connection to the water supply and heat source, including fitting the safety valve at the correct pressure, to a heating technician/installer - an incorrectly fitted or missing safety valve poses a safety risk.
Additional parameters
| Category: | electric square water heaters - OKHE, OKHE SMART |
|---|---|
| Warranty: | 2 years |
| Weight (kg): | 42 kg |
