DRAŽICE OKHE 160 SMART

Product detailed description

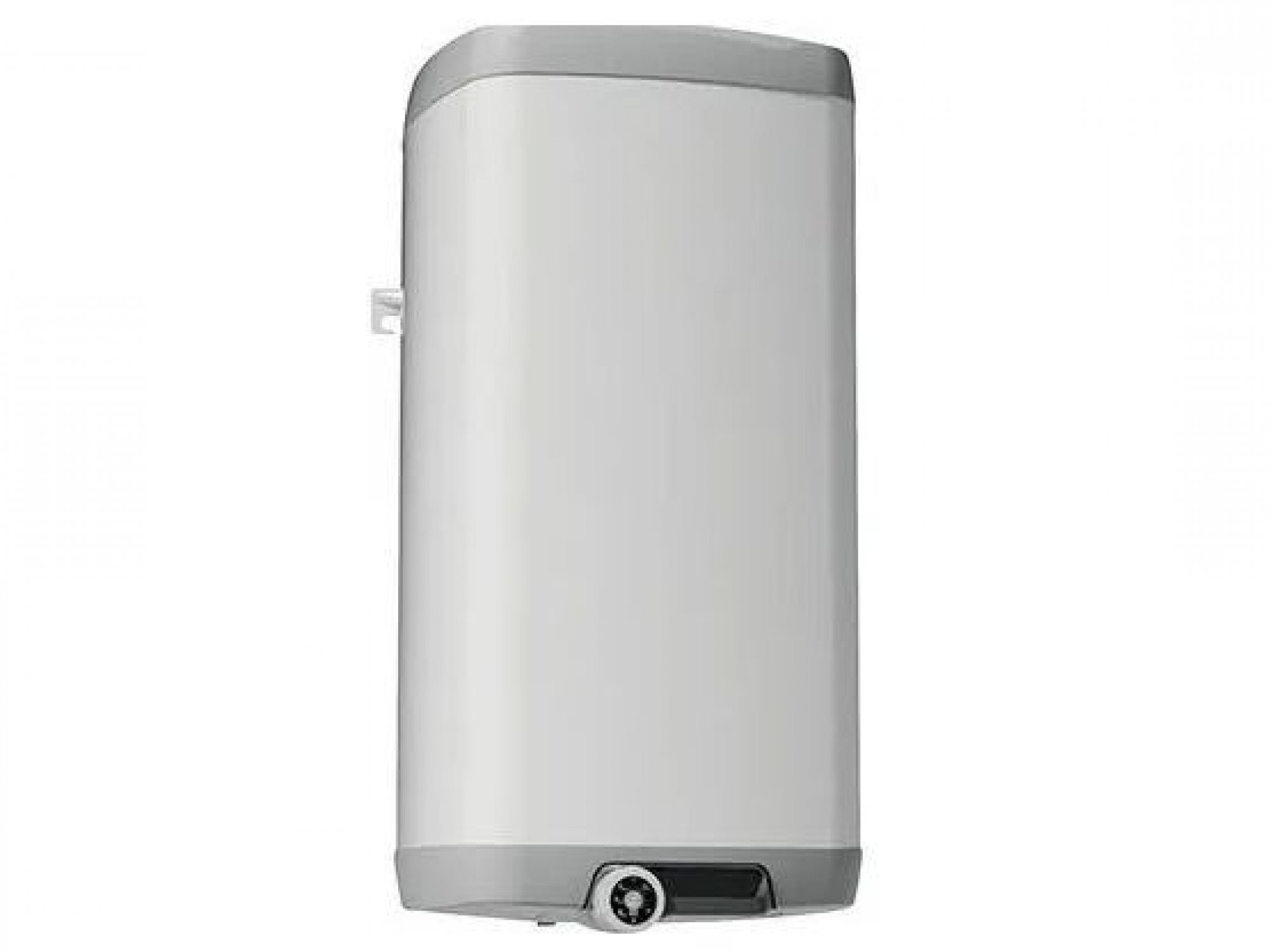

Electric square storage water heater DRAŽICE OKHE 160 SMART

Heater characteristics:

• Smart water heater with electronic thermostat E1 with the possibility of connection to a low-tariff switching signal (HDO), making use of the low tariff
• The SMART function adapts the operation of the heater exactly to your needs, allowing you to achieve even greater savings
• The heater is designed for the so-called accumulation heating of domestic water using electric energy
• Water is heated by an electric heating element in an enamelled, thermally insulated tank
• During heating, the element is controlled by the electronic thermostat E1, which allows several operating modes and offers a number of comfort functions
• The thermostat has a display, and settings are made using a keypad with five keys (arrows + OK)
• Once the selected temperature is reached, water heating is automatically interrupted

Low tariff switching (HDO):

• The controller keeps the heater at a constant, user-set temperature within the range of 5 to 65 °C only during the time when a low electricity price tariff is detected

Smart HDO:

• A boiler connected to the low-tariff signal heats the water, but if it detects that it was not consumed during the whole day, it lowers the temperature the following day
• Conversely, if all the heated water was consumed, it increases the temperature, and this whole process repeats until consumption matches the heat accumulated in the heater

Technical parameters:

• Water heater design: storage tank
• Volume: 155 l
• Installation position: vertical
• Heating type: electric
• Installation type: wall-mounted
• Heating time from 15°C to 65°C: 5 h
• Heat losses: 1.05 kWh/24 h
• Width: 52 cm
• Height: 123 cm
• Depth: 55 cm
• Weight: 57 kg

Frequently Asked Questions

• What tank volume should I choose? A common estimate of consumption is based on approx. 40-50 liters of hot water (at approx. 40-45 °C) per person per day for standard use (showering, washing); if bathing in a tub or with a higher number of bathrooms/outlets, a larger volume should be considered. When choosing, also take into account whether the tank will be heated by a high-output boiler (faster heating, a smaller volume may be sufficient) or, for example, only by a solar system (where, on the contrary, a larger volume is worthwhile for accumulating heat throughout the day).
• Can I connect this DRAŽICE tank to an existing boiler? In most cases yes, but you should check the compatibility of the hydraulic connection (dimensions and type of connections) and whether your boiler supports control of the tank heating (a temperature sensor in the tank and possibly a switching valve are needed) - you can find these details in the product's technical parameters, or our customer service can advise you.
• Where and how is the tank placed? The tank should be placed as close as possible to the heat source (boiler) to minimize heat losses in the connecting piping, while also leaving enough space around it for service access (anode replacement, safety valve inspection).
• Does the installation have to be done by a professional? We always recommend entrusting the hydraulic connection to the water supply and the heat source, including fitting the safety valve set to the correct pressure, to a heating engineer/plumber - an incorrectly fitted or missing safety valve represents a safety risk.
