Dražice OKHE 160
Code: 140610801Related products
Product detailed description

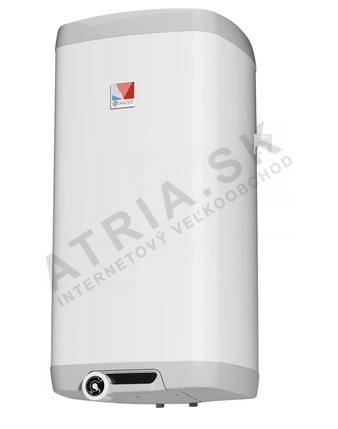

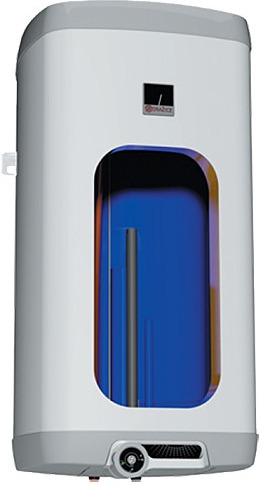

Electric rectangular water heater, boiler Dražice OKHE 160 for water heating
Use: Electric accumulation wall-mounted vertical boiler designed for multiple draw-off points for heating water with electric energy
Suitable as a source of hot water for family houses, apartments, hostels, and places with a need for a larger amount of hot water.
Possibility of preparing hot water using a lower electricity tariff - night current. Suitable for a family of two or more members. Suitable for humid environments. Vertical installation on the wall - upright. Wide range of use.
Features and advantages:
- Electric accumulation heaters, designed for wall mounting, with volumes of 80–160 liters

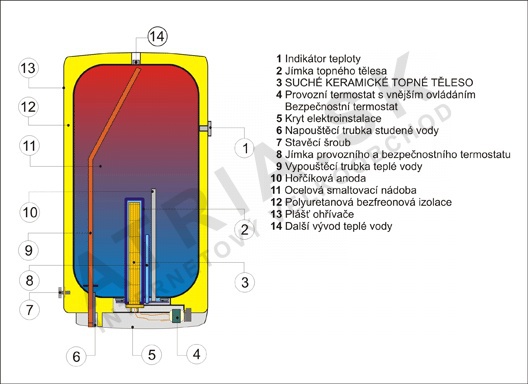

- Heating is provided by a ceramic heating element, controlled by an operating thermostat and secured by a safety thermostat (thermal fuse).
- Temperature range 5–74 °C. Electrical protection rating IP 45.
- Strong polyurethane insulation (average 55 mm), very low heat losses.
- attractive design
- adjustable hanging height
- temperature setting lock
- Hot water preparation in buildings with the possibility of using a low electricity tariff (night current).
Accessories: Safety valve
Product tested according to the highest quality standards
| Type | OKHE 80 | OKHE 100 | OKHE 125 | OKHE 160 |
|---|---|---|---|---|
| Volume [l] | 80 | 100 | 125 | 152 |
| Nominal pressure [MPa] | 0.6 | 0.6 | 0.6 | 0.6 |
| Voltage [V] | 230 | 230 | 230 | 230 |
| Power input [W] | 2 000 | 2 000 | 2 000 | 2 000 |
| Electrical protection rating | IP 45 | IP 45 | IP 45 | IP 45 |
| Heater height [mm] | 742 | 887 | 1 052 | 1 237 |
| Heater width [mm] | 520 | 520 | 520 | 520 |
| Max. weight without water [kg] | 37 | 42 | 49 | 57 |
| Heating time with electric energy from 10 °C to 60 °C [h] | 2.5 | 3 | 3.8 | 5 |
| Heat losses/energy efficiency class [kWh/24 h] | 0.55/B | 0.7/B | 0.87/B | 1.05/B |
Frequently Asked Questions
- What tank volume should I choose? A common consumption estimate is based on approximately 40-50 liters of hot water (at around 40-45 °C) per person per day for standard use (showering, washing); when bathing in a tub or with more bathrooms/outlets, a larger volume should be considered. When choosing, also take into account whether the tank will be heated by a high-output boiler (faster heating, a smaller volume may suffice) or, for example, only by a solar system (where, on the contrary, a larger volume is worthwhile for accumulating heat during the day).
- Can I connect this DRAŽICE tank to an existing boiler? In most cases yes, but you should check the compatibility of the hydraulic connection (dimensions and type of connections) and whether your boiler supports control of the tank heating (a temperature sensor in the tank and possibly a switching valve are needed) - you can find these details in the product's technical parameters, or our customer service can advise you.
- Where and how is the tank installed? The tank should be placed as close as possible to the heat source (boiler) to minimize heat losses in the connecting piping, while also allowing sufficient space around it for service access (anode replacement, safety valve inspection).
- Must the installation be done by a professional? We always recommend entrusting the hydraulic connection to the water supply and heat source, including installing the safety valve at the correct pressure, to a heating technician/plumber - an incorrectly installed or missing safety valve represents a safety risk.
Additional parameters
| Category: | electric square water heaters - OKHE, OKHE SMART |
|---|---|
| Warranty: | 2 years |
| Weight: | 57 kg |
