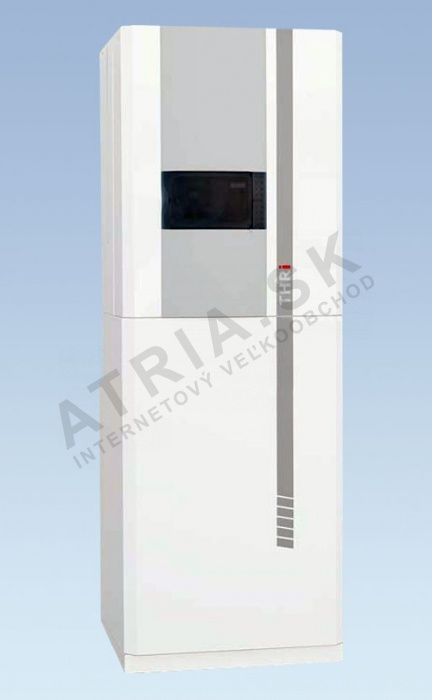

GEMINOX EUROSET 120 1-10 C
Code: NC-22300Product detailed description
Set contents:
- Condensing boiler: THRs 1-10 C
- Enamelled storage tank: MS 120
- Boiler/tank connection kit: KIT BS
- Outdoor sensor: QAC 34
THRs 1-10C - a boiler whose modulation range of 0.9 - 9.5 kW has no competition. Ideal for bungalows and low-energy family houses.
The THRs model range of condensing boilers represents already the fourth generation of Geminox condensing boilers. They are designed for use wherever achieving maximum comfortable thermal well-being and minimal operating costs is a clear priority.
The design of the THRs condensing boiler range builds on the previous THRi model range, which fully proved itself in operation in the most demanding markets and has long held first place in the demanding condensing-technology markets of Denmark, the USA, and Switzerland. Through careful development and the application of the latest knowledge in condensing technology, the boilers have become even more refined. Their technical parameters objectively place the THRs boilers in first place among economical appliances on the Slovak gas heating technology market.
New multifunctional Siemens LMS 14 control unit – AVS 37 boiler control interface – control of up to three outputs (circuits) – automatic recognition of hydraulic systems such as RVS – support for solar heating – USB input for a flash drive – just one clip needed to expand functions – backlit QAA75 room unit – wireless QAA78 room unit – two room units for the DC version – cascade control – OZV web server - low-energy pumps - mechanical pressure gauge - one universal DHW tank connection kit for all types (DC)
Advantages:
- According to European standard 92/42/EEC, THRS boilers are classified in the **** energy efficiency class
- Wide modulation range from 20–100% of output (10–100% for THRs 1-10)
- Top-class comfort – the integrated controller allows two heating circuits to be connected thanks to the CLIP-IN system (optional accessory); boilers can also be arranged in cascades (used mainly for the 10-50C)
- Very economical operation - efficiency up to 109.5% according to EN 92/42 EEC - gas savings of 25-40%
- Low NOx emissions (max. 40 mg/m3) and CO emissions (max. 20 mg/m3)
- Versatility – flue gases can be discharged via a chimney or via the TURBO system
- Long service life: a significant reduction in the number of switching cycles, use of austenitic stainless steel 318 FT for the most exposed parts of the boiler
- Simple operation and maintenance
- DHW heating comfort is provided by an integrated all-stainless-steel tank with a volume of 75 l, positioned either underneath the boiler (vertical version - "V" models) or beside it on the right (horizontal version - "H" models)
Additional parameters
| Category: | Geminox |
|---|---|
| Warranty: | 2 years |
| Product replaced by new one: | https://www.atria.sk/protherm-gepard-condens-12-mko-fe-120-bm-dolna-thermolink-p/ |
| The item has been sold out… | |
Product rating
Be the first who will post an article to this item!
Discussion
List of discussions
S
stano
stano
Ktory kotol ma v zasobniku aj 2kw el.spiralu. DAKUJEM
A
atria
atria
Dobrý deň, žiadny kotol. Je potrebné si kúpiť samostatný kotol a samostatný zásobník a do neho špirálu. Zásobník je potrebné mať s jednou špirálou a s jedným hadom na pripojenie kotla. Skúste si pozrieť niektorí z týchto : https://www.atria.sk/vykurovacia-technika/zasobniky-a-bojlery/eliz/stacionarne-s-1-hadom/ Prajem pekný deň.
