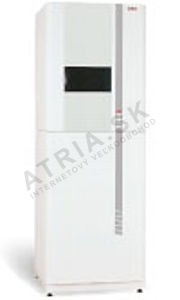

Geminox THRi 1-10 B 120
Code: NC-365Product detailed description
THRi B 120 – with integrated DHW tank
GeminoX brings to market a compact heating centre – a gas condensing stationary boiler with an under-mounted stainless steel tank with a volume of 120 l. The boiler is supplied in two versions – version C (one heating circuit) and version DC (two heating circuits), and in outputs of 0.9–9 kW, 2–17 kW and 5–25 kW. All the components needed for heating and water heating are integrated into it.
Standard equipment of THRi B 120:
- high-efficiency conical stainless-steel condensing heat exchanger
- all-stainless-steel DHW tank with a volume of 120 l with an anode, with polystyrene insulation
- all-stainless-steel circular modulating premix burner
- ionisation flame control
- 230 V fan with variable speed
- electronic control with permanent output modulation
- Siemens QAC 34 outdoor temperature sensor
- microprocessor control unit
- display showing operating or fault states
- high-voltage ignition transformer
- low-energy pump with controlled speed (class A)
- 8 l expansion tank
- three-way valve
- NTC DHW sensor
- 3 bar safety valve
- electronic pressure gauge
- condensate drain siphon
- boiler and tank drain valve
- preparation for circulation piping
- water fitting
- gas fitting
- height-adjustable feet
- Bioinibal 1 l
| Model | Order code |
Efficiency acc. to dir. 92/ 42 CE [%] |
Linear output modulation [kW] |
Tank volume [ℓ] |
Natural gas consumption at max. output [m3/h] |
Dimensions HxWxD [mm] |
Weight [kg] |
| THRi 1-10 B 120 | ZTIO4.C151 | 108,5 | 0,9 – 9,3 | 120 | 1,09 | 1745 × 600 × 660 | 141 |
| THRi 2-17 B 120 | ZTIO4.C191 | 108,5 | 2,4 – 17,4 | 120 | 1,79 | 1745 × 600 × 660 | 141 |
| THRi 2-17 B 120 DC | ZTIO4.C19D | 108,5 | 2,4 – 17,4 | 120 | 1,79 | 1745 × 600 × 660 | 147 |
Additional parameters
| Category: | with integrated cylinder |
|---|---|
| Warranty: | 2 years |
| Product replaced by new one: | https://www.atria.sk/protherm-tiger-condens-20-26-kkz-42/ |
| The item has been sold out… | |
