GEMINOX THRS Medium Set 120 1-10 C
Code: NC-22291Product detailed description

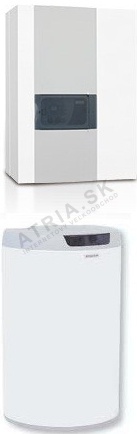

Package contents:
- Condensing boiler: THRs 1-10 C
- Enamelled tank: OKC 125
- Boiler/tank connection: KIT BS
- Outdoor sensor: QAC 34
THRs 1-10C - a boiler whose modulation range of 0,9 - 9,5 kW has no competition. Ideal for bungalows and low-energy family houses.
Condensing boilers in the THRs model line represent already the fourth generation of Geminox condensing boilers. They are intended for use wherever achieving maximum thermal comfort and minimal operating costs is a clear priority.
The design of the THRs condensing boiler model line builds on the previous THRi model line, which fully proved itself in operation in the most demanding markets and has long held first place in the demanding condensing technology markets of Denmark, the USA and Switzerland. Through careful development and the application of the latest know-how in condensing technology, the boilers have become even more refined. Their technical parameters objectively place THRs boilers first among economical appliances on the Slovak gas heating technology market.
New Siemens LMS 14 multifunctional control unit – AVS 37 boiler control interface – control of up to three outputs (circuits) – automatic recognition of hydraulic systems such as RVS – support for solar heating – USB input for flash memory – just one clip for extending functions – illuminated QAA75 room unit – wireless QAA78 unit – two room units in the DC version – cascade control – OZV web server - Low-energy pumps - Mechanical pressure gauge - One universal DHW tank connection kit for all types (DC)
Advantages:
- Under European standard 92/42/CEE, THRS boilers are classified in energy efficiency class ****
- Wide modulation range from 20-100 % of output (10-100 % for THRs 1-10)
- Top-class comfort – the integrated control allows connection of two heating circuits thanks to the CLIP-IN system, (optional accessory) the possibility of arranging boilers in cascades (used mainly for 10-50C)
- Very economical operation - efficiency of up to 109,5 % under EN 92/42 CEE - gas savings of 25-40%
- Low NOx emissions (max. 40 mg/m3) and CO emissions (max. 20 mg/m3)
- Versatility – flue gas discharge possible via chimney or TURBO system
- Long service life: significant reduction in the number of switching cycles, use of austenitic stainless steel 318 FT on the most exposed parts of the boiler
- Simple operation and maintenance
- DHW heating comfort is ensured by an integrated all-stainless-steel tank with a volume of 75 l, mounted either at the bottom of the boiler (vertical design - "V" models) or beside it on the right (horizontal design - "H" models)
Additional parameters
| Category: | Geminox |
|---|---|
| Warranty: | 2 years |
| Product replaced by new one: | https://www.atria.sk/protherm-gepard-condens-12-mko-fe-120-bm-dolna-thermolink-p/ |
| The item has been sold out… | |
