GEMINOX THRS Medium Set 120 5-25 C

Code: NC-22297
4 196,40 € –34 %
GEMINOX THRS Medium Set 120 5-25 C
4 196,40 € –34 % 2 741 € / pcs
Predaj skončil

Detailed information

Product detailed description

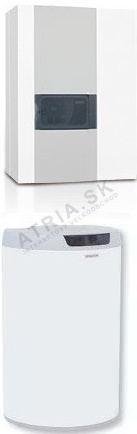

GEMINOX THRS Medium Set 120 5-25 C - Boiler and 120 litre enamelled storage tank kit
Set contents:
  • Condensing boiler: THRs 5-25 C
  • Mounted storage tank: OKC 125
  • Boiler/storage tank connection: KIT BS
  • External probe: QAC 34
THRs 1-10C - boiler with a power range of 4.8 - 23.9 kW.
The THRs model range represents the fourth generation of Geminox condensing boilers. They are designed wherever achieving maximum thermal comfort and minimum operating costs is a clear priority.
The design of the THR s model range of condensing boilers is based on the previous THRi model range, which has been fully proven in operation in the most demanding markets and has long held the number one position in the demanding condensing markets of Denmark, the USA and Switzerland. Through careful development and application of the latest knowledge in the field of condensing technology, this has made the boilers even more perfect. Their technical parameters objectively place the THRs boilers in the first place among energy-saving appliances on the Slovak market of gas heating technology.
New multifunctional control unit Siemens LMS 14– boiler control interface AVS 37– control of up to three outputs ( circuits)– automatic recognition of hydraulic systems such as RVS– support for solar heating– USB input for flash– only one clip for function expansion– Illuminated space instrument QAA75– wireless instrument QAA78– two space instruments on DC– cascade control– HVAC web server- Low energy pumps- Mechanical pressure gauge- One universal TV tank connection kit for all types (DC)
Advantages:
  • According to the European standard 92/42/CEE, THRS boilers are classified in the **** energy efficiency class
  • Wide range of modulation from 20–100% of output (10–100% for THRs 1-10)
  • Top class comfort – integrated control allows two heating circuits to be connected thanks to the CLIP-IN system, (optional accessory) possibility to sort the boilers into cascades (mainly used for 10-50C)
  • Very economical operation - efficiency up to 109.5% according to EN 92/42 CEE - gas savings 25-40%
  • Low NOx emissions (max. 40 mg/m3) and CO (max. 20 mg/m3)
  • Universality – possibility of flue gas exhaust through the chimney or TURBO system
  • Long service life: Significant reduction in the number of switching cycles, use of austenitic 318 FT stainless steel on the most exposed parts of the boiler
  • Easy operation and maintenance
  • The comfort of heating the TV is provided by an integrated all stainless steel tank with a capacity of 75 l, with storage either at the bottom of the boiler (ventral design - models "V") or next to the right (horizontal design - models "H")

Additional parameters

Category: Geminox
Warranty: 2 years
Produkt nahradený novým: https://www.atria.sk/protherm-gepard-condens-12-mko-fe-120-bm-dolna-thermolink-p/
