GEMINOX ZEM Inox Set 120 2-17 C

Product detailed description

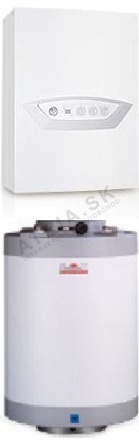

Condensing boiler in a set with tank and accessories - GEMINOX ZEM 2-17 Inox Set 120

Package contents:

• Condensing gas boiler: ZEM 2 - 17 C
• Stainless steel tank: MS 120
• Boiler / tank connection: KIT B
• Outdoor sensor: QAC 34
• QAA73 multifunctional room controller for ZEM: REG74

The boiler variant with an output range of 2,4 to 17,2 kW is designed for basic applications in apartments and new buildings. Its very low minimum output allows, unlike most competing products, optimal heating at the most common winter temperatures close to 0 °C. A sufficient maximum output then guarantees a high level of comfort when preparing hot water in an indirectly heated external tank

Features:

• Very simple operation
• Very simple installation
• New conical all-stainless-steel condensing heat exchanger
• Under European standard 92/42/CEE, ZEM boilers are classified in energy efficiency class ****
• Wide modulation range from 15–100 % of output
• Top-class comfort – the integrated Siemens LMU 34 control includes adaptive weather-compensated control
• Very economical operation
• Efficiency of up to 109,5 % under EN 92/ 42 CEE – gas savings of 25–40 %
• Low NOx emissions (class 5) and CO emissions (max. 20 mg/m3)
• Long service life: significant reduction of switching cycles
• Easy maintenance
• Versatility – flue gas discharge possible via chimney or TURBO system
• Standard-ready for connection of an external DHW tank – built-in 3-way valve + control electronics
• Fuel: natural gas

Technical parameters:

• Model: ZEM 2-17 C
• Efficiency under dir. 92/ 42 CE: 109,3 %
• Linear output modulation: 2,4 – 17,2 kW
• Natural gas consumption at max. output: 1,86 m3/h
• Dimensions HxWxD: 760 × 540 × 368 mm
• Weight: 37 kg
