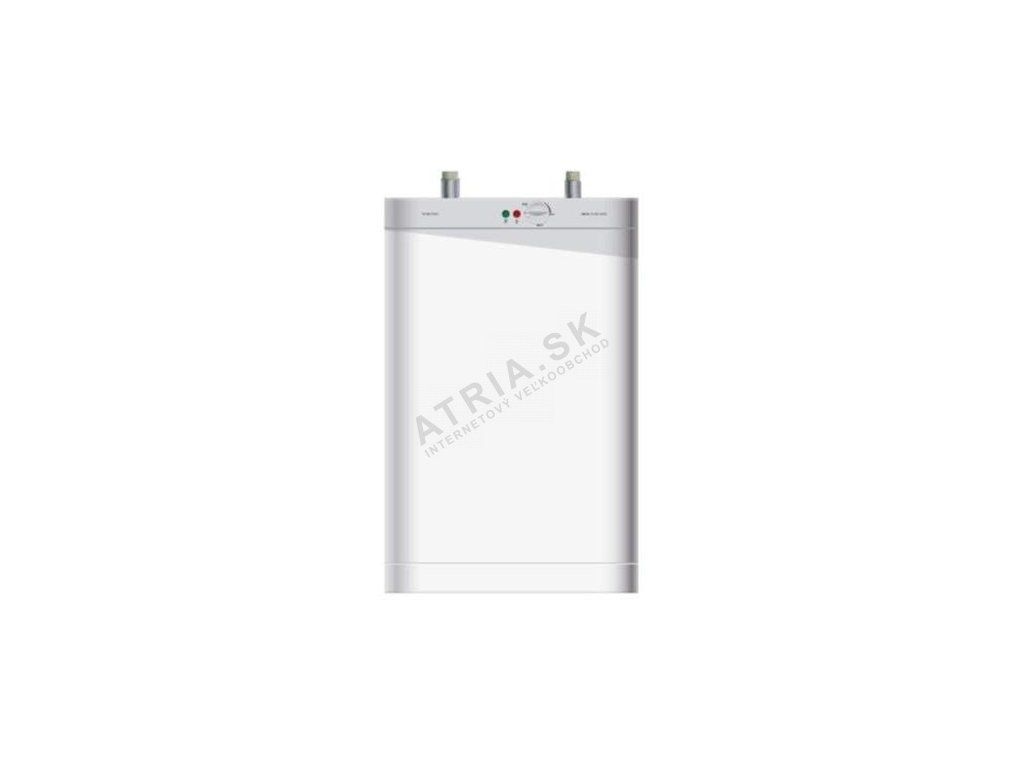

HAKL SLIM is manufactured in three power versions. The most powerful model heats water continuously even at a reduced rate. The model with the weakest output is suitable for installation on an electrical network with low protection. The required water heating temperature in the tank can be set using the thermostat, which also has a frost-protection function. The heater is intended for connection to a pressure-free HAKL water faucet supplied with installation accessories (seals, reducers, heater bracket...). The heater together with the pressure-free faucet can be installed on a domestic , a public water supply system, but also on a gravity feed with a water column higher than four metres.

Technical parameters:

Input: 1,2 kW
Fuse: 6 A
Voltage: 230 V
Volume: 6,5 l
Max. working overpressure: 0,02 MPa
Continuous water pressure: 0,00 MPa
Heating 2: 11 minutes

Additional data:

installation on HAKL water faucets
pressure-free operation 0 bar with switching from 0,2 MPa
thermostatic switching with regulation from 5°C to 75°C
manufactured in three power versions of the heating coil
long-life plastic tank
installation above/below a sink or washbasin
service, emergency and frost-protection thermal fuse

Main advantages of the HAKL SLIM model:

compared to the competition, several times faster reheating - only 4 minutes and you have 55°C hot water
a heater with an output of 1,2 kW can also be connected to a supply with the weakest fuse protection - 6 Amp
the heater tank is made of plastic, which significantly extends the life of the heater. The material from which the tank is made meets strict hygiene and safety regulations;
Elastopor insulation has good insulating properties that minimise heat loss. The heater is classified in appliance class A;
thanks to its dimensions, the heater can be installed almost anywhere. Under a washbasin or into a kitchen unit, above a washbasin with a mirror or into an upper bathroom cabinet. If space is lacking, the heater can be mounted on the ceiling.
the SLIM 136 model at a flow rate of 1,8/min heats water to 40°C

Operating the heater:

The electric water heater works on the principle of a storage heater, after the hot water in the tank is used up, the heating element heats the water to the required temperature after a certain time - see the parameters table. Water heating is indicated by a red HEATING light on the heater cover. The second, green NETWORK light indicates a functional thermal fuse and the presence of voltage. HAKL SLIM pressure-free water heaters also work reliably when connected to a gravity feed of up to approx. three metres of water column. The heaters are suitable as an additional source of hot water e.g. in a family house, garage, cottage, factories, offices, etc. They are installed exclusively on the cold water supply, always in combination with a low-pressure faucet supplied by the manufacturer.
