HAKL SLIM 3,6 kW - bottom-connected heater
Code: HASLIM136SRelated products
Product detailed description

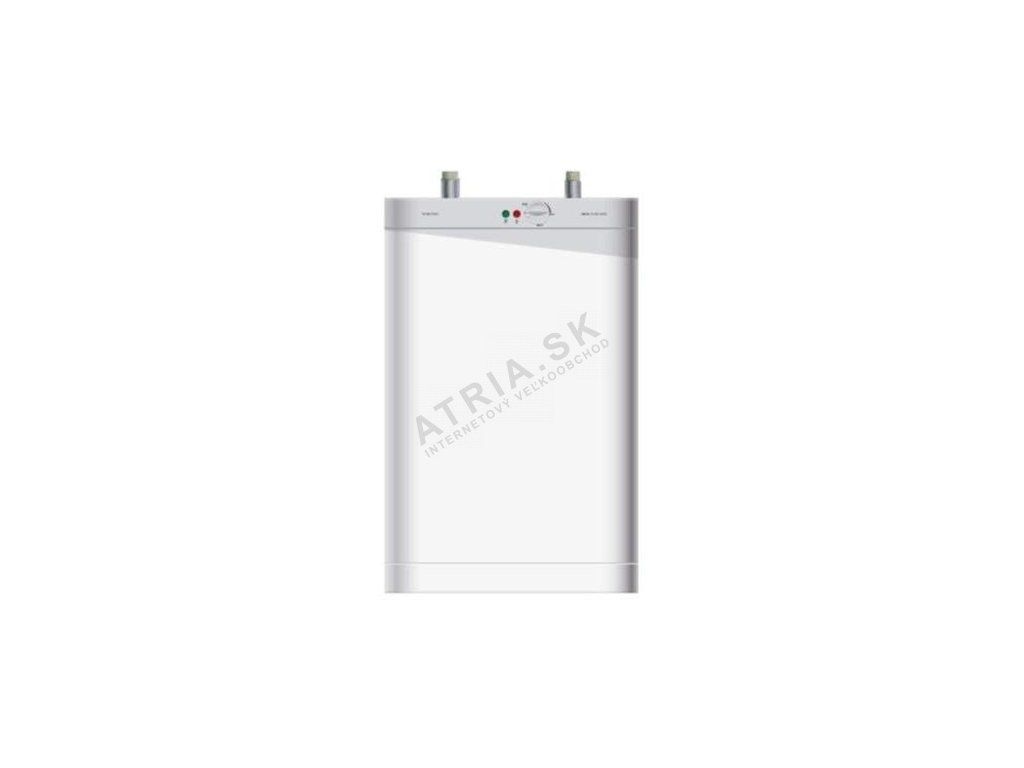

Electric instantaneous water heater HAKL SLIMs 3,6 kW 6,5 l. bottom
The heater is not supplied with a faucet.
HAKL SLIM is manufactured in three power versions. The most powerful model heats water continuously even at a reduced flow rate. The model with the weakest output is suitable for installation on an electrical network with low fuse protection. The required water heating temperature in the tank can be set using the thermostat, which also has a frost-protection function. The heater is intended for connection to a pressure-free HAKL water faucet supplied with installation accessories (seals, reducers, heater bracket...). The heater together with the pressure-free faucet can be installed on a domestic pump, a public water supply system, but also on a gravity feed with a water column higher than four metres.
Technical parameters:
- Input: 3,6 kW
- Fuse: 16 A
- Voltage: 230 V
- Volume: 6,5 l
- Max. working overpressure: 0,02 MPa
- Continuous water pressure: 0,00 MPa
- Heating 2: 3 minutes
Additional data:
- installation on HAKL water faucets
- pressure-free operation 0 bar with switching from 0,2 MPa
- thermostatic switching with regulation from 5°C to 75°C
- manufactured in three power versions of the heating coil
- long-life plastic tank
- installation above/below a sink or washbasin
- service, emergency and frost-protection thermal fuse
Main advantages of the HAKL SLIM model:
- compared to the competition, several times faster reheating - only 4 minutes and you have 55°C hot water
- a heater with an output of 1,2 kW can also be connected to a supply with the weakest fuse protection - 6 Amp
- the heater tank is made of plastic, which significantly extends the life of the heater. The material from which the tank is made meets strict hygiene and safety regulations;
- Elastopor insulation has good insulating properties that minimise heat loss. The heater is classified in appliance class A;
- thanks to its dimensions, the heater can be installed almost anywhere. Under a washbasin or into a kitchen unit, above a washbasin with a mirror or into an upper bathroom cabinet. If space is lacking, the heater can be mounted on the ceiling.
- the SLIM 136 model at a flow rate of 1,8/min heats water to 40°C
Operating the heater:
The electric water heater works on the principle of a storage heater, after the hot water in the tank is used up, the heating element heats the water to the required temperature after a certain time - see the parameters table. Water heating is indicated by a red HEATING light on the heater cover. The second, green NETWORK light indicates a functional thermal fuse and the presence of voltage. HAKL SLIM pressure-free water heaters also work reliably when connected to a gravity feed of up to approx. three metres of water column. The heaters are suitable as an additional source of hot water e.g. in a family house, garage, cottage, factories, offices, etc. They are installed exclusively on the cold water supply, always in combination with a low-pressure faucet supplied by the manufacturer.
Additional parameters
| Category: | SLIM Series |
|---|---|
| Warranty: | 2 years |
| The item has been sold out… | |
Product rating
The average product rating is 5,0 out of 5 stars.
1 rating
5
4
3
2
1
Leave a rating
List of ratings
5
E
Erik
Erik
Zatiaľ všetko ok
DS
Dorota Sugarova
(Administrator)
Dorota Sugarova
(Administrator)
To sme radi :)
Discussion
List of discussions
R
Roman
Roman
Dobrý deň, je model vhodný na zapojenie klasickej batérie so sprchou ? Nie pákovej. Potrebujem riešiť teplú vodu pre umývadlo v záhrade a na príležitostnú sprchu.
A
ATRIA
ATRIA
Dobrý deň, áno tento ohrievač môžete dať na klasickú batériu. Pekný deň
I
Ivan
Ivan
Dobrý deň. Aký je rozdiel medzi batériami - Páková beztlaková vodovodná batéria PM HAKL a HAKL drezová páková batéria SLIM? Podľa obrázka vyzerajú byť rovnako. Je tam nejaký rozdiel v rozmeroch?? Ďakujem!
A
ATRIA
ATRIA
Dobrý deň. V prípade, že je Vás ohrievač zásobníkový ,môžete použiť batériu Slim. Ak je prietokový ohrievač tak potom batériu PM. Ale je dôležité uvedomiť si, že batérie sú navrhnuté ohrievače Hakl. Pekný deň
I
Ivan
Ivan
Dobrý deň. Ďakujem Vám za odpoveď. Pýtam sa preto lebo mám ohrievač Tatramat EO 5 N s klasickou batériou, ktorú chcem vymeniť za pákovu. A táto, ktorú máte v ponuke, sa mi dosť pozdáva. Avšak sú tu dva typy. Hakl pákova batéria PM a Hakl páková batéria SLIM. Obe majú v popise, že sú určené pre beztlakové ohrievače, ale je medzi nimi cenový rozdiel. Podľa obrázka a popisu sa ťažko určí, ktorá by bola vhodnejšia. Je medzi nimi nejaký zásdný rozdiel v konštrukcii?
A
ATRIA
ATRIA
Dobrý deň. V konštrukcií vnútra. Niektoré ohrievače vyžadujú beztlakové batérie. Pekný deň.
