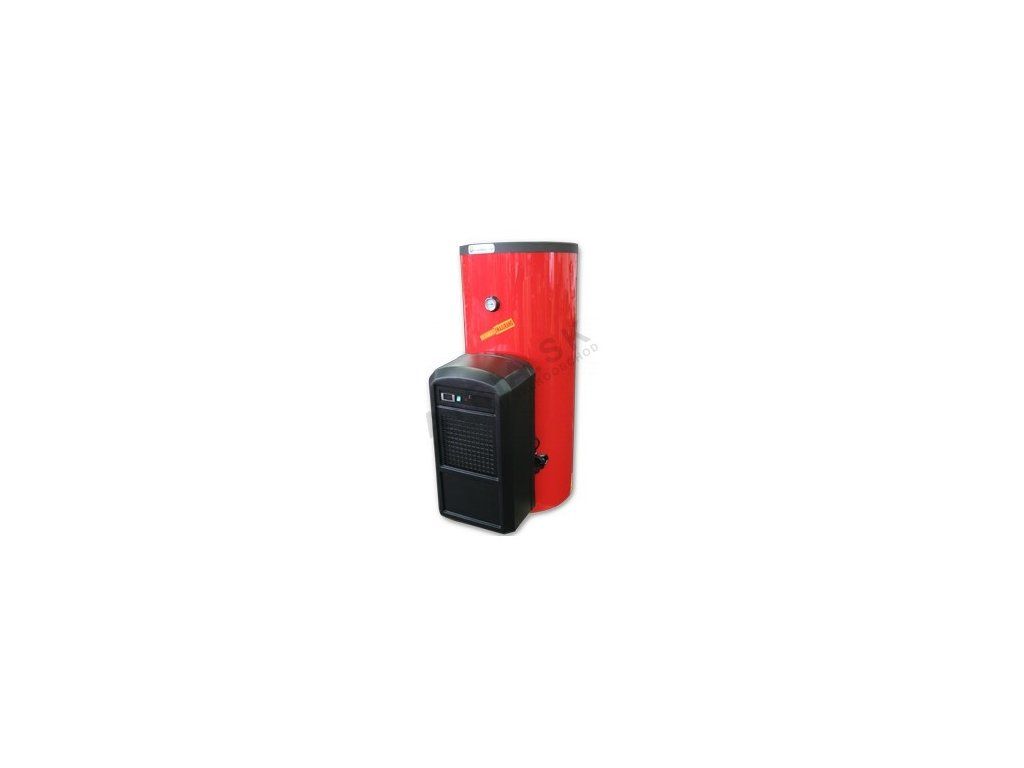

    Heat Pump HPW - Lentherm ECO 204

    Code: NC-28274
    Not rated Rating details
    1 929,20 € –26 %
    Heat Pump HPW - Lentherm ECO 204
    1 929,20 € –26 % 1 410 € / pcs Measure price:
    Sale ended or currently unavailable
    The item has been sold out…

    Detailed information

    Product detailed description

    Heat Pump HPW - Lentherm ECO 204



    Heat pump with the option to use two built-in coils.

    Contains 2 heat exchangers.



    Technical parameters and features:

    ECO 204

    ECO 3R 304




    Tank capacity

    199 L

    288 L



    Suitable for number of people

    2 - 3 people

    2 - 6 people



    Number of coils in the tank for connecting other DHW heat sources

    number of coils

    number of coils



    2

    2



    Max. temperature reached when heating via heat pump only

    55°C

    65°C



    COP (heat factor) at 15°C

    3,4

    3,5



    Electric heating coil

    2,0 kW

    2,0 kW



    Power supply

    10A / 230V

    16A / 230V



    Anti-corrosion protection

    Magnesium anode

    Magnesium anode



    Tank material

    vacuum-enamelled steel

    vacuum-enamelled steel



    Air flow

    700m³/hod

    700m³/hod



    Refrigerant type

    R 314a

    R 407c



    Weight without water

    141kg

    164kg



    Dimensions: diameter x height

    550 x 1538

    650 x 1530



    Heat exchanger surface, lower / upper

    1,06m² / 0,53m²

    1,45m² / 0,93m²



    Max. working pressure: pump / heat exchanger

    1,0MPa/1,2MPa

    1,0MPa/1,2MPa





    Additional parameters

    Category: HPW Lentherm
    Warranty: 2 years
