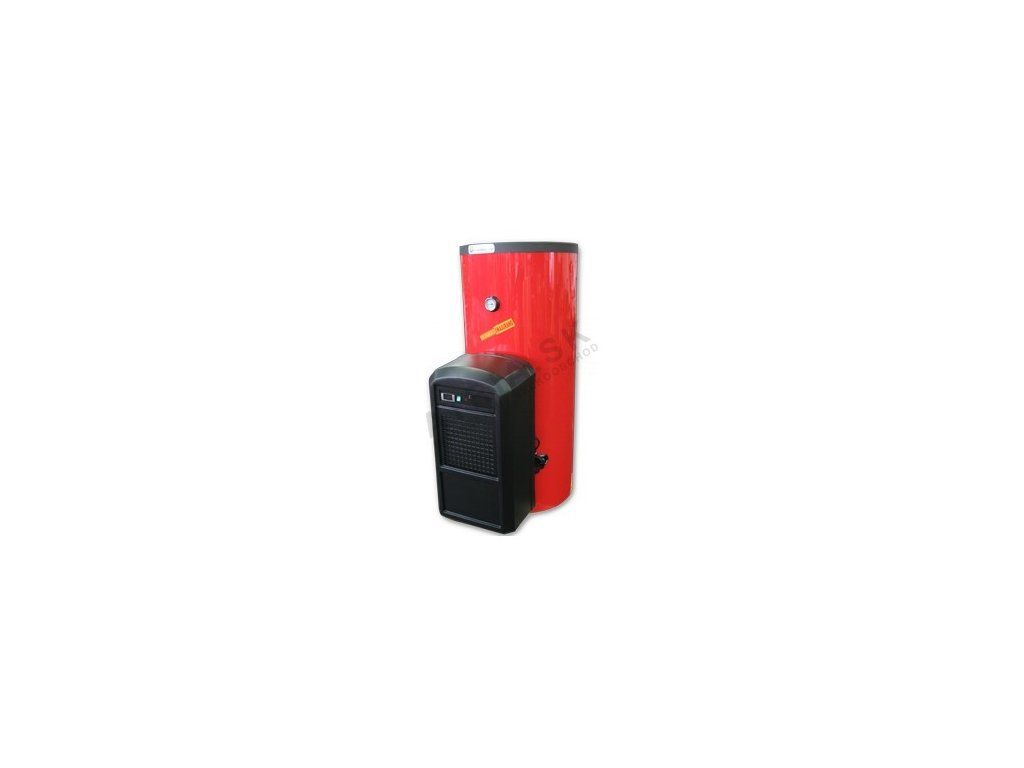

Heat Pump HPW - Lentherm ECO 2PL 200
Code: NC-28272Product detailed description
Heat Pump HPW - Lentherm ECO 2PL 200
Heat pump for use with all types of boilers, or as a free-standing tank in combination with solar collectors.
Contains 1 heat exchanger.
Technical parameters and features: | ECO 2PL 200 | ECO 3R 300 | |
Tank capacity | 199 L | 288 L | |
Suitable for number of people | 2 - 3 people | 2 - 6 people | |
Number of coils in the tank for connecting other DHW heat sources | number of coils | number of coils | |
1 | 1 | ||
Max. temperature reached when heating via heat pump only | 55°C | 65°C | |
COP (heat factor) at 15°C | 3,4 | 3,5 | |
Electric heating coil | 2,0 kW | 2,0 kW | |
Power supply | 10A / 230V | 16A / 230V | |
Anti-corrosion protection | Magnesium anode | ||
Tank material | vacuum-enamelled steel | ||
Air flow | 700m³/hod | 700m³/hod | |
Refrigerant type | R 314a | R 407c | |
Weight without water | 141kg | 164kg | |
Dimensions: diameter x height | 550 x 1538 | 650 x 1530 | |
Heat exchanger surface | 1,06m² | 1,45m² | |
Max. working pressure: pump / heat exchanger | 1,0MPa/1,2MPa | 1,0MPa/1,2MPa |
Additional parameters
| Category: | HPW Lentherm |
|---|---|
| Warranty: | 2 years |
| The item has been sold out… | |
