    Heat pump HPW - Lentherm ECO 2Z 300

    Code: NC-28269
    Not rated Rating details
    2 260,70 € –26 %
    Heat pump HPW - Lentherm ECO 2Z 300
    2 260,70 € –26 % 1 652 € / pcs Measure price:
    Sale ended or currently unavailable
    The item has been sold out…

    Detailed information

    Product detailed description

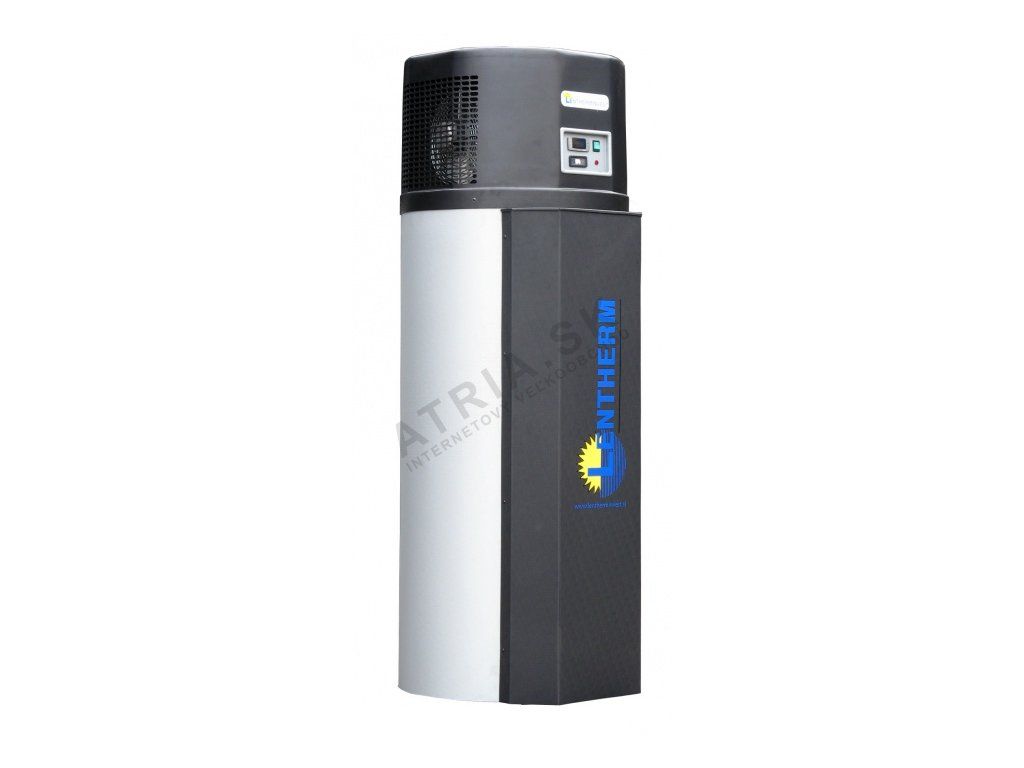

    HPW - Lentherm ECO 2Z 300 heat pump



    A heat-pump cylinder that can be combined with all types of boilers, or used as a free-standing cylinder together with solar collectors.

    Contains 1 coil.





    Technical parameters and features:

    ECO  2Z 200

    ECO  2Z 300

    ECO  3RZ 300

    ECO  3RZ 300VZ




    Cylinder volume

     200 L

    285 L

    285 L

    285 L



    Suitable for number of persons

     2 – 3 people

    2 - 6 people

    2 - 6 people

    2 - 6 people



    Number of coils in the cylinder for connecting other DHW heat sources

    number of coils

    number of coils

    number of coils

    number of coils



    1

    1

    1

    1



    Max. temperature reached when heating via the heat pump only

    55°C

    55°C

    65°C

    65°C



    Coefficient of performance at 15°C

    3,4

    3,4

    3,5

    3,5



    Electric heating coil

    2,0 kW

    2,0 kW

    2,0 kW

    2,0 kW



    Electrical supply

    10A / 230V

    10A / 230V

    16A / 230V

    16A / 230V



    Anti-corrosion protection

    Magnesium anode

    Magnesium anode

    Magnesium anode

    Magnesium anode



    Cylinder material

    vacuum-enamelled steel

    vacuum-enamelled steel

    vacuum-enamelled steel

    vacuum-enamelled steel



    Air flow rate

    700m³/hr

    700m³/hr

    700m³/hr

    700m³/hr



    Refrigerant type

    R 314a

    R 314a

    R 407c

    R 407c



    Weight without water

    145kg

    164kg

    164kg

    164kg



    Dimension: diameter x height

    650 x 1462

    650 x 1818

    650 x 1818

    650 x 1818



    Coil surface area

    1,4m²

    1,4m²

    1,4m²

    1,4m²



    Max. working pressure: pump / heat exchanger

    1.0MPa/1.2MPa

    1.0MPa/1.2MPa

    1.0MPa/1.2MPa

    1.0MPa/1.2MPa







    Additional parameters

    Category: HPW Lentherm
    Warranty: 2 years
