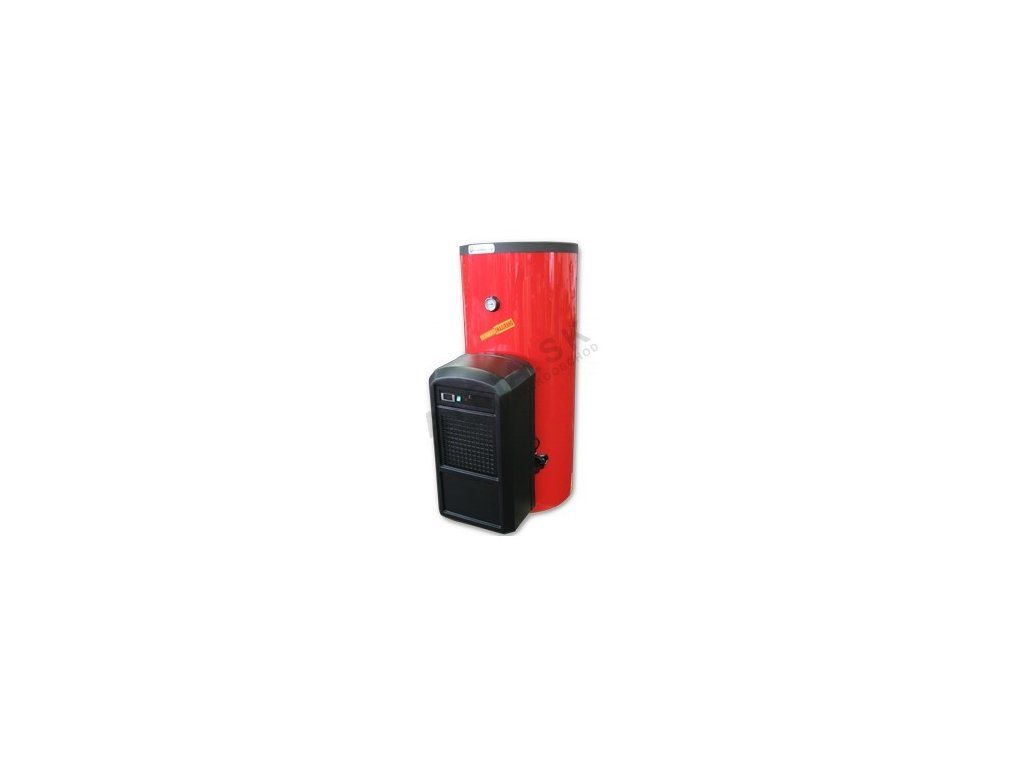

Heat Pump HPW - Lentherm ECO 3R 304
Code: NC-28275Product detailed description
Heat Pump HPW - Lentherm ECO 3R 304
Heat pump with the option to use two built-in coils.
Contains 2 heat exchangers.
|
Technical parameters and features: |
ECO 204 |
ECO 3R 304 |
|
|
Tank capacity |
199 L |
288 L |
|
|
Suitable for number of people |
2 - 3 people |
2 - 6 people |
|
|
Number of coils in the tank for connecting other DHW heat sources |
number of coils |
number of coils |
|
|
2 |
2 |
||
|
Max. temperature reached when heating via heat pump only |
55°C |
65°C |
|
|
COP (heat factor) at 15°C |
3,4 |
3,5 |
|
|
Electric heating coil |
2,0 kW |
2,0 kW |
|
|
Power supply |
10A / 230V |
16A / 230V |
|
|
Anti-corrosion protection |
Magnesium anode |
||
|
Tank material |
vacuum-enamelled steel |
||
|
Air flow |
700m³/hod |
700m³/hod |
|
|
Refrigerant type |
R 314a |
R 407c |
|
|
Weight without water |
141kg |
164kg |
|
|
Dimensions: diameter x height |
550 x 1538 |
650 x 1530 |
|
|
Heat exchanger surface, lower / upper |
1,06m² / 0,53m² |
1,45m² / 0,93m² |
|
|
Max. working pressure: pump / heat exchanger |
1,0MPa/1,2MPa |
1,0MPa/1,2MPa |
Additional parameters
| Category: | HPW Lentherm |
|---|---|
| Warranty: | 2 years |
| The item has been sold out… | |
