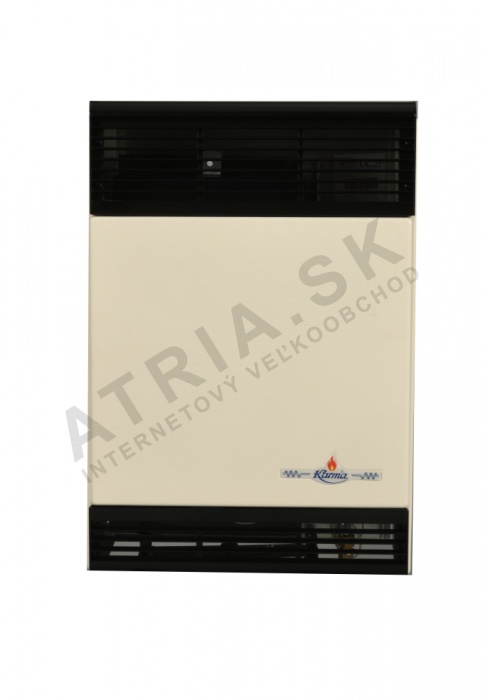

Karma Beta 2 Mechanic

Product detailed description

• stove output 2 kW
• suitable for rooms up to 40 m3 in volume
• automatic maintenance of room temperature without the need for further operation
• mechanical temperature regulation in the range 13-38°C
• does not require an electrical connection
• frost resistance of the stove
• high stove efficiency (higher than heating systems with a boiler)
• independence of the stove
• piezoelectric ignition
• permanent pilot flame
• high operating safety
• flame safety fuse
• gas-tight combustion chamber made of steel sheet
• combustion chamber walls enamelled on both sides
• stainless steel gas burner
• gas valve SIT 630 EUROSIT
• wall-mounted installation
• combustion circuit gas-tightly separated from the room environment
• combustion air is drawn in from the outside
• flue gas is discharged through the outer wall via an opening with a diameter of 122 mm
• stove casing made of steel sheet protected by special powder coating
• maximum wall thickness 82 cm
• factory setting for natural gas
• can be set up for propane-butane
• 24-month warranty
• the flue outlet part cannot be placed on sloped roofs
• fixing material and parts for hanging the stove on the wall
• outer cover basket
• complete flue outlet assembly
• wall flue outlet pipes, length 60 cm (a length of up to 82 cm can be ordered)



Dimensions:



• A = 416 mm
• B = 267 mm
• C = 188 mm











Technical data	Karma Beta 2 Mechanic
Output (kW)	2
Colour	ochre, brown, white
Weight (kg)	15
Colour of grilles on the heating body	black
Colour of outer basket	unpainted aluminium
Temperature selector	13 to 38 °C
Electrical connection / power input	not required
Gas connection	G 1/2
Efficiency (%)	87%
Outer dimensions	416 x 215 x 600
Consumption - natural gas (m3 / h)	0.24
Consumption - propane butane (m3 / h)	0.18
Centre of flue outlet from left edge (mm)	149
Diameter of wall flue outlet (mm)	122

Note:


Price shown without the flue outlet (can be ordered separately):

• Wall flue outlet 60 cm - VYD60
• Wall flue outlet 82 cm - VYD82
