Karma BETA 4C 02
Code: BETA 4C 02Product detailed description
Karma Beta 4 Comfort 02

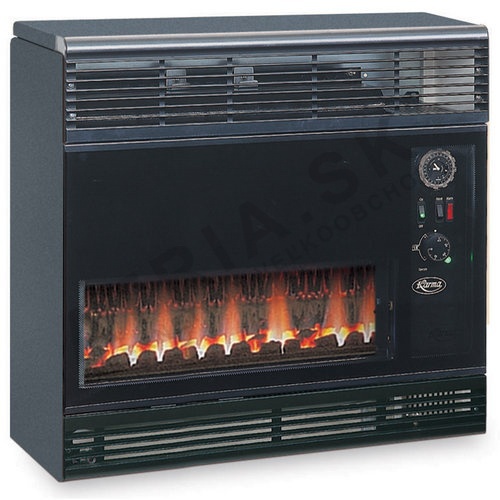

Under-window gas stove fitted with dark tinted glass in the front part of the casing. The design of the casing and combustion chamber, complemented by an imitation of coal above the burner, allows a view of the blazing fire. A special ceramic mass in the firebox gives the flames the appearance of burning coal. The stove has very simple operation, and the flue is led out through the wall. The stove output is 3.9 kW and the set temperature is maintained automatically. The stove is equipped with an electronic control system that ignites the burner, regulates the gas supply and monitors the flame and all functions affecting the stove's operation and safety. Thanks to electronic control, it is possible to achieve gas savings of up to 25% compared to the BETA Mechanic. In standby mode, the BETA Comfort has ZERO gas consumption, and unlike the BETA Mechanic stove it has no permanent pilot light. It is not equipped with its own switching clock, and is connected to a suitable room thermostat - several stoves can be connected to one thermostat.
It withstands temperatures below freezing point.
Advantages:
- stove output 3.9 kW
- stove suitable for a room with a volume of up to 80 m³
- automatic temperature maintenance in the range 0 - 40 degC
- no built-in switching clock
- stove resistance to freezing
- glazed front panel with a view of the firebox
- high stove efficiency (higher than boiler-based heating systems)
- independence of the stove
- high operating safety
- gas-tight combustion chamber made of steel sheet
- double-sided enamelled combustion chamber walls
- stainless steel gas burner
- gas valve SIT 840 SIGMA
- mounted by hanging on the wall
- combustion circuit gas-sealed and separated from the room environment
- combustion air is drawn in from outside
- flue gases are led out through the outer wall via a 122 mm diameter opening
- stove casing made of steel sheet protected by special powder coating
- maximum wall thickness 82 cm
- factory set for natural gas
- can be converted to propane-butane
- the flue outlet part cannot be placed on sloped roofs
- fixing material and parts for mounting the stove on the wall
- outer protective cage
- complete flue outlet assembly
- through-wall flue pipe, length 60 cm (a length of up to 82 cm can be ordered)
Dimensions:
- A = 670 mm
- B = 391,5 mm
- C = 312,5 mm
| Technical data | Karma Beta 4 Comfort 02 |
| Output (kW) | 3,9 |
| Electrical protection rating | IP 20 |
| Weight (kg) | 23 |
| Grille colour on the heating body | anthracite + black glass |
| Outer cage colour | unpainted aluminium |
| Temperature selector | 0 to 40 °C |
| Electrical connection / power input | 230 V/9,4 W |
| Gas connection | G 1/2 |
| Efficiency (%) | 87 % |
| Outer dimensions | 670 x 215 x 600 |
| Consumption - natural gas (m3/h) | 0,43 |
| Consumption - propane-butane (m3/h) | 0,32 |
| Centre of the flue outlet from the left edge (mm) | 278 |
| Through-wall flue diameter (mm) | 122 |
Note:
Price shown without the flue outlet (can be ordered separately):
Frequently Asked Questions
- How do I choose the right output for a KARMA gas stove? Just as with gas boilers, base your choice on the calculated heat loss of the heated space. For electric heaters it is also essential to check whether your home's electrical connection can support it - higher outputs (roughly above 12 kW) usually require a three-phase 400 V connection and a correspondingly sized main circuit breaker, which your electrical inspector or the electricity distributor can confirm.
- Is an electric boiler worth it compared to a gas or solid-fuel boiler? An electric boiler has the lowest purchase price and the simplest installation (no flue is needed, since nothing is combusted), but running costs on electricity are usually higher than gas or wood/coal for the same amount of delivered heat. It is best suited where gas is not available, as a supplementary/backup source, or for a low-consumption building (well-insulated new builds, cottages, apartments).
- How does an electric boiler regulate output? Most models switch the individual heating elements on/off in stages, while some more modern models also allow smoother output modulation - this affects heating smoothness and, to some extent, the lifespan of the switching components.
- Can I install this electric boiler myself? Connection to the electrical grid, inspection and commissioning must be carried out by a person with electrical qualification in accordance with the applicable STN 33 2000 standard and related regulations - self-installation is not permitted, either for warranty reasons or for safety reasons.
- Can this electric boiler also heat domestic hot water? For many models, yes - usually in combination with a separate hot water tank and a switching (3-way) valve that switches between the heating circuit and heating the tank. You can find the exact option and required accessories for this specific model in the technical parameters above, or consult our customer service.
Additional parameters
| Category: | Beta Comfort |
|---|---|
| Warranty: | 2 years |
| Weight: | 10 kg |
| Flue outlet through wall: | 60 cm |
| Maximum wall thickness: | 82 cm |
| Stove heat output: | 3,9 kW |
| Wall Flue Pipe Length: | 60 cm |
