Karma Gamat S 50
Code: GAMAT S 50Product detailed description

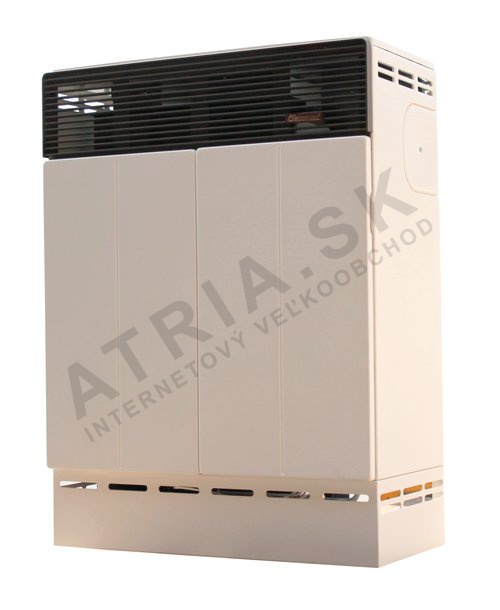

Gas stove Karma Gamat S 50
Convection stove Gamat S50 with an output of 5.3 kW. This is an appliance with an open combustion chamber, designed for connection to a chimney with natural draught; combustion air is drawn in from the room in which it is installed.
Advantages:
-
stove output 5.3 kW
-
suitable for rooms with a volume of up to 100 m³
-
thermostat temperature control
-
resistant to freezing
-
high stove efficiency
-
high operating safety
-
enamelled heat exchanger
-
chimney sensor (microswitch) - backdraught safety cut-off
-

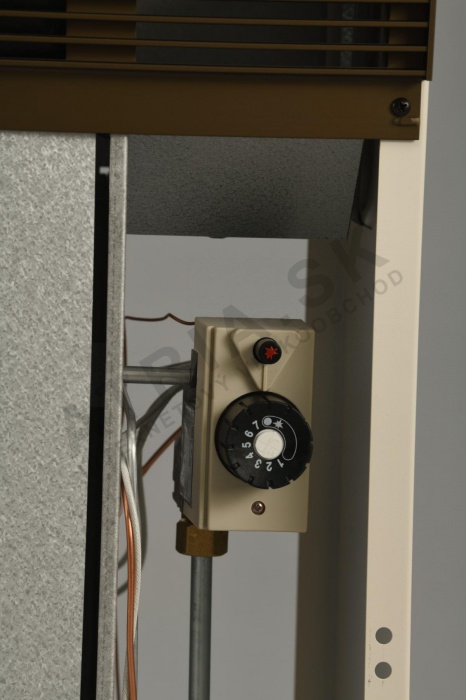

gas valve with a thermoelectric safety cut-off
-
floor-standing installation
-
flue gases are led into the chimney via the right, left or rear outlet (as needed)
-
stove casing made of steel sheet protected by special powder coating
-
the standard stove colour is ivory
Dimensions:
- A = 566 mm
- B = 198 mm
| Technical data | GAMAT S50 |
| Weight (kg) | 33 |
| Grille colour on the stove | brown |
| Heat exchanger | enamelled |
| Temperature selector | 13 to 38 °C |
| Electrical connection | not required |
| Gas connection | G 1/2 |
| Outer dimensions - w x d x h | 566 x 273 x 786 |
| Stove suitable for rooms with a volume of (m3) | up to 100 |
| Heat output, max. | 5,33 |
| Heat input, max. | 6,10 |
| Natural gas consumption (m³/h) | 0,63 |
| Consumption - propane-butane (kg/h) | 0,48 |
| Flue gas outlet diameter | 90 |
Frequently Asked Questions
- How do I choose the right output for a KARMA gas stove? Just as with gas boilers, base your choice on the calculated heat loss of the heated space. For electric heaters it is also essential to check whether your home's electrical connection can support it - higher outputs (roughly above 12 kW) usually require a three-phase 400 V connection and a correspondingly sized main circuit breaker, which your electrical inspector or the electricity distributor can confirm.
- Is an electric boiler worth it compared to a gas or solid-fuel boiler? An electric boiler has the lowest purchase price and the simplest installation (no flue is needed, since nothing is combusted), but running costs on electricity are usually higher than gas or wood/coal for the same amount of delivered heat. It is best suited where gas is not available, as a supplementary/backup source, or for a low-consumption building (well-insulated new builds, cottages, apartments).
- How does an electric boiler regulate output? Most models switch the individual heating elements on/off in stages, while some more modern models also allow smoother output modulation - this affects heating smoothness and, to some extent, the lifespan of the switching components.
- Can I install this electric boiler myself? Connection to the electrical grid, inspection and commissioning must be carried out by a person with electrical qualification in accordance with the applicable STN 33 2000 standard and related regulations - self-installation is not permitted, either for warranty reasons or for safety reasons.
- Can this electric boiler also heat domestic hot water? For many models, yes - usually in combination with a separate hot water tank and a switching (3-way) valve that switches between the heating circuit and heating the tank. You can find the exact option and required accessories for this specific model in the technical parameters above, or consult our customer service.
Additional parameters
| Category: | flue gas discharge into the chimney |
|---|---|
| Warranty: | 2 years |
| Weight: | 10 kg |
| Stove heat output: | 5,3 kW |
Product rating
Be the first who will post an article to this item!
Discussion
List of discussions
P
pavol
pavol
Dobrý deň! Ako je t s úpravou vyústenia výduchu na zateplenej fasáde v prípade existujúcej "gamatky" a dodatočného zateplenia (typ gamatiek - novšie KARMA ale i staršie typy). Zatepľuje sa s EPS-F (fasádny polystyrén resp. sivý polystyrén NEO) hr.100mm. Za skorú odpoveď
A
atria
atria
Dobrý deň, S úpravou vyústenia výduchu na zateplenej fasáde Vám žiaľ pomôcť neviem. Pekný deň.
V
vojtech
vojtech
:Je vyvod do komina vzdy uprostred vzadu? Je mozny vyvod na strane, alebo hore? Vo vasom prospekte chyba pohlad z boku!Dakujem za skoru odpoved.
A
atria
atria
Dobrý deň, žiaľ ohľadom gamatiek Vám poradiť neviem. Pekný deň.
S
svetlana
svetlana
dobry den mozem vediet cenu gamatky Karma 6 s dvomi rurami v zadu aj z dovozom?Je to taka tie dve rury su nad sebou a idu do steny von.Dakujem.
A
atria
atria
Dobrý deň, Gamatky Karma 6 s v našej ponuke žiaľ nemáme. Prajem pekný deň.
J
jan
jan
Dobrý deň prajem,chcem sa spítať,dá sa to aj na splátky cez qautro Ďakujem. Prajem príjemný deň-
A
atria
atria
Dobrý deň, žiaľ nákup na splátky neumožňujeme. Pekný deň.
O
ondrej
ondrej
zdravim!chcem sa spytat do akej miestnosti(objem miestnosti) je vhodná Karma Gamat S 50
A
atria
atria
Dobrý deň. Je vhodná do veľkej miestnosti, o rozlohe až do 40 m2. Prajem pekný deň.
P
peter
peter
prosim o informacie ako zapnut gamatky KARMA GAMAT S 50 s vivodom do komina mam ich dlhsie cca 10 rokov ale boli odpojene a som statil navod chcem ich dat do prevadzki vopred dakujem
A
atria
atria
Dobrý deň. Žiaľ tento návod nemám k dispozícií. Odporučil by som Vám kontaktovať priamo spoločnosť Karma.sk kde by Vám požadovaný návod mohli vedieť zaslať. Pekný deň
R
renata
renata
Prosím vás Karma gamat 50v cene je aj príslušenstvo a keď nie aká je plus cena dakujem
A
atria
atria
Dobrý deň, zasielam Vám požadované údaje : Gamat S50 - Sú vybavené: plynovým ventilom s bezpečnostnou termoelektrickou poistkou komínovým čidlom (mikroswitch) – poistka spätného ťahu piezozapaľovačom, a zapaľovacím horákom, čo zaručuje maximálnu spoľahlivosť a predovšetkým bezpečnosť prevádzky smaltovaným výmenníkom nastaviteľnými nohami odvodom spalín (pravým, ľavým a zadným), koleno nie je súčasťou dodávky Rozmery : Výška 786 mm Šírka 566 mm Hĺbka 273/303 mm Prajem pekný deň.
