Prietokomer RAINPOINT ICS018

Product detailed description

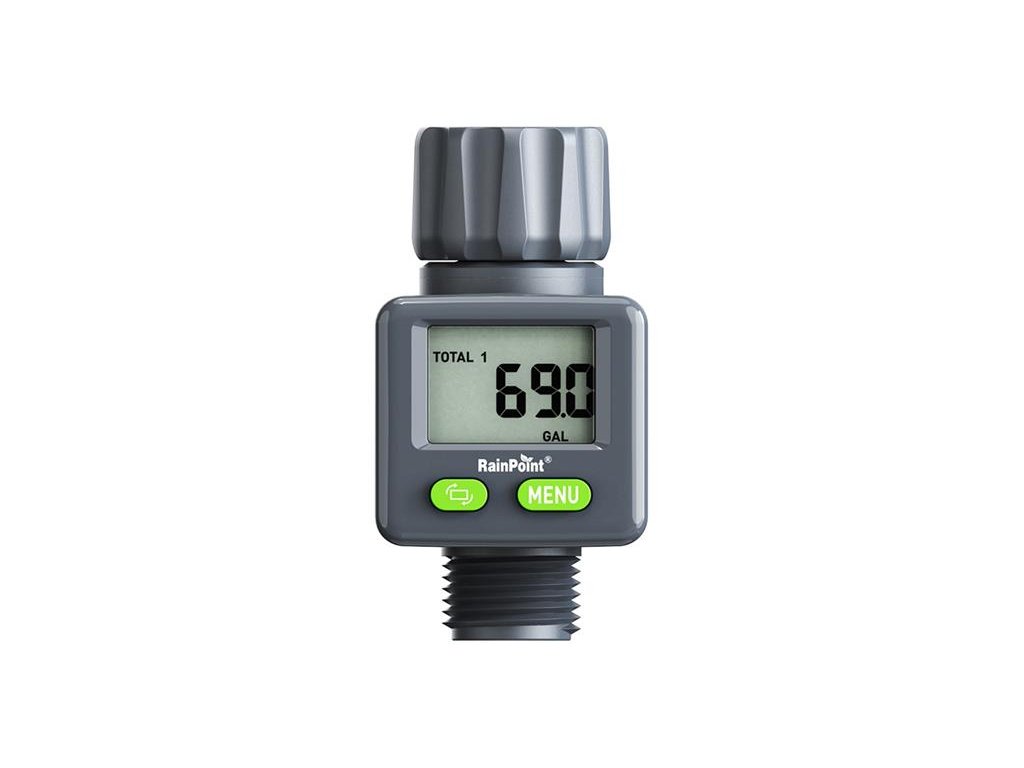

Digital RainPoint Flow Meter
The RainPoint Digital Flow Meter combines top-notch accuracy with a rugged waterproof design, offers four measurement modes (flow rate, last consumption, two totals) and runs on a single CR2032 battery with a clear display indicating battery status. Intuitive controls let you rotate the display and switch between units, as well as reset the data by holding a single button. Automatic display shut-off after one minute of inactivity and the ability to measure flow in both directions contribute to comfortable use. RainPoint is ideal for the garden, motorhome, irrigation system or pool.
Accuracy and reliability in every detail
The RainPoint Digital Flow Meter is equipped with an advanced Hall sensor and a special IC (Integrated Circuit) chip set, which guarantees measurement accuracy of ±3%. This ensures you get reliable data on current water consumption regardless of conditions and installation type. No flow direction restriction and the ability to freely change the screen orientation are features that elevate this meter above standard competing products.
Full protection against moisture
RainPoint focuses not only on accuracy but also on durability. A waterproof battery compartment with a leak-proof seal and a silicone ring ensures a long service life and resistance to outdoor conditions (protection class IPX6). Rain, splashing water and accidental submersion are no obstacle for it.
Full control over measurement
The device offers four independent reading modes: current flow, last consumption (last), and two total counters (total 1 and total 2). Thanks to its extensive functions, you can track both short-term and long-term data, compare consumption across different periods and plan savings. Want to start a new set of measurements? No problem! Just hold the menu button and all values will be reset to zero. RainPoint also does not dictate the flow direction - you can consider both the inlet and outlet as the input, and if needed, change the counting direction by holding a single button.
Battery powered
RainPoint is powered by a single CR2032 battery - replacing it takes only a few seconds when needed. When the battery level drops, a clear warning symbol appears on the display to remind you that the battery needs replacing. If the meter is not used for more than a minute, its screen automatically turns off to protect the battery. This allows the RainPoint meter to remain functional longer even under demanding use.
Ergonomics and intuitive controls
You can rotate the LCD (Liquid Crystal Display) screen with a short press of a button, so you can always easily read the data regardless of the installation method. On the flow measurement side, you can hold the menu button to change units from GAL/min to L/min and from GAL to L, making the device universal for various measurement systems.
Technical parameters:
Waterproofing: IP54
Reading modes: current flow, last consumption (last), two total counters (total 1 and total 2)
Operating pressure: 0.5-10 bar (7.25-145 psi)
Measurement range: 0-9999 L
Water flow range: 0.5~45.5 l/min
Power supply: Battery powered (one CR2032 battery)
Operating temperature: 5℃-40℃
Display: LCD
