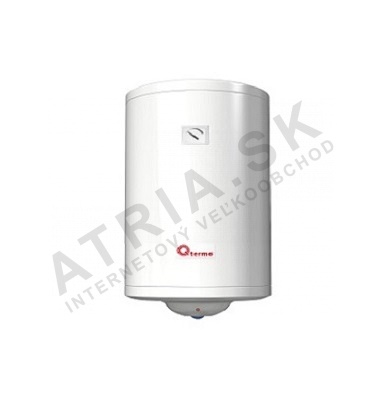

Q-TERMO Trend 100 N
Code: TREND100NRelated products
Product detailed description
Heaters with ANTICALC - technology with increased resistance to limescale – ideal for areas with hard and soft water alike.
Features:
- ANTICALC technology - with two dry elements protected in a steel sleeve, independently connected to each other
- Newly reinforced walls of the inner tank for a longer service life
- New modern design of the unit
- "Anti-freeze" - freeze protection
- Connection to full water pressure (up to 0.6MPa)
- External rotary thermostat in the range up to 70 °C (heaters with a volume of 50L up to 65°C)
- Safety resettable fuse against overheating
- External temperature gauge and illuminated water heating switch
- Tank enamelled with a highly resistant zirconium coating with a special damage-resistant formula
- ECO polyurethane insulation with a low thermal conductivity coefficient ensures lower heat losses than European standards
- Pressure relief valve included in the package
- Recommended expansion tank volume: 3 l
- 2+3 year warranty on the heater tank
Description and dimensions:
| Description | Dimensions |
| 1. Hot water outlet | A = 570 mm |
| 2. Cold water inlet | B = 800 mm |
| 3. Temperature gauge | C = 847 mm |
| 4. Rotary thermostat dial | D = 496 mm |

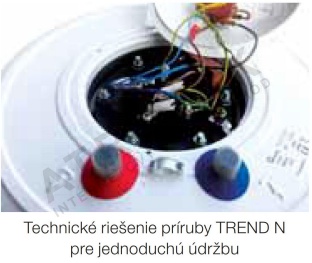

| 5. Flange with heating element | E = 509 mm |
| Height = 847 mm | |
| Width = 496 mm |
| Parameters | TREND 100 N | |||
|---|---|---|---|---|
| Volume (l) | 100 | |||
| Tank inner surface | enamel | |||
| Connection (V/Hz) | 1/N/PE ~ 230V/50 | |||
| Total output of heating elements (W) | 2000 | |||
| Water connection (G") | 1/2" | |||
| Electrical protection | IP X4 | |||
| Pressure (MPa) | 0.6 | |||
| Weight (kg) | 28.5 | |||
| Energy class | C | |||
Additional parameters
| Category: | Discontinued |
|---|---|
| Warranty: | 2 years |
| Weight: | 30 kg |
| The item has been sold out… | |
