Q-TERMO Trend 200 HM
Code: TREND200HNRelated products
Product detailed description

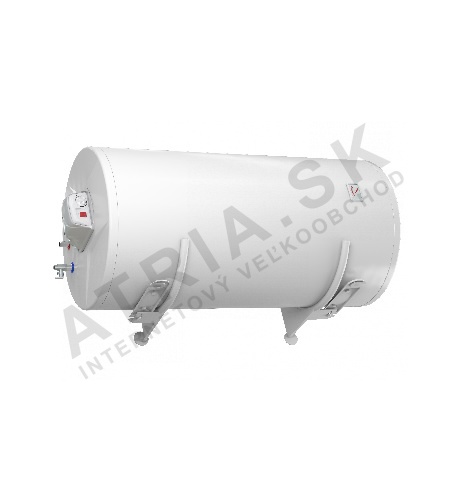

Q-TERMO Trend 200 HM
- electric storage water heater
- installation: horizontal
- volume: 200 litres
- supplied with additional mounting brackets
Features:
- New modern design
- Newly reinforced walls of the inner tank for a longer service life
- Connection to full water pressure (up to 0.6 MPa)
- External rotary thermostat with a range up to 70 °C (50 L models up to 65 °C)
- Safety resettable fuse against overheating
- "Anti-freeze" - frost protection
- External temperature indicator and illuminated water heating switch
- Tank enamelled with a highly resistant zirconium coating with a special damage-resistant formula
- ECO polyurethane insulation with a low thermal conductivity coefficient guarantees lower heat losses than European standards
- Pressure relief valve included in the package
- 150 and 200 litre models are equipped with special mounting brackets (hoops) for easier installation
- Recommended expansion vessel volume: 8 l
- 2+3 year warranty on the heater tank
Description and dimensions:
| Description | Dimensions |
| 1. Hot water outlet: G 1/2" | A (height) = 1255 mm |
| 2. Cold water inlet: G 1/2" | B = 1170 mm |
| 3. Temperature indicator | C = 190 mm |
| 4. Control panel | D (diameter) = 586 mm |
| 5. Flange with heating element | E = 96 mm |
| F (width) = 595 mm | |
| M = 780 mm | |
| G = 32 mm |
| Parameters | TREND 200 HM | |||
|---|---|---|---|---|
| Volume (l) | 200 | |||
| Inner tank surface | enamel | |||
| Power supply (V) | 230 | |||
| Electric power (kW) | 3 | |||
| Mixed water heated to 40 °C (l) | 272 | |||
| Pressure (MPa) | 0,65 | |||
| Weight (kg) | 56 | |||
| Energy class | D | |||
Additional parameters
| Category: | Wall-Mounted Horizontal |
|---|---|
| Warranty: | 2 years |
| Weight: | 10 kg |
| The item has been sold out… | |
