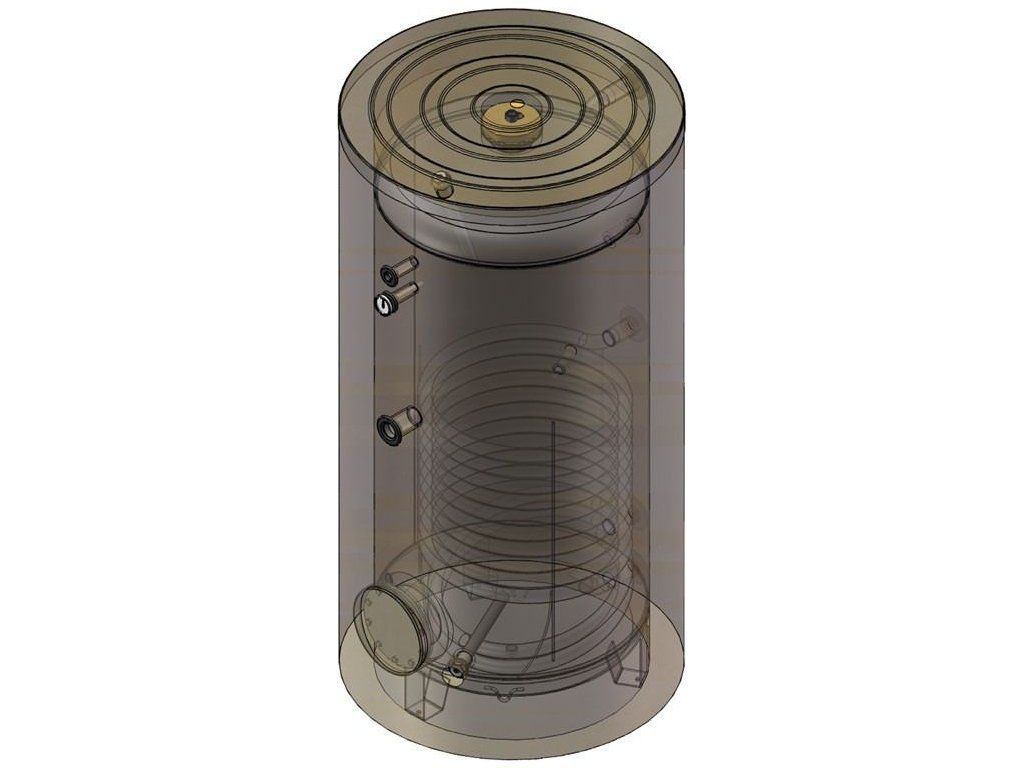

QUADROFLEX QFS 1 300 Solar Tank
Code: 301394Related products
Product detailed description
QFS 1 solar tanks are single-coil (monovalent, with one heating coil), meaning only one external heat source can be connected, i.e. only a solar system. Versions allow the additional installation of up to two electric heating elements, depending on output.- Enamelled steel tank
- High-efficiency CFC-free polyurethane insulation
- Anode protection against corrosion
- Cleaning opening up to 110 mm in diameter located at the bottom of the tank
- Possibility of connection to circulation
- Possibility of installing up to two electric heating elements with a total output of 12kW
- Max. working temperature 95°C
- Max. operating pressure 0.8MPa
- Max. exchanger operating pressure 6 bar
- Easy installation, operation and maintenance
Additional parameters
| Category: | Solar Tanks |
|---|---|
| Weight: | 92 kg |
| EAN: | 3800879302697 |
| Actual volume: | 300 L |
| Top heat exchanger volume: | 8.8 L |
| Top heat exchanger area: | 1.45 m² |
| Top heat exchanger output: | 53 kW |
| Continuous DHW flow rate at dT 35°C (60-80°C) S1: | 1248 L/h |
| ERP energy class: | B |
| Height: | 1420 mm |
| Diameter: | 650 mm |
| Warranty: | 2 years |
| Net weight: | 92 kg |
