ROTOMIX F4 3/4" kvs=6
Code: F41009Related products
Product detailed description

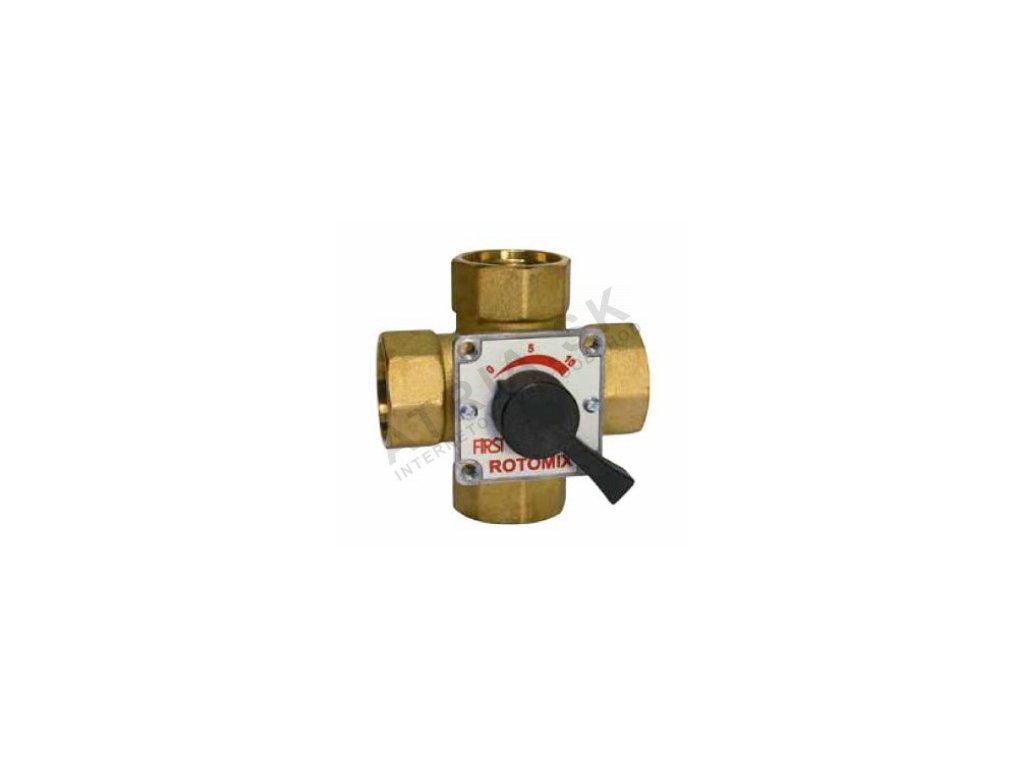

ROTOMIX F4 3/4" kvs=6
four-way mixing valve ROTOMIX - suitable for MV120 actuator
- PN 10,
- T = from -10°C to +110°C
- max. differential pressure = 1 bar
- thread FFF
- material: brass CW617N
| Dimensions | A /mm | B /mm | C /mm |
| 3/4"- Kvs 7 | 36 | 72 | 45 |
Frequently Asked Questions
- How do I check compatibility with my valve/system? Compare the connection type (e.g. M30x1,5 thread) and supply voltage with the technical parameters of your valve or controller.
- Must installation and wiring be done by a professional? Mechanical mounting onto the valve can be handled by a skilled DIYer, but we recommend having the electrical connection to the controller checked by an electrician or heating technician.
Additional parameters
| Category: | Actuators and valves |
|---|---|
| Warranty: | 2 years |
| Material type: | mosadz CW617N |
