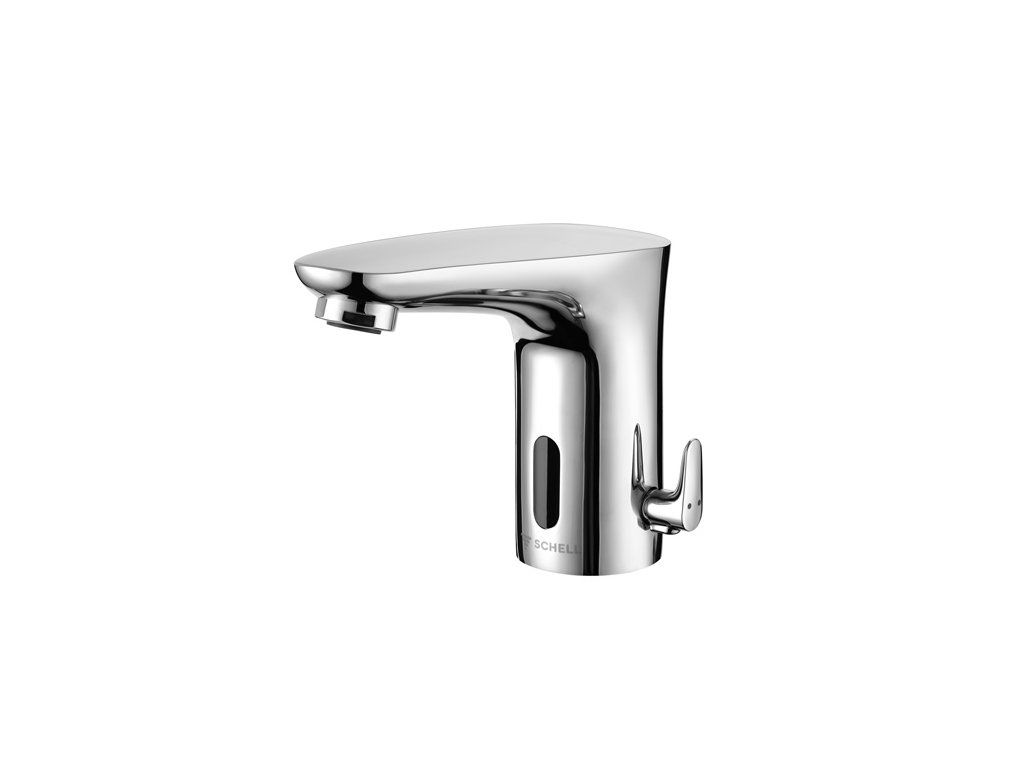

SCHELL sensor basin tap MODUS E HD-M, battery operated, 4x AA 1.5 V

Product detailed description

SCHELL MODUS E electronic basin tap HD-M (high pressure, mixing).
Battery operated, with external compartment for 4x AA alkaline batteries.

Infrared sensor tap with temperature setting.
Programmable electronics.
Adjustable hot water stop.
Solenoid valve.

Flow rate: max. 3 l/min., independent of water pressure.
With temperature regulator.
Maximum hot water temperature: 70°C (briefly, e.g. during thermal disinfection).
Static pressure: max. 8 bar.
Working pressure: 0.5 - 5 bar.

Activation by bringing the hand close:
Sensor range: ≈ 2 - 17 cm
Hygiene flush program (on/off: continuous flow 30 s, 24 h after last use)
STOP function for cleaning: 120 s

Connection: 2 connecting flexible hoses G 3/8" female thread x 450 mm with check valve and pre-filter.
Aerator.
Fixing material for mounting on the basin.
Supplied with a connecting cable (length 200 mm) with a plug with IP 65 protection.

Material: body made of hygienically safe brass
Mixer surface finish: chrome.
Dimensions: 2 x G 3/8" female thread.
