System Insulation Board UHP300 for Underfloor Heating
Code: UHP300Product detailed description
For m2 you need pcs sheets of UHP300, m of pipe, - way manifold, pcs EK adapter + cabinet.
The calculations are approximate. If you would like a specific proposal, feel free to contact us.

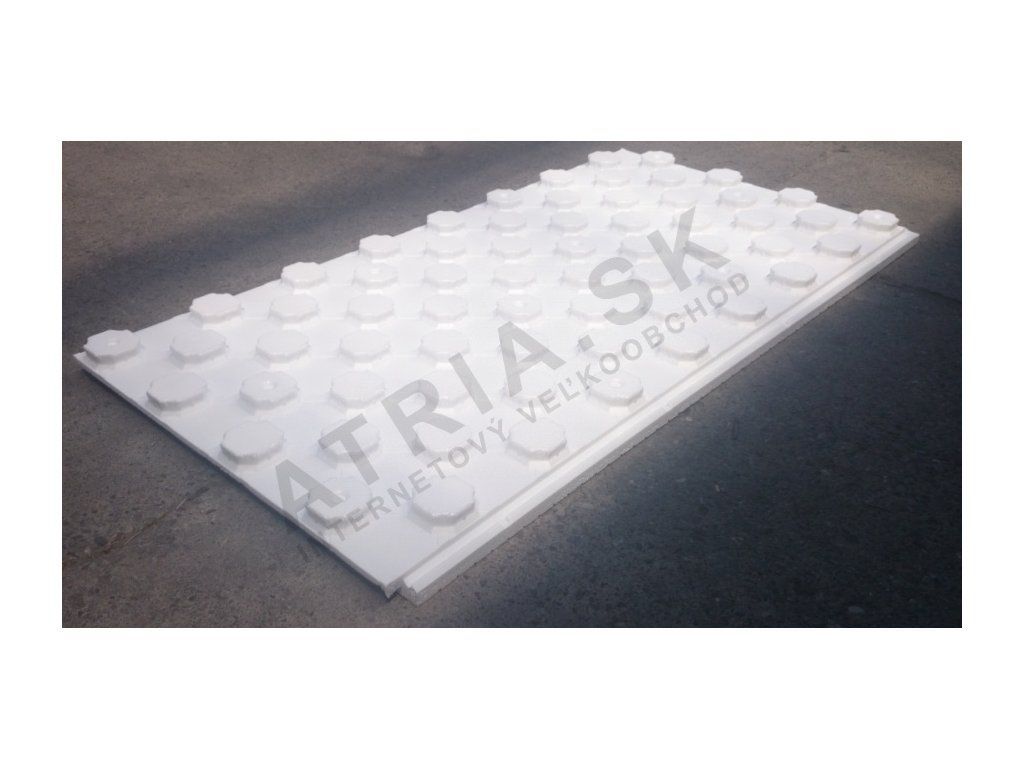

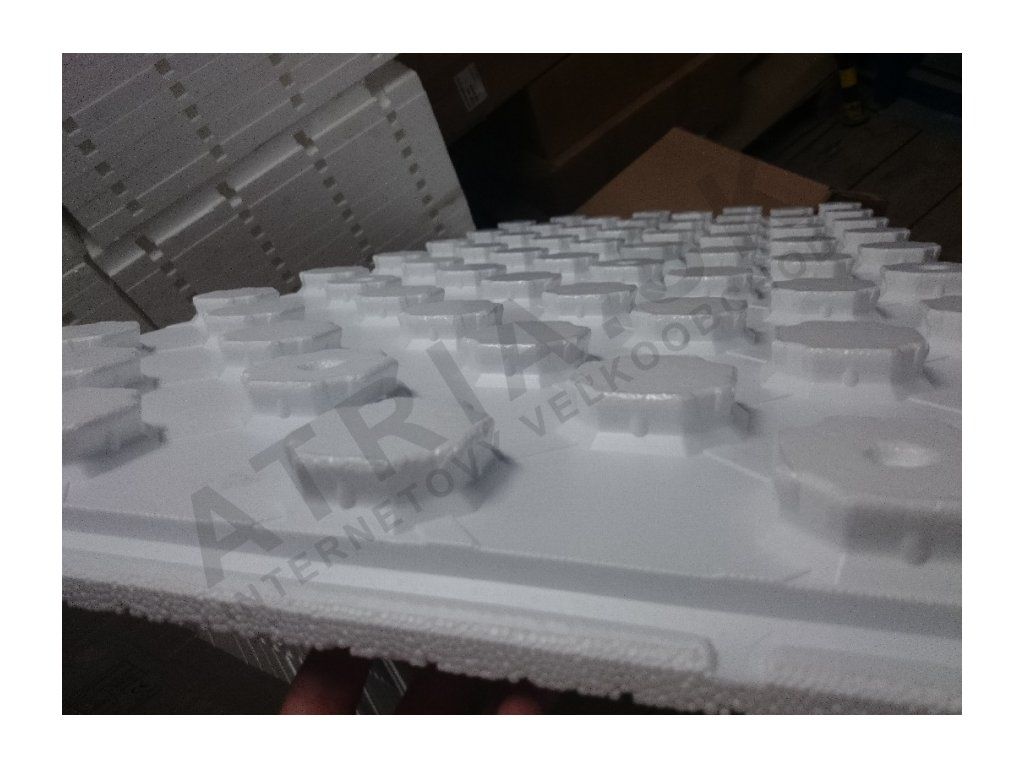

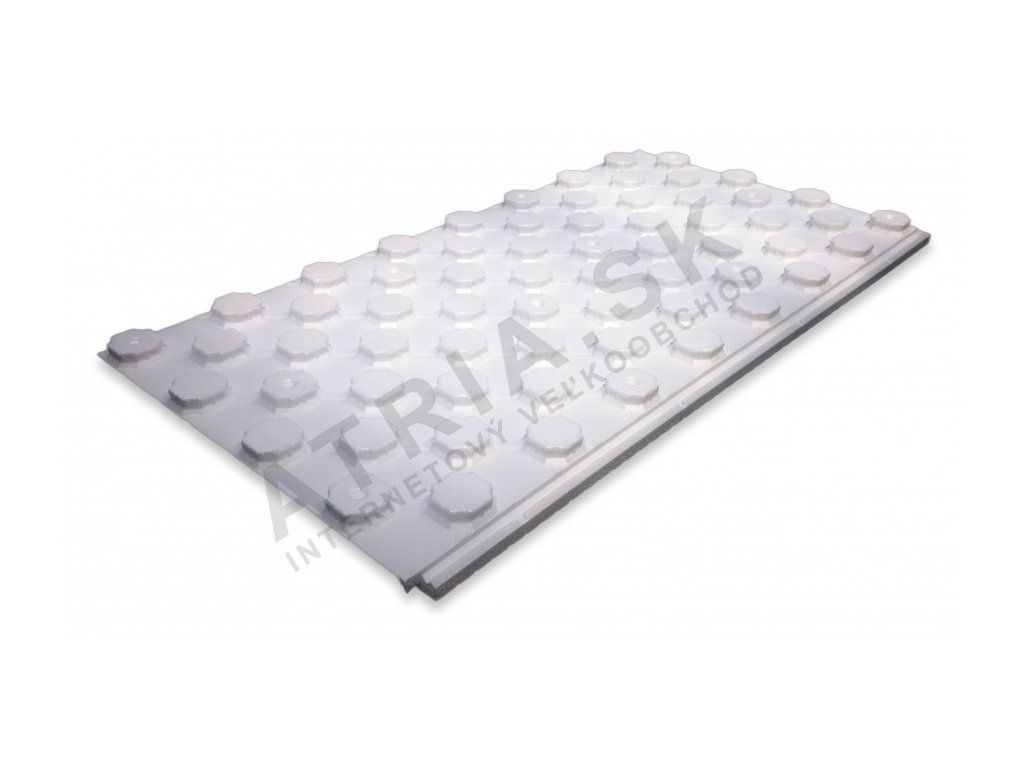

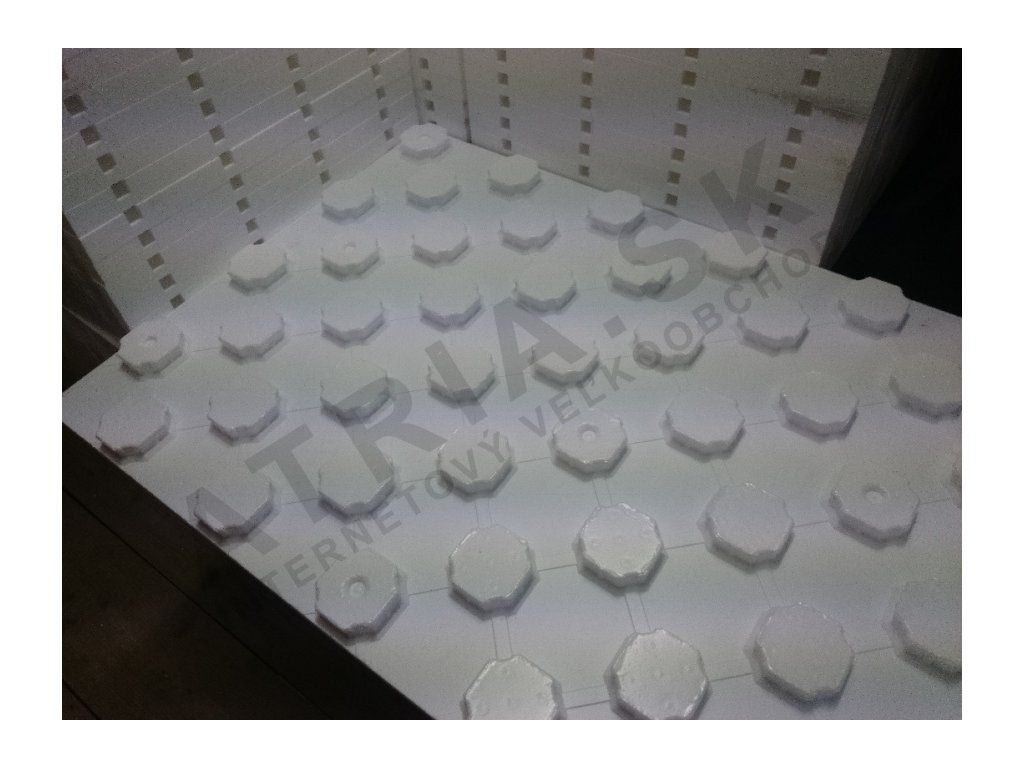

System polystyrene insulation board UHP300 for underfloor heating
 |
Sheet size 0.72m2 (without locks) Pipe diameter: 14-18 mm Flexural strength: ≥ 200 kPa Overall height: 44 mm |
Available for purchase only in full packages One package contains 7.2 square metres2, or 10 sheets. |
- System board UHP 300 is made of EPS 150 polystyrene in accordance with STN EN 13163
- The board is covered on one side with a pressed foil

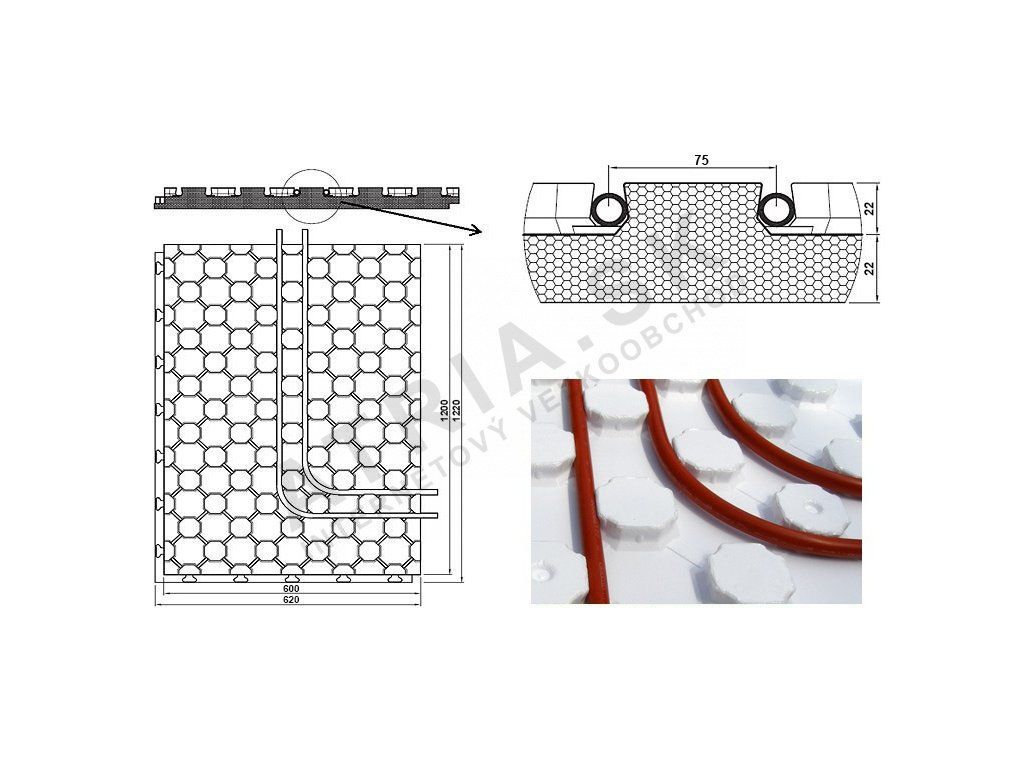

- Dimensions without locks: 1200 mm x 600 mm
- Dimensions with locks: 1220 mm x 620 mm
- Board thickness: 44 mm
- Lock thickness: 20.5mm
- Foil thickness: 0.20 mm
- Pipe bend: 50 mm
- For heating pipes: 14-18 mm
-
Declared thermal conductivity coefficient λD: 0.35 W/mK
-
Thermal resistance RD (m2K/W): 0.85
-
Flexural strength: ≥ 200 kPa

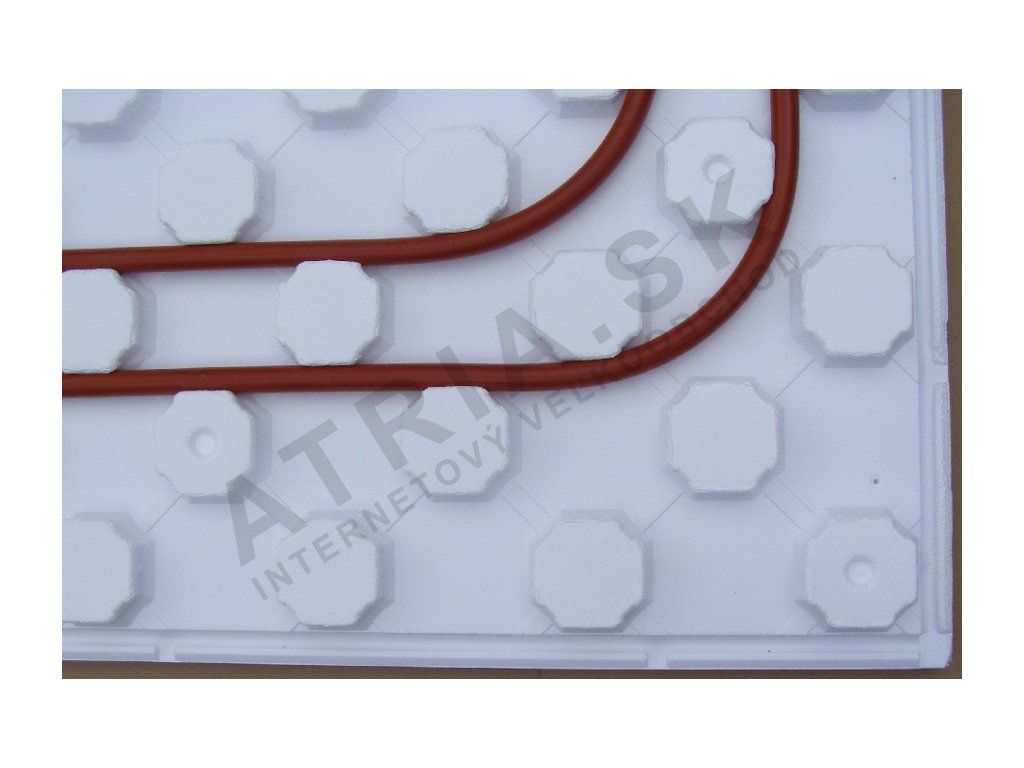

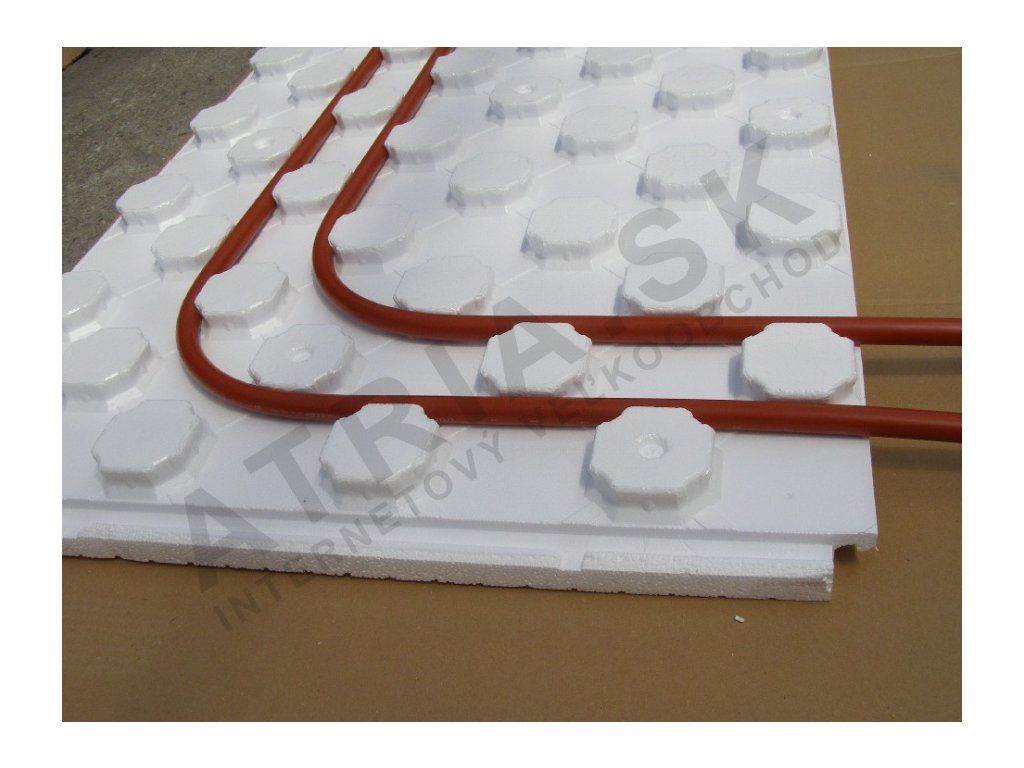

System board UHP 300 is used as thermal insulation and an installation system for underfloor heating. The board can be used in residential buildings, public buildings, and offices. The boards are designed to hold heating pipes firmly in place without the need for additional fastening systems. Boards are joined using locks that allow gap-free connections, thereby preventing the formation of thermal bridges.
The boards should be used in accordance with the manufacturer's instructions, and building structures in accordance with current binding construction regulations. The surface should be level and dry. When used directly on the ground, it must be fitted with a vapour barrier. Use an expansion gap between the board and the wall. Do not expose the boards to direct contact with chemical substances that adversely affect polystyrene.

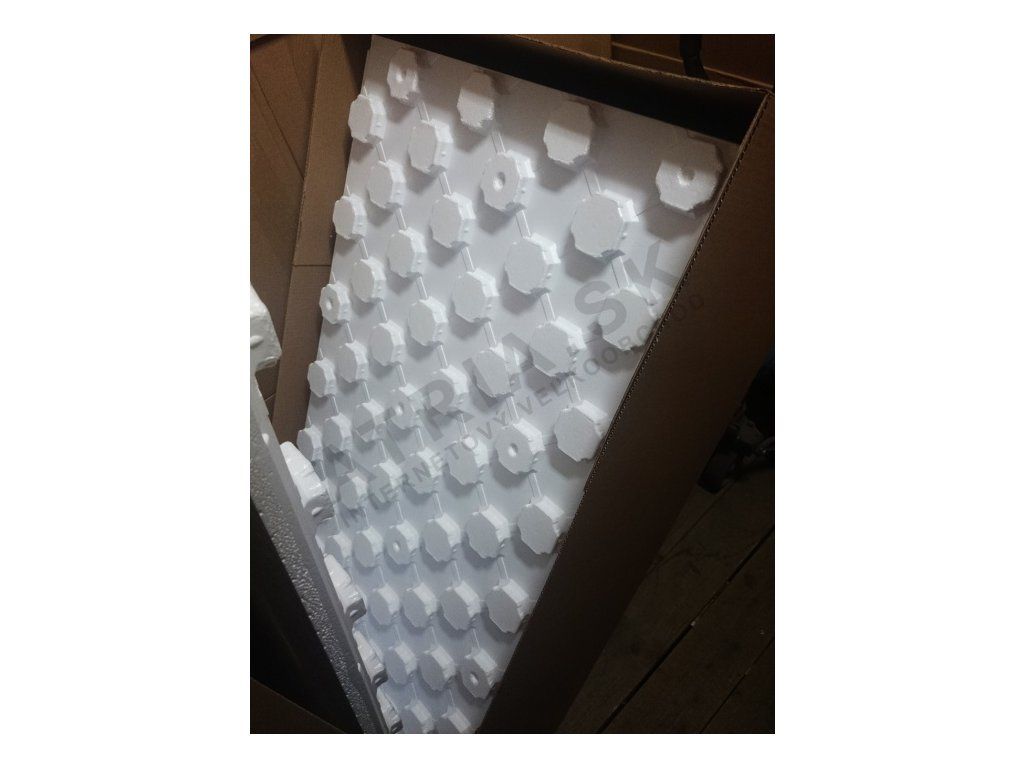

The boards are supplied in the manufacturer's original packaging. Each package contains a label including: product description, date and production code, quality certificate, manufacturer's address, technical parameters. The boards should be stored in a place that ensures protection against mechanical damage and variable weather conditions, especially direct sunlight and moisture. Road transport vehicles must be suitable for transporting goods that could easily be damaged, i.e. without protruding sharp edges, no damaged components in the load, with a waterproof roof covering.
 |
due to increased demand, please place your order well in advance |
Additional parameters
| Category: | Polystyrene, system boards |
|---|---|
| Warranty: | 2 years |
| Weight: | 1.5 kg |
| Total thickness with studs: | 44 mm |
| Net panel area: | 0,72 m2 |
| Net panel dimensions (usable size): | 1200 x 600 mm |
| Film color: | white |
| Film thickness: | 0,20 mm |
| Overall panel dimensions (total panel size): | 1220 x 620 mm |
| Insulation material: | EPS |
| Koeficient tepelnej vodivosti: | 0,035 W/(m.K) |
| Country of origin: | EU |
| Film material: | PE |
| Recommended pipes: | PEX-AL-PEX 16 x 2 |
| Recommended manifolds: | Stainless steel manifolds |
| Flexural strength: | 200 kPa |
| Fire classification DIN 4102: | B1 |
| Fire classification EN 13501-1: | E |
| For pipe diameter: | 14 - 18 mm |
| Pipe laying spacing: | 75,150,225 mm |
| Thermal resistance of panel: | 0,85 m2K/W |
| Thermal dimensional stability: | 80 °C |
| Product replaced by new one:: | https://www.atria.sk/systemova-izolacna-doska-uhp55-pre-podlahove-kurenie--stirotermal-basic/ |
| The item has been sold out… | |
