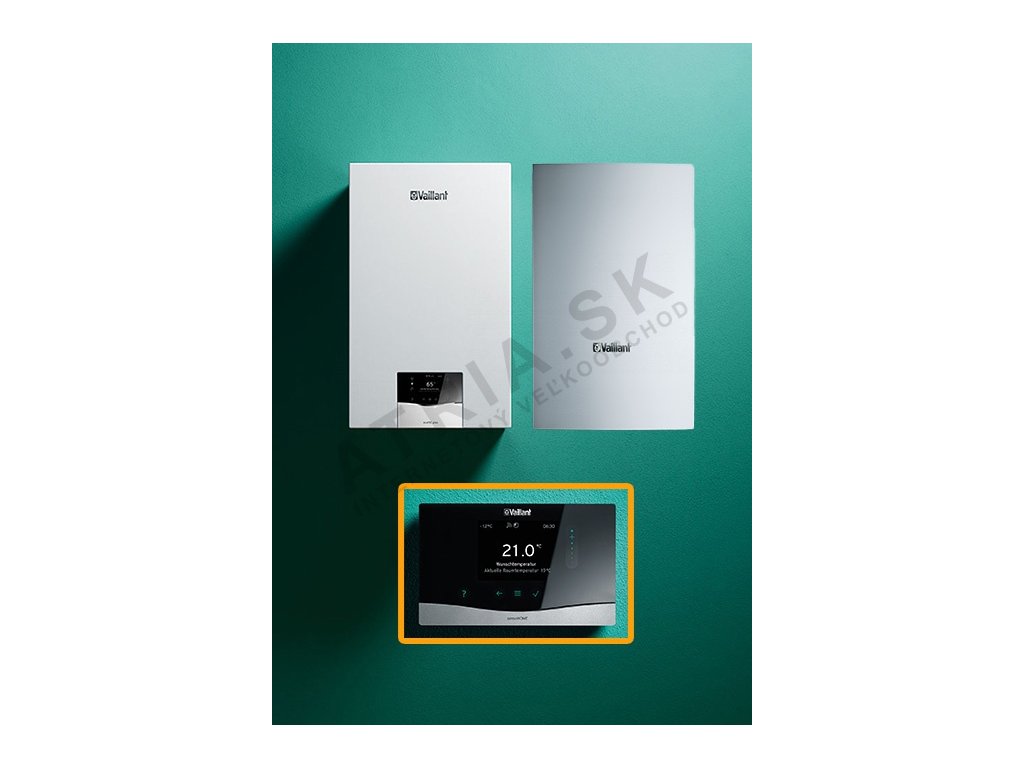

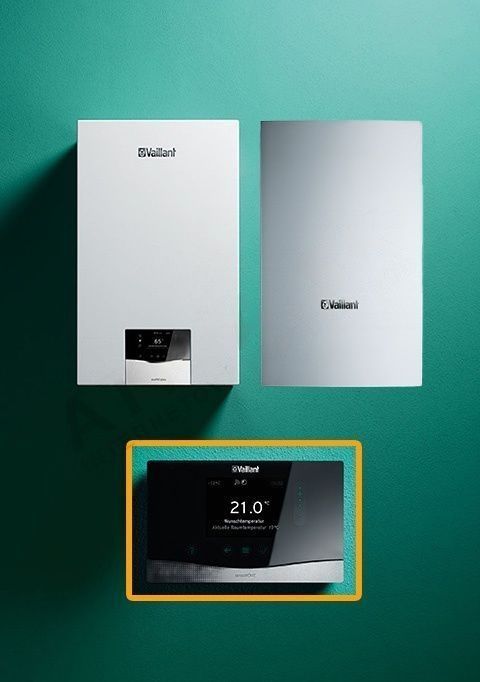

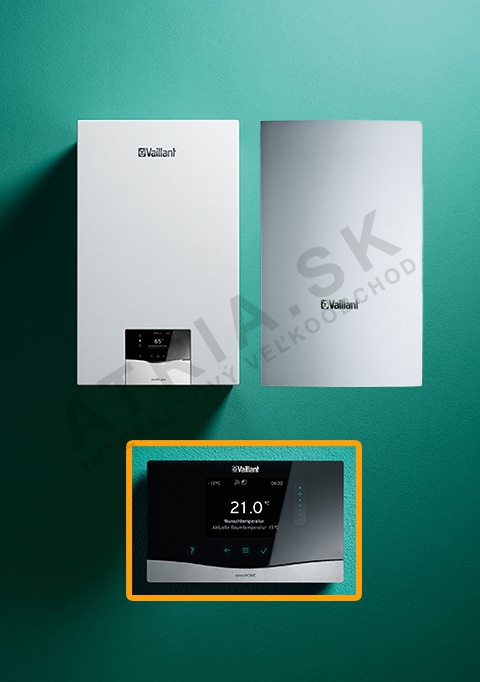

Vaillant VU 10CS/1-5 ecoTEC plus IoniDetect + VIH Q 75 B + sensoCOMFORT 720
Code: 0010044670Related products
Product detailed description
Vaillant VU 10CS/1-5 ecoTEC plus IoniDetect
+ ecoTEC plus IoniDetect+ uniSTOR VIH Q 75 B+ sensoCOMFORT 720
- equithermal controller
+ hot water tank temperature sensor
+ spacer frame under boiler
+ ecoTEC plus IoniDetect+ uniSTOR VIH Q 75 B+ sensoCOMFORT 720
- equithermal controller
+ hot water tank temperature sensor
+ spacer frame under boiler

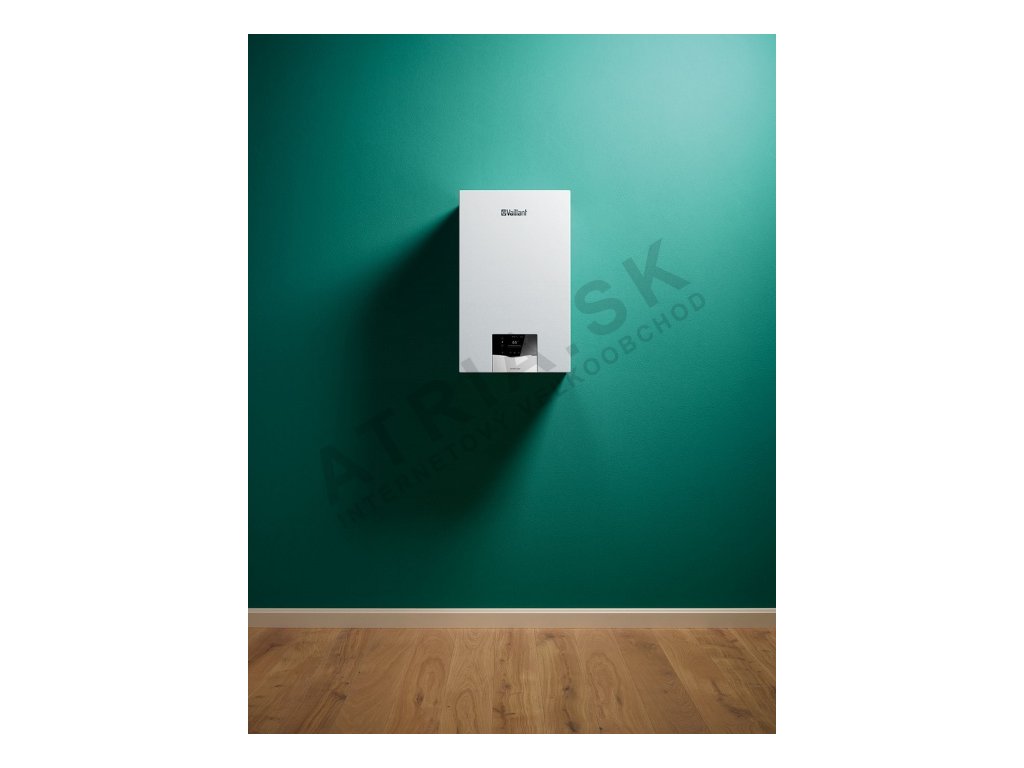

VAILLANT VU 10CS/1-5 ecoTEC plus IoniDetect
- wall hung condensing boiler
- capacity:2.9 - 10.9 kW (20 kW for TV)
We've made our best-selling boiler even better - using the latest technology to provide a reliable heating solution for the future. Its optimum price/performance ratio makes it a really good choice. Proven quality guarantees a long service life, while innovative features increase its efficiency. All this contributes to a significant reduction in your costs.
Be prepared for a change in gas composition
Thanks to the new IoniDetect combustion control technology, the boiler itself detects fluctuations in gas composition, can adapt and always works most efficiently. This feature will be most appreciated in the future when using more environmentally friendly gas mixtures.
Innovate your system with renewables
The new ecoTEC plus provides a sustainable heating solution. Especially in conjunction with the sensoCOMFORT system controller, you can optimally adjust your heating system - and thus save both energy and heating costs. Thanks to the new installation assistant, you can ensure that your boiler always operates at maximum efficiency while providing you with maximum comfort. For greater sustainability, you have the option of adding various flexible options to extend your system with renewable energy sources: solar heating, heat pumps or ventilation systems with heat recovery. Their common eBUS communication language allows easy installation and control of the entire system.
Remote control for greater convenience and efficiency
There are only a few steps to control your new heating system via an online app from anywhere. You need to add the sensoNET internet module to your boiler, which you can connect seamlessly with your boiler using the plug-and-play system (i.e. it works as soon as it is plugged in) and download our free app. You can then control it, for example, when you go on holiday. This option is not just for your convenience. Because your heating only runs at full blast when you actually need it, you save energy, your costs and the environment.
Convenient heating monitoring
Do you like to be in control of your energy consumption? Especially in combination with the sensoCOMFORT system controller, you can comprehensively control your boiler and have detailed consumption data at your disposal. Thanks to the new user interface with touch elements, monitoring the boiler operation becomes more convenient than ever. Enjoy our modern design and user menu for intuitive and trouble-free operation.
PARAMETERS
Heating
Range of rated thermal output at 50/30 °C: 2.9 - 10.9 kW
Range of rated thermal output at 80/60 °C: 2.5 - 9.9 kW
Max. 10.2 kW
Min. heating load: 2.7 kW
Max. 20 kW
Nominal heat load: 20.4 kW
Range of nominal heating heat load: 2.7 - 10.2 kW
NOx class:6
Max. 85°C
Maximum outlet temperature setting range (factory setting: 75°C): 15 - 80°C
Max. Operating pressure, heating: 0.3 MPa (3.0 bar)
Minimum circulating water quantity at ΔT = 20 K: 424 l/h
Residual conveying head of the pump at nominal circulating water quantity: 0.025 MPa (0.25 bar)
Electrical parameters
Minimum mains voltage/frequency: 230 V/50 Hz
Electrical protection:IPX4D
Gas connection on boiler side: 15 mm
Heater outlet/inlet connections on boiler side: G 3/4"
Heater outlet/heater inlet connections on boiler side: G 1/2"
Lafety valve connection: 15 mm
Condensate drain line: 19 mm
Dimensions (width x height x depth): 440 x 720 x 348 mm
Weight (without packaging, without water): 34 kg
VAILLANT uniSTOR VIH Q 75 B
- indirect heated stationary TV storage tank
- indirect heated stationary TV storage tank
- with enamel surface protection against corrosion
- volume:68l
.
- volume:68l
Product Characteristics
- energy class B
- designed for smaller households - 68 l capacity
- designed for ecoTEC plus and pro wall hung boilers
- installation next to or under the boiler
- same colour and design as suspended boilers
- high quality enamelled inner surface
- built-in magnesium anode
Parameters
- Nominal volume: 68 l
- Temperature-bearing area of heat exchanger: 0.85 m2
- Exchanger water volume: 3.5 l
- Maximum power: 30 kW
- Sustained DHW output: 738 l/h
- Heating time for DHW from 10 to 60 °C: 12 min
- Maximum DHW temperature: 85 °C
- Maximum heating water temperature: 110 °C
- Maximum operating pressure: 10 bar
- Heat loss: 0.9 kWh/24 h
- Exchanger connection: G 3/4"
- Hot water connection: G 3/4"
- Circulation connection: G 3/4"
- Height: 720 mm
- Width:440 mm
- Depth: 440 mm
- Weight: 55 kg

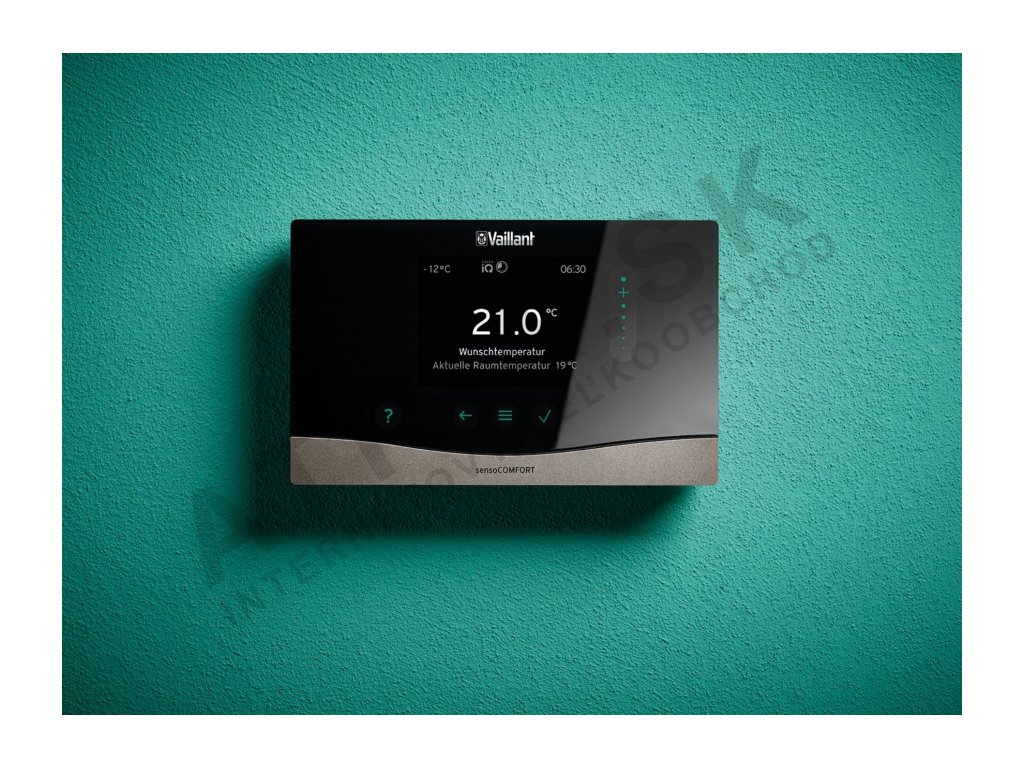

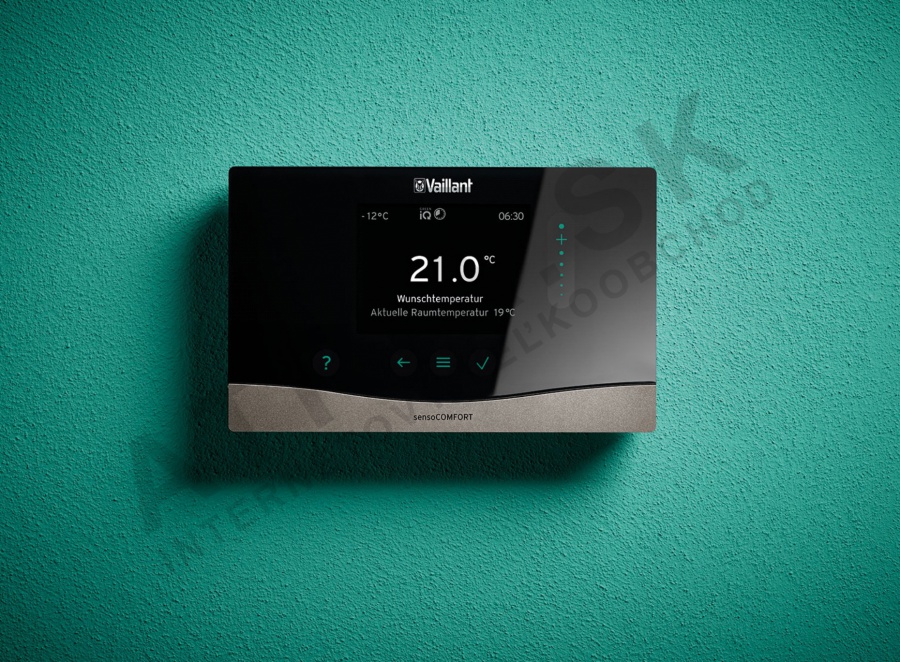

VAILLANT sensoCOMFORT 720
Our new sensoCOMFORT equithermal controller gives you complete control over your heating system and is intuitive and intelligent. Combined with our web-based sensoNET module and sensoAPP app, it allows you to control your heating - at home and on the move.
Customise your comfort with a few clicks
Thanks to the new high-resolutionsensoCOMFORT display and 3.5-inch screen, operating your heating is more convenient than ever. Six touch buttons, convenient scrolling and a backlight function simplify operation even in dark areas. Quick navigation and set-up is made possible by a clear menu structure and customisation of the heating system using the installation assistant function. And if you're missing any information, use the help button. With the sensoAPP app on your smartphone or tablet, you can control the heating from anywhere using a wifi connection: set precise temperatures, define time intervals down to the minute and use other special features such as absence mode.
Enhance your heating system with renewables
From solar systems to ventilation. With the sensoCOMFORT smart controller, you get future-ready system control. The controller is optimized to control all components of the heating system simultaneously and you can conveniently adjust the system according to your needs, e.g. domestic hot water. The sensoCOMFORT controller gives you the possibility to handle several heating circuits and therefore more complex heating systems, such as in multi-family houses.
Synchronised system design for maximum ease of use
Our new generation of gas boilers and controllers (including the sensoCOMFORT controller) have one thing in common:a harmonised menu structure, including the sensoAPP application. So, just by navigating one menu structure, you are familiar with all of them, which certainly makes operating your new heating system easier.
Designed for your modern home
A system controller should be a natural fit for your interior. The modern design is eye-catching and recognisable as it resembles modern smart devices. Thus, it integrates perfectly into modern living spaces. The same applies to our sensoAPP app. It follows on from the previous multiMATIC app - which won the Red Dot Design Award.
Parameters
- Energy efficiency class: II, VI, VIII
- Conversion: wireless
- Mounting: wall mounted
- eBUS interface: yes
- Gas boilers: yes
- Heat pumps: yes
- Hybrid systems: yes
- Number of boilers in cascade: 2 - 7
- Central ventilation: yes
- Solar heating: yes
- Number of heating circuits using expansion modules: 9
- Number of remote controls: 4
- Control via sensoAPP: yes
- Heating curve customization: yes
- Floor drying function: yes
- Humidity sensor: yes
- Installation assistant function: yes
- Time scheduling assistant function: yes
Additional parameters
| Category: | Vaillant ecoTec plus, pro |
|---|---|
| Warranty: | 2 years |
| Weight: | 60 kg |
| Bezpečnostný termostat: | áno |
| Dodávané príslušenstvo: | elektrický kábel, sifón, návod, záručný list |
| Elektrické krytie: | IPX4D |
| Elektronické zapaľovanie: | áno |
| Elektronika: | eBus 2.0 (od verzie 2014) |
| Hmotnosť prázdneho kotla: | 34 kg |
| Horný výkon kotla: | 10,9 kW |
| Krajina pôvodu: | EU |
| Letný režim: | áno |
| Maximálny pracovný tlak: | 300 kPa |
| Maximálny tlak TV: | 1 mPa |
| Možnosť pripojenia zásobníka: | áno |
| Možnosť rozšírenej záruky: | áno |
| Napätie/frekvencia: | 230V/50Hz |
| Nastaviteľný rozsah teploty VV: | 15 - 80 °C |
| Normovaný stupeň využitia pri 40/30 °C: | max. 109,5 % |
| Palivo: | zemný plyn / propán |
| Prevedenie komína: | TURBO |
| Priebeh zmeny výkonu: | modulovaný |
| Pripojenie el. napätia: | 230V |
| Pripojenie koncentrického dymovodu: | áno |
| Pripojenie oddeleného dymovodu: | áno |
| Prípojka TUV: | 1/2" |
| Prípojka vody: | 3/4" |
| Rozmery: | 720 x 440 x 338 mm |
| Spodný výkon kotla: | 2,9 kW |
| Spustenie kotla: | servisným technikom VAILLANT |
| Trieda emisií NOx: | 6 |
| Určenie kotla: | s možnosťou pripojenia zásobníka, kotol v zostave so 70 l zásobníkom |
| Veľkosť zásobníka TÚV: | 68 |
| Vhodný pre podlahové kúrenie: | áno |
| Výkon pri ohreve TV: | 20 kW |
| Výkon pri tepl. spáde 50/30 °C: | 2,9 - 10,9 kW |
| Výkon pri tepl. spáde 80/60 °C: | 2,5 - 9,9 kW |
| Výkon TUV: | 20 kW |
| Zabudovaný filter vody: | nie |
| Výkon kotla na vykurovanie: | nízky výkon do 15 kW |
| Výrobca: | Vaillant |
