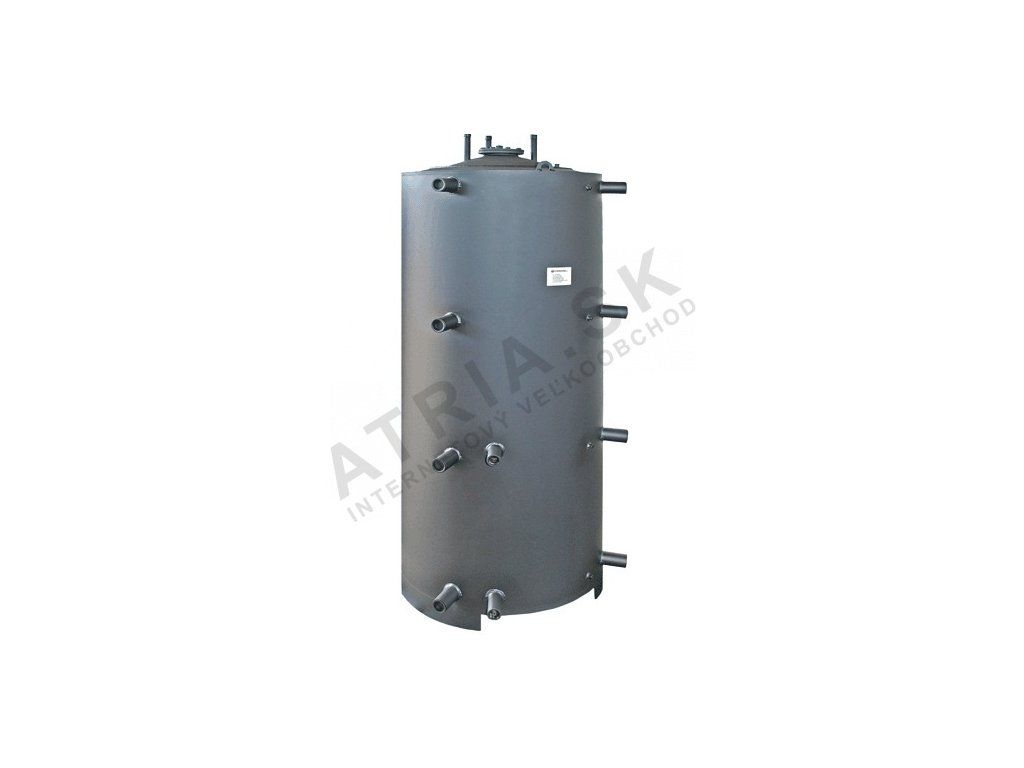

ZGIB Accumulation Tank 850 Litres
Code: 3830004861300/29326Product detailed description
Heating water accumulation tanks with a built-in DHW tank, including insulation, ZGIB 850
Accumulation tanks are used to store hot water. They are suitable for connection with a boiler, solar collectors, heat pumps or other water heating devices.
Incorporating the accumulation tank into a heating system with a solid-fuel boiler allows the boiler to run at an optimal, favourable temperature. To extend the service life of the tank, we recommend using treated water or distilled water as the heating medium, and it is also advisable to add anti-corrosion agents (inhibitors).
Basic parameters:
- volume: 620 l
- heat exchanger: surface - 2.34 m, volume - 15.1 l
- internal DHW tank volume: 200 l
- external height: 1978 / 2034 mm
- internal diameter without insulation: 780 mm
- external diameter with insulation: 980 mm
- weight: 245 kg
Construction
The accumulation tanks are made of quality steel with a steel top to ensure the safety of the vessel. Numerous connection options allow for a wide range of external heating source configurations.
The ZG type is fitted with a 290 mm flange for attaching an electric heating coil or a stainless steel heat exchanger. It can also be used as an inspection or cleaning opening. The ZGI type is fitted with a high-performance tube heat exchanger. Accumulation tanks are available with a capacity of 300, 500, 850, 1000, 1500, 2200 and 3000 l. External tanks of 850 - 3000 l are coated with anti-corrosion paint.
Thermal insulation
Optimal thermal insulation is provided by 100 mm of soft PURfoam foam insulation with an outer layer of polystyrene. Supplied separately, fitted on site.
Additional parameters
| Category: | accessories |
|---|---|
| Warranty: | 2 years |
| Product replaced by new one:: | https://www.atria.sk/zgib-850-litrov/ |
| The item has been sold out… | |
