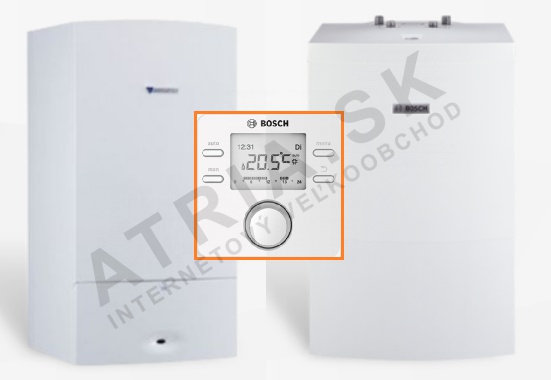

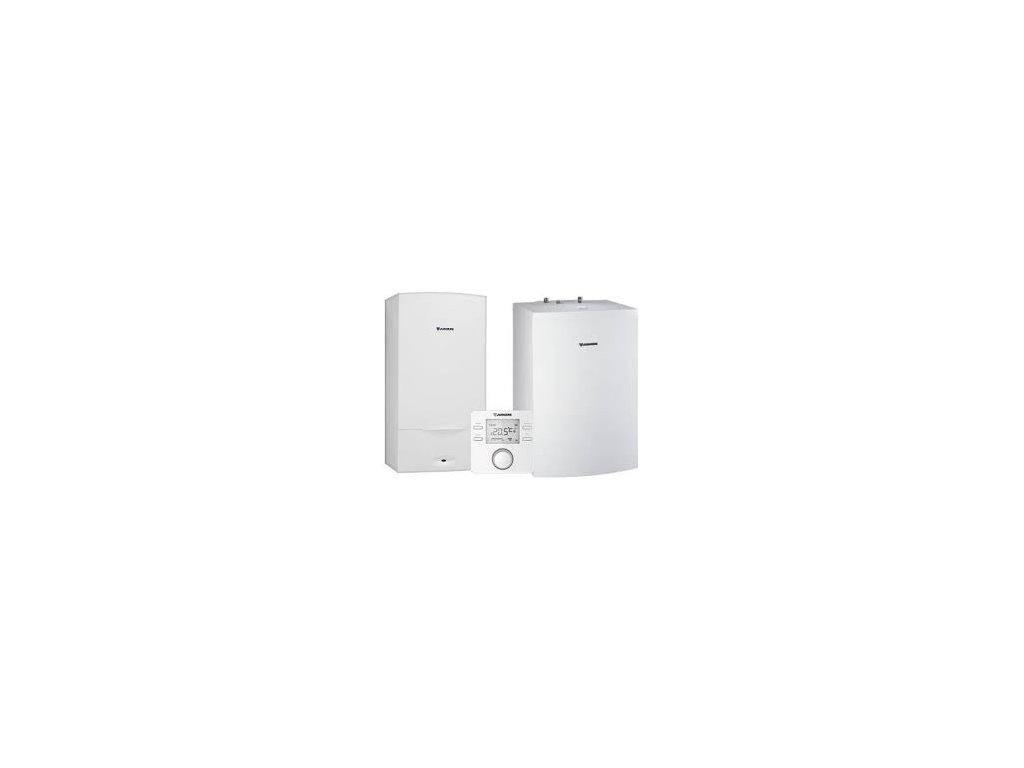

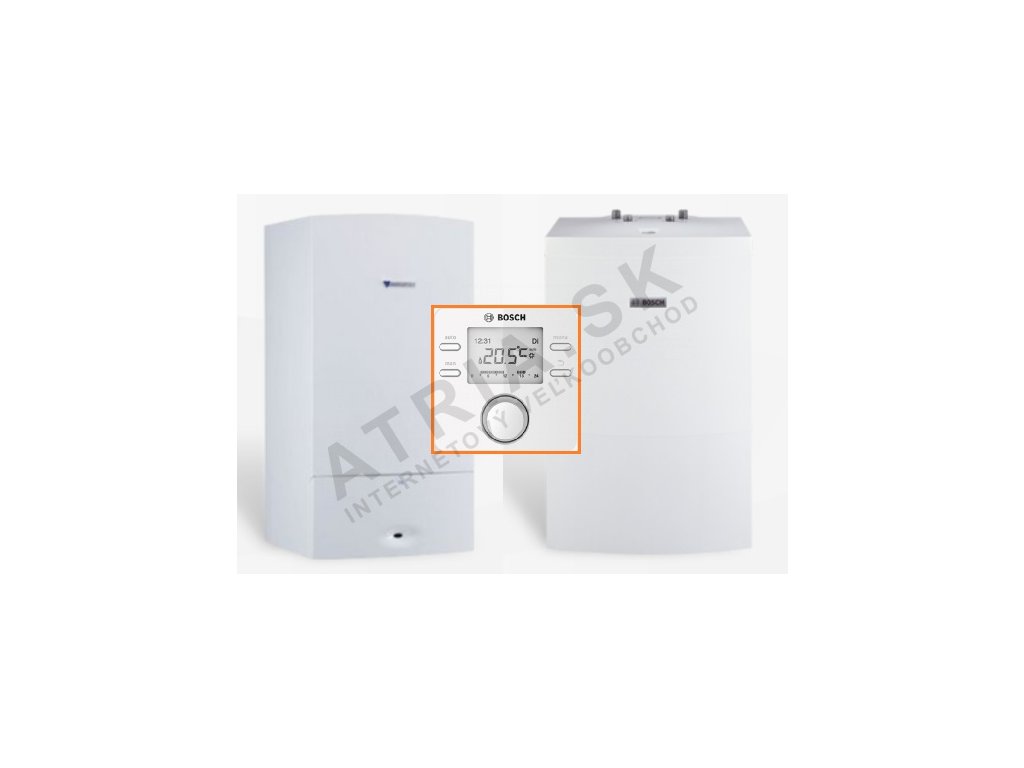

Bosch CerapurSmart ZSB 22-3 CE + WD 120 B + CW 100
Code: 8733500036Product detailed description
Bosch (JUNKERS) PREMIUM PLUS 22 WD 120 set
- CerapurSmart ZSB 22-3 CE - condensing boiler with the option to connect a storage tank
- WD 120 B - hot water storage tank, volume: 115 l
- CW 100 - weather-compensating controller

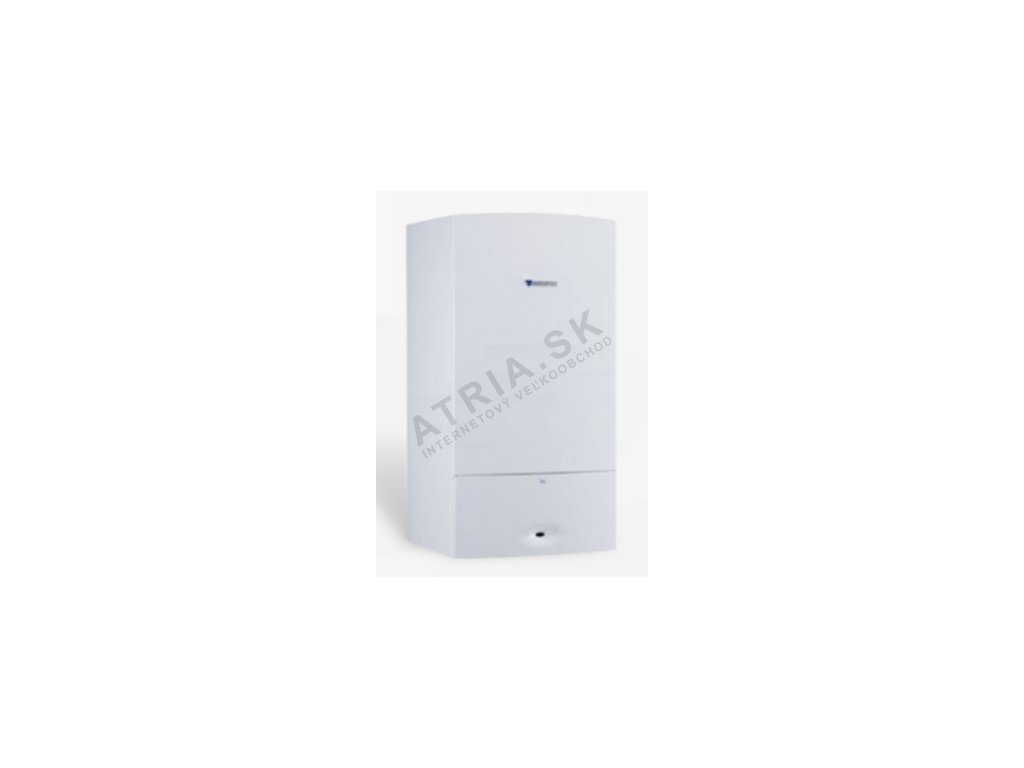

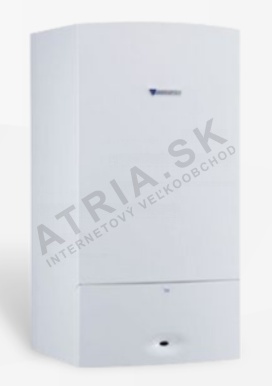

BOSCH (JUNKERS) CerapurSmart ZSB 22-3 CE
- gas wall-mounted condensing boiler with the option to connect a storage tank
- output: 8,0 - 21,6 kW
- color: white
Modern condensing technology
CerapurSmart offers everything you can expect from a modern condensing boiler − economical operation, high heating and hot water comfort, and easy operation and maintenance. If you decide to install a solar system as well, connecting it is no problem at all.
A solution for every household
The boiler is suitable for installation in new heating systems in family houses and apartments. It is also no problem to use it when modernizing an existing heating system. It very easily replaces an older wall-mounted boiler. Hot water preparation is provided either in an external storage tank
(ZSB version) or by flow-through heating (ZWB version).
Depending on the needs of the specific building, you can choose from output versions of 14, 22 and 24 kW.
A heat exchanger made of highly resistant and durable aluminum-silicon alloy with a large heat-exchange surface ensures high efficiency. Its maintenance and cleaning are very simple, which is another advantage of this boiler.
Advantages of the boiler
▸ a modern, energy-saving condensing boiler suitable for family houses and apartments
▸ compatible with a solar system thanks to the integrated solar optimization „solarInside-ControlUnit“, connecting solar collectors is trouble-free and possible even later
▸ an energy-saving pump that meets the energy efficiency index value required by the latest European legislation
▸ easy operation and installation
▸ quiet operation
Overview of advantages
- Bosch Heatronic III electronics with a control unit that gives the user easy operation and gives the technician a clear overview during servicing.
- Heat exchanger made of highly resistant and durable aluminum-silicon alloy.
- Water preparation in an external indirectly heated storage tank with an integrated 3-way valve.
- Option to connect a concentric pipe for flue gas / combustion air Ø 60/100 mm or Ø 80/125 mm, or a separate pipe Ø 80 mm.
Technical data
Front panel color: white
Max. rated heat output (50/30° C): 21,6 kW
Min. rated heat output (50/30° C): 8,0 kW
Rated heat output: 20,3 kW
Max. hot water output: 20,3 kW
Sound power level according to ErP15: 46 dB (A)
Seasonal space heating efficiency
according to ErP15: 93 %

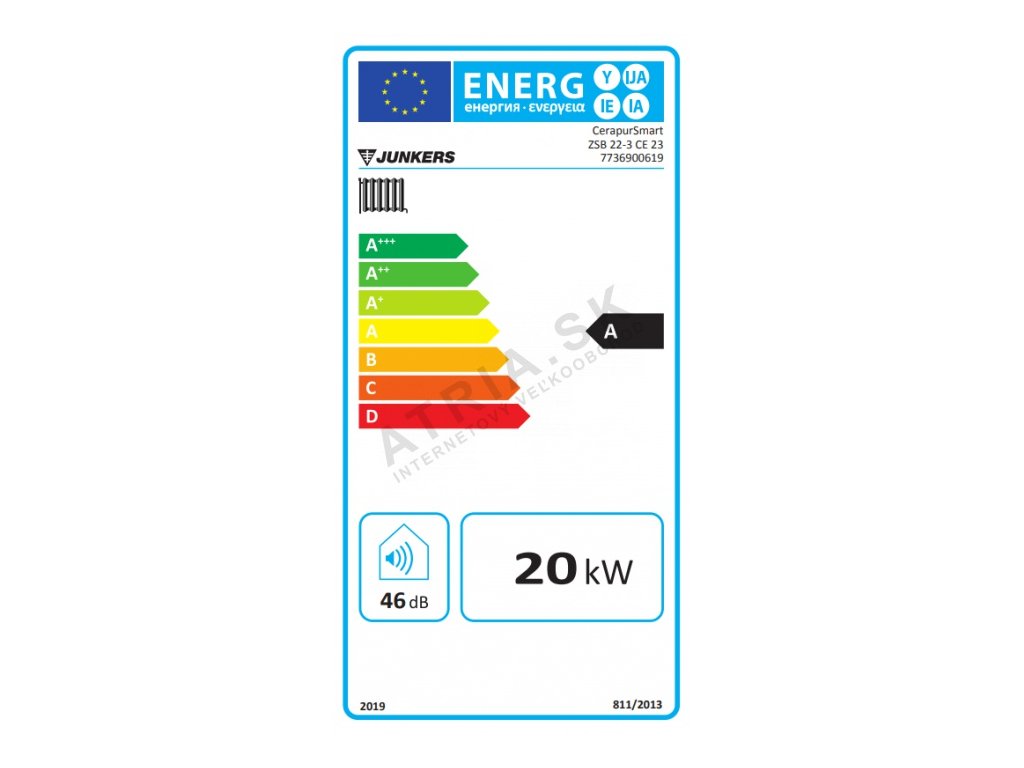

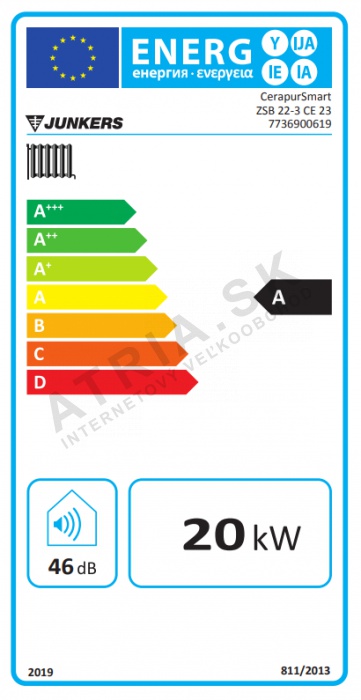

Energy efficiency class: A
Equipment
Expansion vessel: 8,0 l
High-efficiency pump EEI ≤ 0,23: integrated
Switching valve: integrated

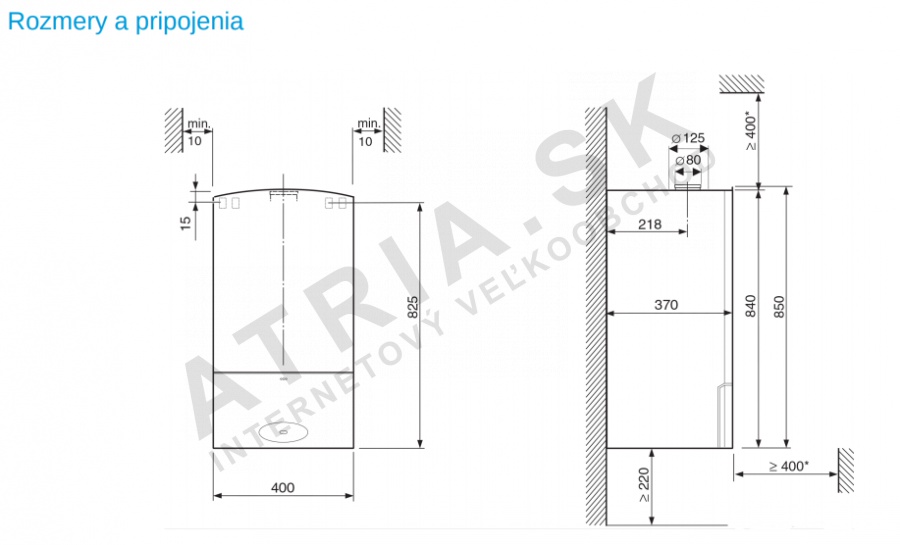

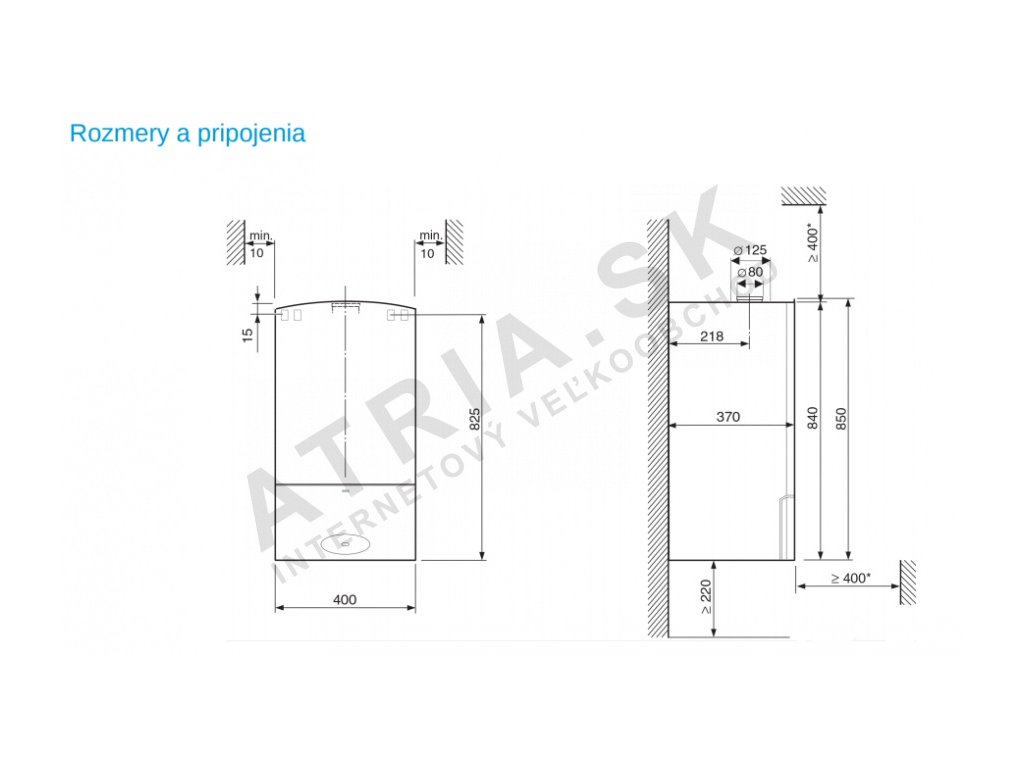

Dimensions and weight
Height: 850 mm
Width: 400 mm
Depth: 370 mm
Net weight: 41 kg

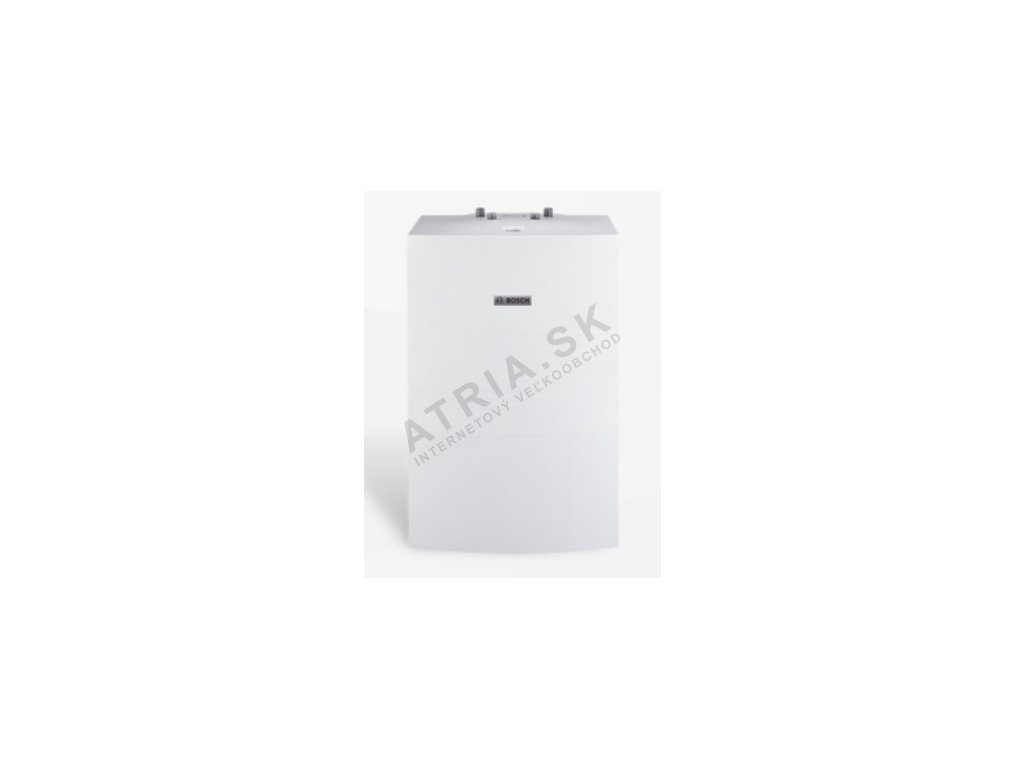

BOSCH WD 120 B
- hot water storage tank
- volume: 115 l
- color: white
- design: stationary, rectangular
- with a usable volume of 115 l
- suitable for combination with a wall-mounted condensing boiler
- option to draw hot water at several points at the same time
- easy installation and economical operation
- option to connect the circulation circuit directly from the tank body (bacteriologically clean water)
- insulation produced without the use of fluorinated and chlorinated hydrocarbons
- high resistance to corrosion
- enamelled surface and built-in protective anodes ensuring compliance with environmental requirements and a long service life
Technical data
Color: white
Usable volume: 115 l
Heating coil output: 25,1 kW
Amount of 45 °C hot water: 490 l/h
Heating water volume: 4,4 l
Heating surface: 0,63 m2
Max. water operating pressure: 10,0 bar

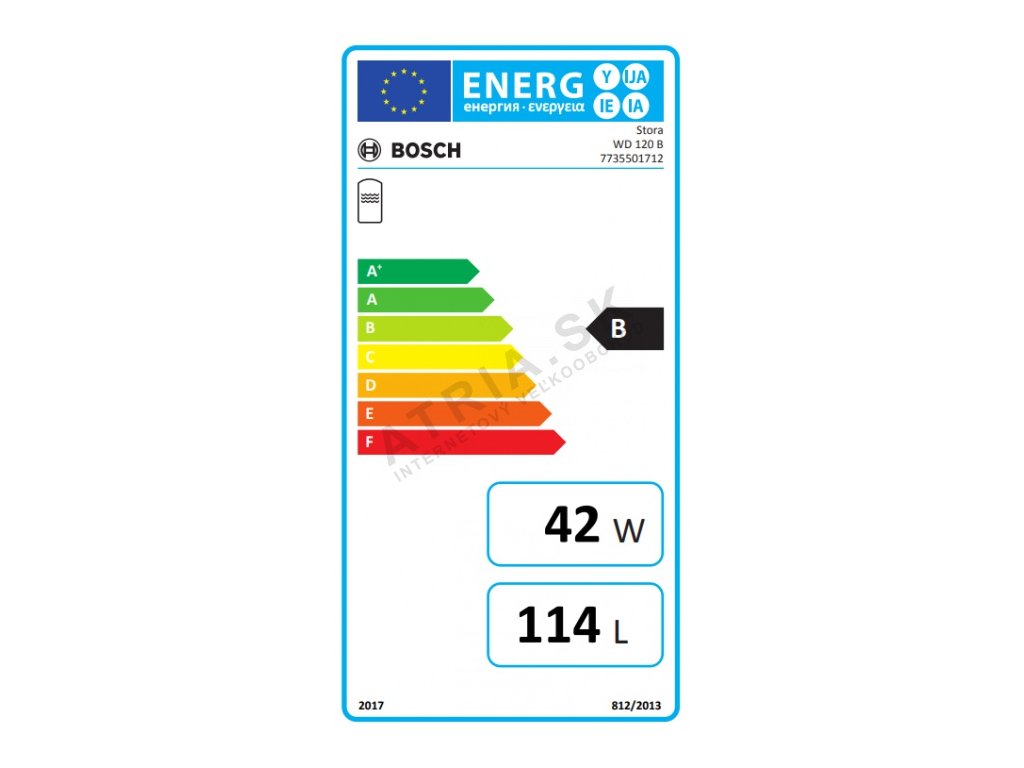

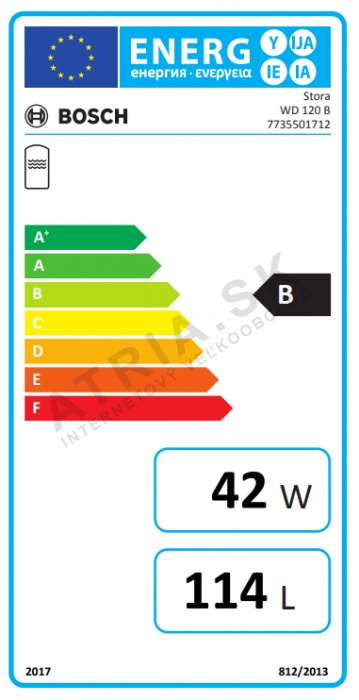

Energy efficiency class: B

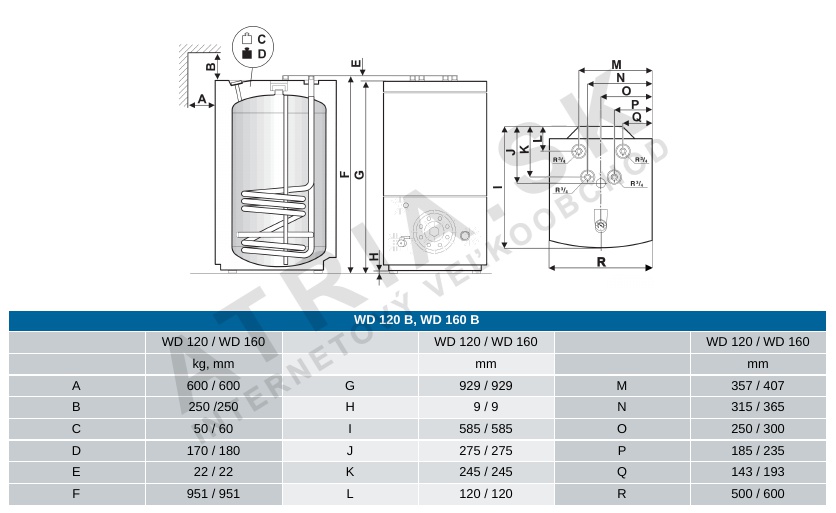

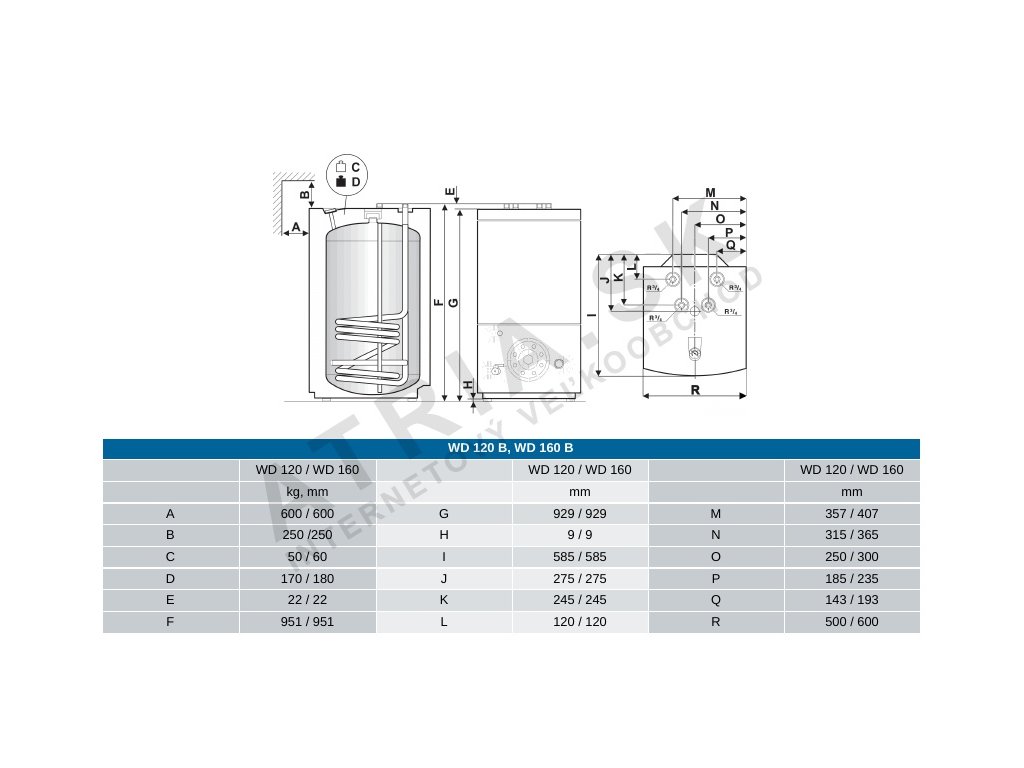

Dimensions and weight
Height: 929 mm
Width: 500 mm
Depth: 585 mm
Net weight: 50 kg

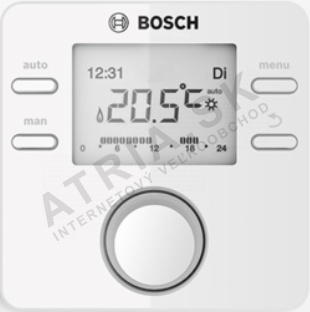

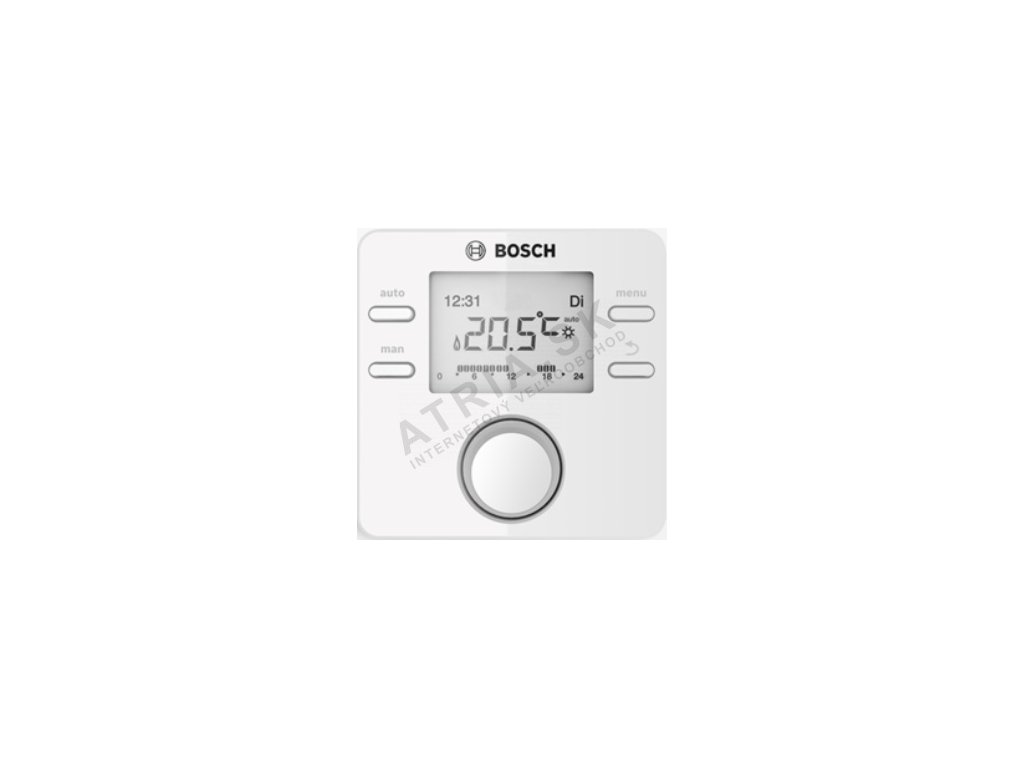

BOSCH CW 100 - weather-compensating controller
- controller with a weekly program
- controlled according to room temperature for one mixed or unmixed heating circuit with hot water preparation, and optionally with a basic solar system
- can also serve as a remote control for the CW 400 controller
- weekly heating program with 6 switching points during the day
- two adjustable temperature levels
- compatible with the MM 100 and MS 100 modules
Technical data
Temperature controller class: VI
Controller's contribution to the seasonal space heating energy efficiency: 4 %
Bus EMS2: yes
Rated voltage: 24 V DC
Rated current: 6 mA
Temperature range: 5 - 30 °C
Protection class: III
Protection rating: IP 20
Width: 94 mm
Height: 94 mm
Depth: 25 mm
Updated model succeeding the FW 120 produced until 2015
Outdoor sensor included
Additional parameters
| Category: | CerapurSmart |
|---|---|
| Warranty: | 2 years |
| Weight: | 103.95 kg |
| EAN: | 4054925909982 |
| Automatic diagnostic system: | yes |
| Safety thermostat: | yes |
| Included accessories: | power cable, manual, warranty card |
| Electrical protection rating: | X4D |
| Electronic ignition: | Yes |
| Electronics: | Bosch Heatronic |
| ? Expansion vessel: | 8-litre |
| Weight of empty boiler: | 41 kg |
| Upper boiler output: | 22 |
| Country of origin: | EU |
| Summer mode: | Yes |
| Condensate quantity: | 1,2 l/hod |
| Two-point control option: | no |
| Pump output adjustment option: | Yes |
| Option to convert to LPG: | Yes |
| Option to operate without a thermostat: | Yes |
| Option to connect a wireless thermostat: | Yes |
| Option to connect solar: | yes |
| Storage tank connection option: | yes |
| Extended warranty option: | yes |
| Boiler output adjustment option: | yes |
| Recommended heating filter: | Total filter 3/4" |
| Recommended controller: | Junkers FW 120 |
| Recommended solar set: | HEWALEX |
| Flue design: | TURBO |
| Power output curve: | modulated |
| Electrical voltage connection: | 230V |
| Concentric flue connection: | yes |
| Separate flue connection: | yes |
| DHW connection port: | 1/2" |
| Water connection port: | 3/4" |
| Dimensions: | 850 x 400 x 370 mm |
| Lower boiler output: | 8 |
| Boiler commissioning: | by a JUNKERS service technician |
| Boiler intended use: | boiler set with a 120 l storage tank |
| Permanent pilot flame: | no |
| Suitable for underfloor heating: | yes |
| DHW output: | 13 |
| Built-in water filter: | no |
| Boiler heating output: | high output above 16 kW |
| Manufacturer: | Bosch |
| EAN: | 4054925909982 |
| Gross weight: | 103.95 kg |
