Buderus Logamax plus GB122 - 15i + Logalux S120 + Logamatic RC200

Product detailed description

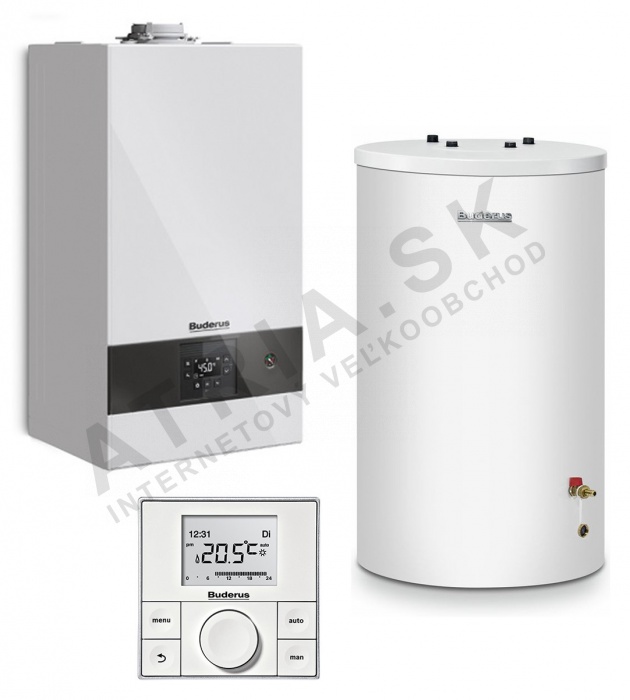

Buderus Logamax plus GB122 - 15i+ Logalux S120 + Logamatic RC200 + magnetic filter
Also known as Buderus Basic 15

Buderus Basic 15 Set

The Praktik set includes:

• Logamax plus GB122-15i condensing boiler + magnetic filter
• Logalux S120 tank
• Logamatic RC200 room controller
• DHW temperature sensor

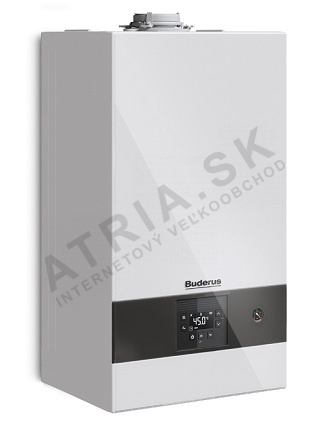

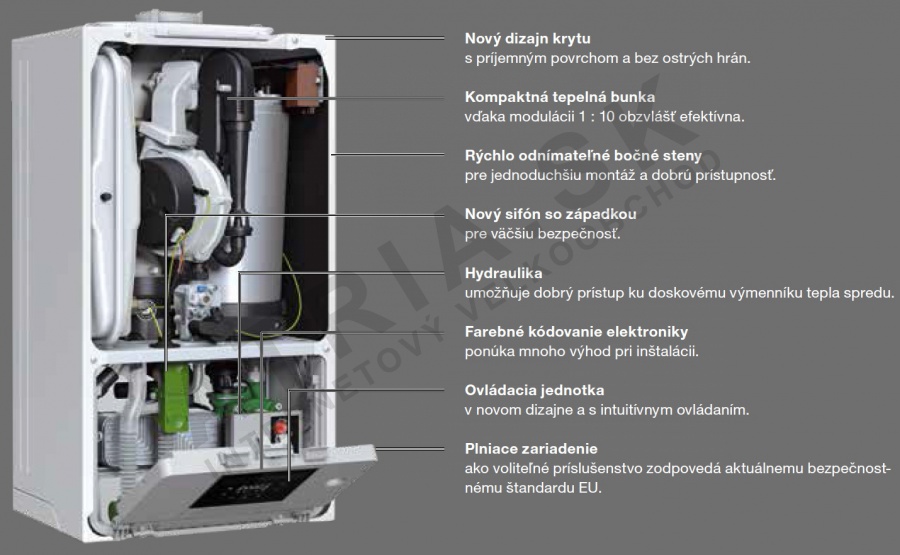

Logamax plus GB122-15i condensing boiler

The Logamax plus GB122 wall-mounted gas condensing boiler is exceptionally adaptable:

• it only consumes as much energy as is needed
• it is suitable for existing connections
• it is compact and fits into any room, however small

Nominal heating output: 15 kW

Efficiency: 93 %

Weight: 34 kg

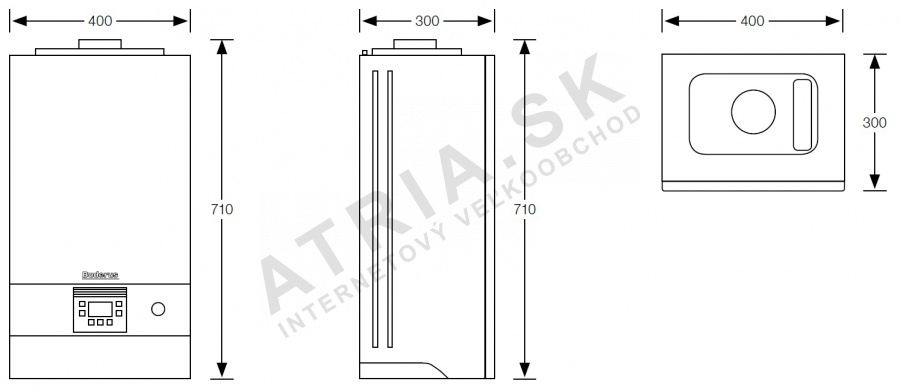

Dimensions: 710 x 400 x 300 mm (H x W x D)

Click this text for the remaining technical information

Overview of advantages:

• a robust and compact all-in-one solution
• an exceptionally wide modulation range
• high energy efficiency: energy label A+ with weather-compensated control

At a glance:

• Exceptionally adaptable - a wide modulation range generates high hot-water comfort and a constant heating load.
• Efficient operation - good product insulation ensures low heat losses. Together with weather-compensated control, exceptionally efficient operation is achieved (energy label A+) and low standby consumption is guaranteed.
• Compact and flexible to use - thanks to a very low noise level achieved through good, high-quality insulation, and its compact dimensions, the appliance can be installed in small rooms such as a hallway or corridor, kitchen or bathroom.
• Another advantage - a solid, functional design.

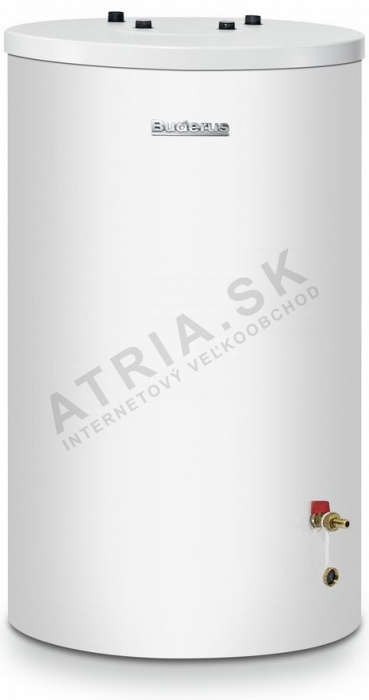

Logalux S120/5 W hot water tank

A 120-litre hot water tank in a floor-standing design with an integrated heat exchanger.

Usable volume: 115 l

Output characteristic: 1,2

Continuous output: 34 kW

Weight: 72 kg

Dimensions: 980 x 550 mm (H x Diameter)

Overview of advantages:

• High hot water heating comfort with a space-saving installation.
• Small installation footprint, since it is placed underneath the wall-mounted gas boiler.
• DUOCLEAN MKT thermal enamel for optimal drinking water hygiene.
• CFC-free thermal insulation minimises cooling losses in standby mode.

Overview of details:

• The heating coil and tank are protected against corrosion on the inside by Buderus Duoclean MTK thermal enamel and an additional magnesium anode.
• At the front, with a hand-hole cover, an immersion sleeve for the temperature sensor, a drain valve, and polyurethane foam insulation.
• Internal piping (connections) made of copper pipes.

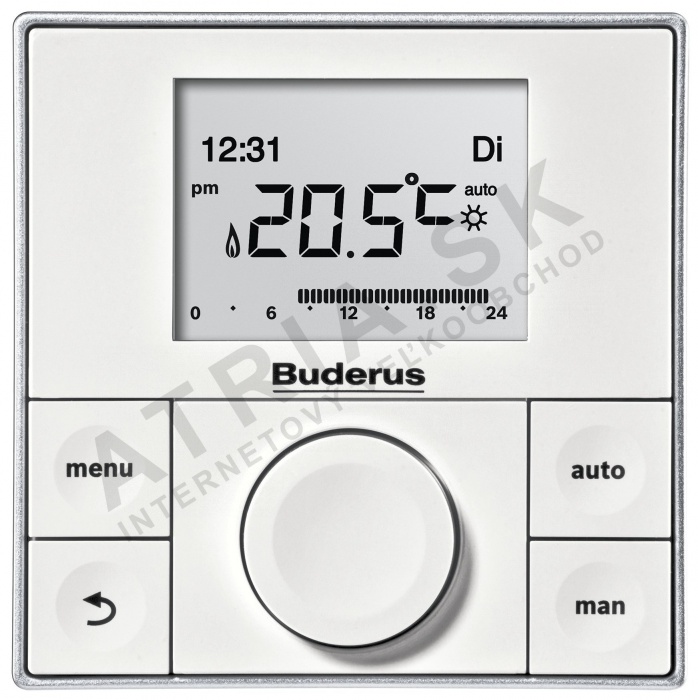

Logamatic RC200 room controller

Clear and easy menu navigation.

Can be used as a remote control (in combination with the RC300).

Or as a controller with a favourable price-to-performance ratio for a maximum of one heating circuit (with/without mixer), a hot water tank and solar-assisted drinking water heating.

Solar optimisation for hot water.

Simplified commissioning thanks to the configuration assistant.

Individually adjustable time program.
