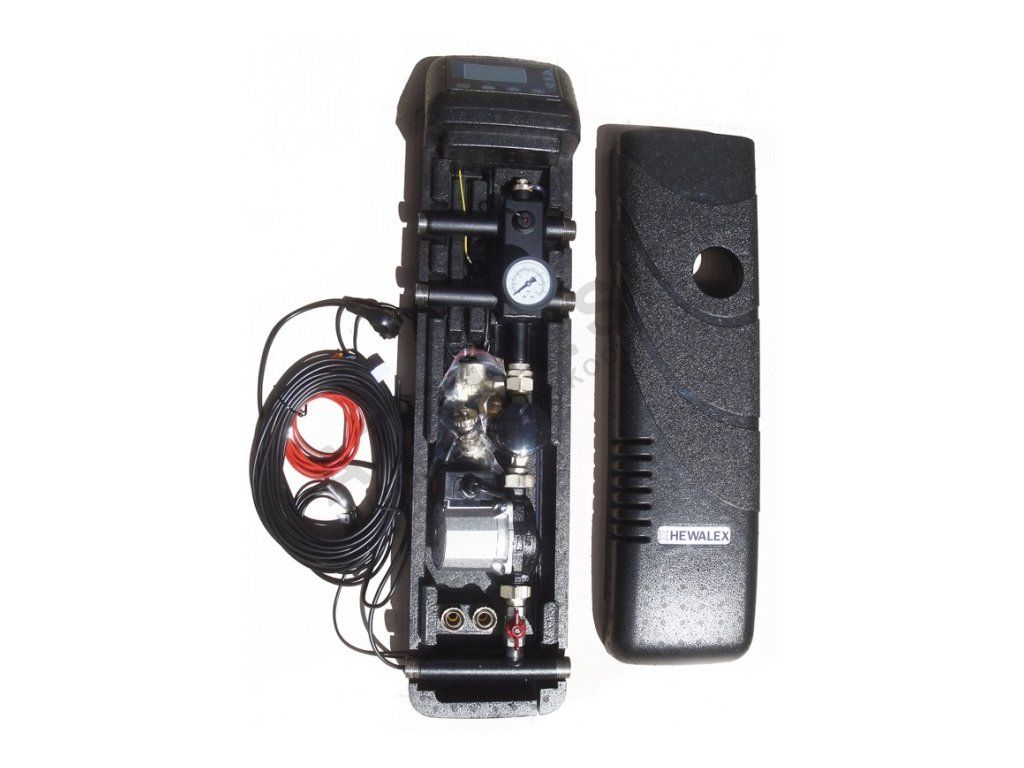

Control station ZPS 16

Product detailed description

Digital control unit for solar heating, for up to 10 collectors. (v. 2016)

Version with electronic circulation pump Wilo-YonosPARA ST 15/7.0 PWM2 M

The manufacturer declares that the product complies with the European standard PN-EN 60335-1:2004 on the safety of electrical products for use in households and similar settings. It also declares that the product can be used together with solar collectors and complies with the standards LWD 2006/95/WE and EMC 2004/108/WE.

 would you rather see a classic thermostat for solar systems?

The product is designed to control a solar system for transferring the heating medium at a flow rate of 6, 16 or 28L/min, depending on the controller type, according to the manufacturer's instructions for use and the devices intended for it.      The unit is compactly built into thermal insulation made of polypropylene.

Installation and transport:

The control unit with pump must be stored in a dry, covered place, protected from weather effects and moisture. Connection to the pipe system must be carried out according to the pump connection diagram. The system must use ERGOLID antifreeze mixture

Technical parameters:

• Dimensions: 840 x 240 x 145mm
• Weight: 8.5kg
• Maximum working overpressure: 16bar
• pump: Wilo-YonosPARA ST 15/7.0 PWM2 M

Warranty conditions:

         The manufacturer provides a warranty on the device for a period of 2 years from the date of sale by the installation company.

1. Under the warranty, the customer has the right to a free replacement or repair of parts caused by a manufacturing defect.
2. Defects covered by the warranty will be repaired, or the part replaced, within 14 days from the date the defect is confirmed by the seller.
3. The warranty does not cover:

• defects caused by improper installation not in accordance with the instructions for use
• defects caused by installation by unqualified persons
• defects caused by running the pump „dry“
• defects caused by mechanical damage
• defects caused by fire, floods and other  unforeseeable events

Please keep the warranty card with confirmations in a safe place. In the event of a claim, you must submit a completed warranty card together with proof of purchase (tax document).
