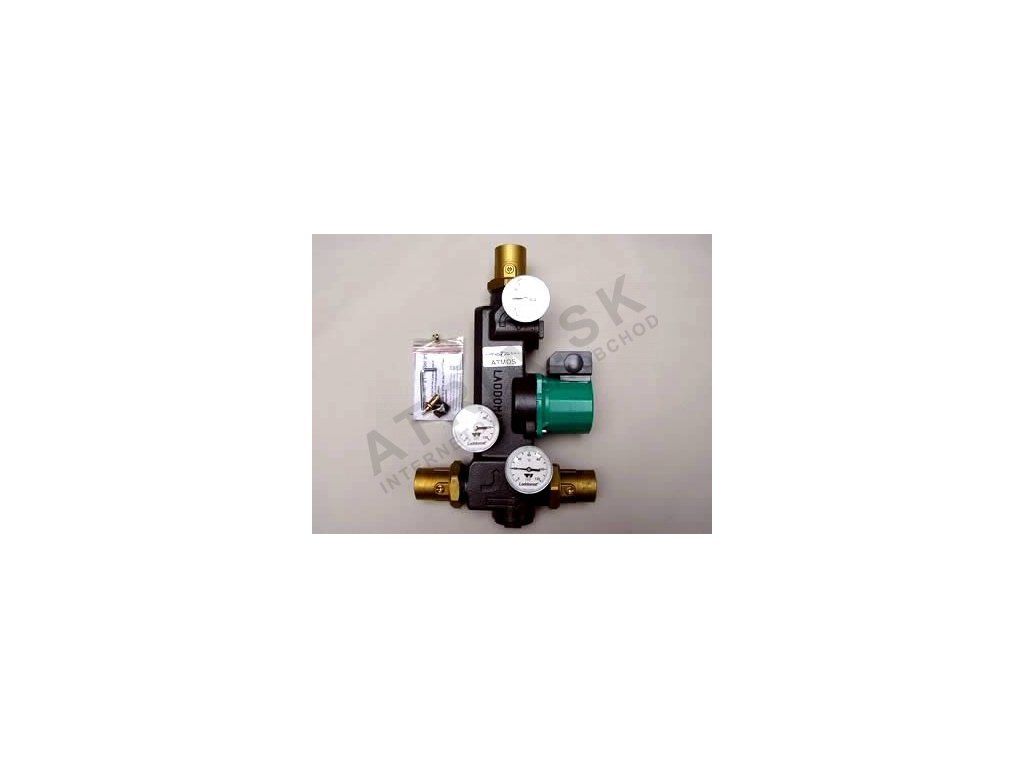

Ladomat 61 °C - Check Valve
Code: 4725Product detailed description
Ladomat for the boiler 61 °C - check valve
- prefabricated, automated, thermally controlled circulation unit for solid fuel boilers and heating;
- the TERMOVAR circulation unit controls the minimum temperature of the medium entering the boiler and increases its efficiency, prevents fouling and substantially extends the service life of the solid fuel boiler;
- eliminates the risk of thermal shocks caused by the inflow of cold water;
- ensures more efficient combustion of solid fuels, and is therefore a necessary part of the heating system with a storage tank.
- Voltage: 230 VAC 50/60 Hz
- Power input: 45 VA
- Max. boiler capacity: 80 kW
- Max. operating temperature: 110°C
- Max. operating pressure: PN 6
- Opening temperatures 45°C, 55°C, 61°C, 72°C or 80°C
- Pump UPS 25-60
- Connection sizes: RP 1", RP 5/4" and 28 mm
- Unit dimensions: 210 x 210 x 110 mm
- Weight: 5,0 kg
Included in delivery:
- Thermally controlled filling valve
- Backflow protection
- Thermoregulatory pump
- Three thermometers
- Three ball valves
Additional parameters
| Category: | Ladomat controllers, controls |
|---|---|
| Warranty: | 2 years |
| Weight: | 5 kg |
| The item has been sold out… | |
Product rating
Be the first who will post an article to this item!
Discussion
List of discussions
I
ivan
ivan
Popis tovaru Napätie: 230 VAC 50/60 Hz Príkon: 45 VA Max. kapacita kotla: 80 kW Max. prevozná teplota: 110°C Max. prevozný tlak: PN 6 Otevírání teplot 45°C, 55°C, 61°C, 72°C nebo 80°C ako nahradny diel potrebujem termopatronu 55st.dakujem.,
A
atria
atria
Dobrý deň, Náhradné diely k Ladomatu žiaľ nepredávame. Prajem pekný deň.
