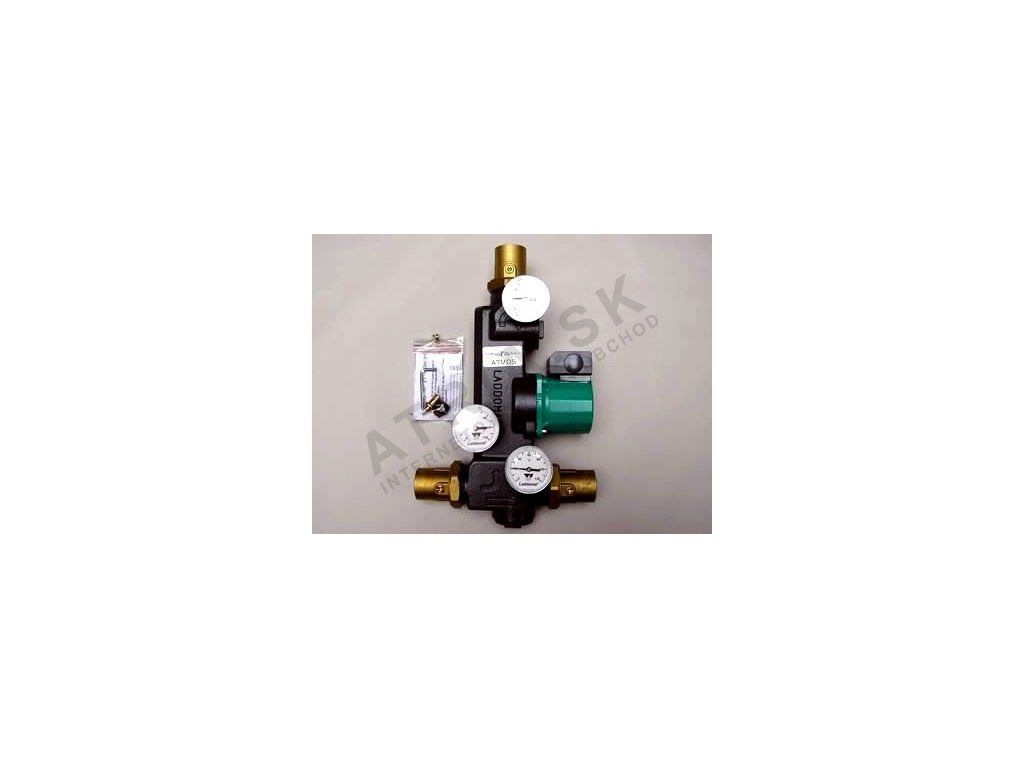

Ladomat 72 °C - Without Check Valve
Code: 4825SProduct detailed description
Ladomat for the boiler 72 °C - without check valve
- prefabricated, automated, thermally controlled circulation unit for solid fuel boilers and heating;
- the TERMOVAR circulation unit controls the minimum temperature of the medium entering the boiler and increases its efficiency, prevents fouling and substantially extends the service life of the solid fuel boiler;
- eliminates the risk of thermal shocks caused by the inflow of cold water;
- ensures more efficient combustion of solid fuels, and is therefore a necessary part of the heating system with a storage tank.
- Voltage: 230 VAC 50/60 Hz
- Power input: 45 VA
- Max. boiler capacity: 80 kW
- Max. operating temperature: 110°C
- Max. operating pressure: PN 6
- Opening temperatures 45°C, 55°C, 61°C, 72°C or 80°C
- Pump UPS 25-60
- Connection sizes: RP 1", RP 5/4" and 28 mm
- Unit dimensions: 210 x 210 x 110 mm
- Weight: 5,0 kg
Included in delivery:
- Thermally controlled filling valve
- Backflow protection
- Thermoregulatory pump
- Three thermometers
- Three ball valves
Additional parameters
| Category: | Ladomat controllers, controls |
|---|---|
| Warranty: | 2 years |
| Weight: | 5 kg |
