Protherm Panther Condens 15 KKO

Product detailed description

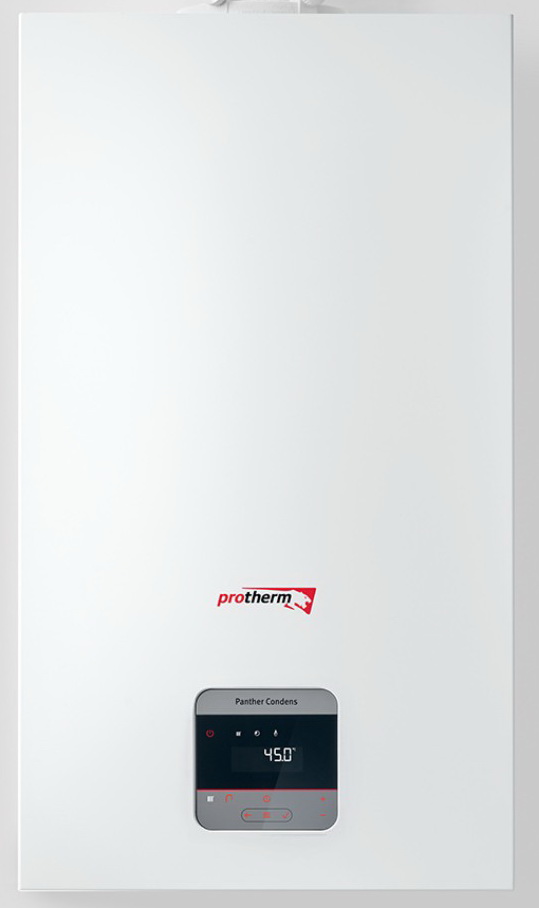

Protherm Panther Condens 15 KKO
- wall-hung condensing boiler with the option to connect an external cylinder
- output: 2,4 - 14,9 kW

With the new condensing boiler Panther Condens you get a heating system that will not let you down. Discover with us the benefits and advantages of top-tier condensing technology for comfortable hot water preparation and lower heating costs.

NEW DESIGN OF THE PANTHER CONDENS BOILERS

NEW FEATURES



New FlameFit optimum combustion technology - higher efficiency, lower flue gas emissions, lower gas consumption - a technology focused on the optimum combustion of various types of gas supplied from different sources with varying quality and composition.



New casing design - a refreshed boiler design (casing, control panel), while the footprint and connection dimensions were kept the same as in the previous boiler version, to make quick and easy boiler replacement possible.



New control panel design - a panel look matching the new eBUS controllers, touch buttons, a backlit display, and simple, intuitive control and setup, whether for the customer or the service technician.



Smart shower function - the combi boiler ensures comfortable DHW preparation while showering, so that even during an interruption in the DHW supply to the shower (e.g. while soaping up) it keeps waiting for further DHW draw-off and does not switch to heating even if there is a demand (it waits 3 minutes).



Accessory connectivity - easy connection and quick fitting of external control accessories such as an internet gateway and/or a wireless room controller, without needing to open the boiler casing, even for the end customer.



Compatibility with the latest eBUS controllers - the control panel look matches the look of the new eBUS controllers, similar controls and easy operation.





COMFORT FUNCTION





Comfort function ensures fast hot water delivery to the draw-off point by permanently keeping the primary circuit between the primary and plate heat exchangers heated. This removes the additional lag otherwise needed to initially heat up the plate heat exchanger once a DHW demand is registered. In this way the boiler is permanently ready to deliver DHW, guaranteeing increased comfort for the customer.













Fast hot water delivery to the draw-off point - saving time and water









































THE "SMART SHOWER" FUNCTION (soaping function) - KKV combi boiler



- The function "Smart shower" consists of a 3-minute

delay before the combi boiler switches from DHW mode

DHW mode to heating mode.

The boiler waits in case the shower continues.



- This prevents the DHW circuit from cooling down too quickly by

switching to heating (this happens when there is an immediate

switch to the heating system, when the DHW draw-off stops even

DHW draw-off stops).



- Thanks to this delay, any further draw-off within 3 minutes

the temperature of the hot water drawn off does not change.



- Interrupting the DHW draw-off during a shower therefore has no

effect on temperature stability and comfort while showering.



This permanently ensures comfortable hot water delivery even when the boiler has to switch from DHW preparation mode to heating mode.





ACCESSORIES - New room and system controllers



The new range of eBUS controllers has a similar look to the boilers' control panel:

































• MiPro Sense: a system controller for standard use in larger heating systems



• MiSet: wired or wireless room controllers for the weather-compensated control of single-circuit heating systems (with an outdoor temperature sensor connected as an optional accessory)





Note: Accessories are not included in the package, can be ordered separately.





PARAMETERS

	Panther Condens 15 KKO
Heating
Output at 50/30°C flow temp [kW]	2,7 - 16,4
Output at 80/60°C flow temp [kW]	2,4 - 14,9
Adjustable heating water temperature range [°C]	15 - 80
Max. operating pressure, heating [MPa]	0,3 MPa (3,0 bar)
Expansion vessel [l]	8
NOx class	6
Heating energy class	A
Hot water preparation
Maximum output for hot water preparation [kW]	19,4
Adjustable DHW temperature range* [°C]	45 - 60*
Electrical parameters
Voltage/frequency [V/Hz]	230/50
Maximum electrical input [W]	72
Standby input [W]	2
Electrical protection rating [IP]	IPX4D
Dimensions
Gas connection	G 1/2"
Heating connections	G 3/4"
Cold/hot water connections on the boiler side	G 3/4"
Safety valve connection [mm]	15
Condensate drain hose [mm]	21,5
Unit dimensions (W/H/D) [mm]	418/740/344
Weight without water [kg]	29,2

*For system boilers with an external cylinder

Frequently asked questions

• How exactly do I choose the output of a PROTHERM condensing boiler? The starting point is the calculated heat loss of the building being heated (most reliably taken from the project documentation or an energy certificate). If you don't have a project, you can roughly estimate 60-100 W per m² of floor area for a normally insulated house built after 2000, or 100-150 W/m² for an older, uninsulated house - the exact figure varies depending on the number of floors, ceiling height, the number and quality of windows, and the building's orientation. An oversized boiler switches on and off more often (so-called cycling), which shortens its lifespan and reduces efficiency; an undersized boiler, on the other hand, cannot heat the house sufficiently on frosty days.
• Why is a condensing boiler more economical than a conventional one? A condensing boiler also makes use of the heat hidden in the water vapour produced when gas is burned - in a conventional boiler this vapour escapes unused through the flue, while in a condensing boiler it is cooled below the so-called dew point, the vapour condenses, and the released heat is returned to the heating circuit. Thanks to this, condensing boilers achieve an efficiency of roughly 105-110% relative to the calorific value of the gas, compared to the usual 85-92% for conventional boilers.
• What type of flue gas exhaust does this boiler need? Most modern condensing boilers are so-called turbo boilers (with a sealed combustion chamber) and require a concentric (coaxial) or separate flue gas exhaust and combustion air intake routed through an external wall or the roof - so a functional chimney is not required. You will find the exact type and maximum length of the flue (based on a diameter of 60/100 or 80/125 mm) in the technical documentation for the specific model, or you can consult our customer service.
• What does the ErP energy class shown for the boiler mean? This is the mandatory efficiency label for heating appliances under the EU ErP (Ecodesign) directive, similar to the energy labels on refrigerators. Condensing boilers commonly achieve class A, or even higher in combination with room controls (e.g. A+ when using weather-compensated control and a room thermostat).
• Can I install and connect this boiler myself? No. Connecting to the natural gas supply, the electrical network and the flue gas exhaust must, by law, be carried out exclusively by a person with the relevant qualification (most often an authorised service technician of the given brand or a gas appliance inspection technician). After installation, the boiler must be commissioned by the manufacturer's authorised service, which is usually also a condition for the warranty to be valid.
• What about servicing and the warranty? Most manufacturers require a regular annual service inspection by an authorised service provider so that the warranty remains valid even after its standard expiry (an extended warranty subject to regular servicing is common especially for the Vaillant, Protherm and Viessmann brands). You will find the exact warranty terms in the warranty certificate supplied with the boiler.
• What is included in the delivery of this specific product? The exact contents of the package (the boiler itself, possibly a hot water tank, room controls and other accessories in the case of a set) are stated in the product name and in its technical parameters above on this page.
