Radiator connector - angled 15 x EK
Code: HH2/15Product detailed description

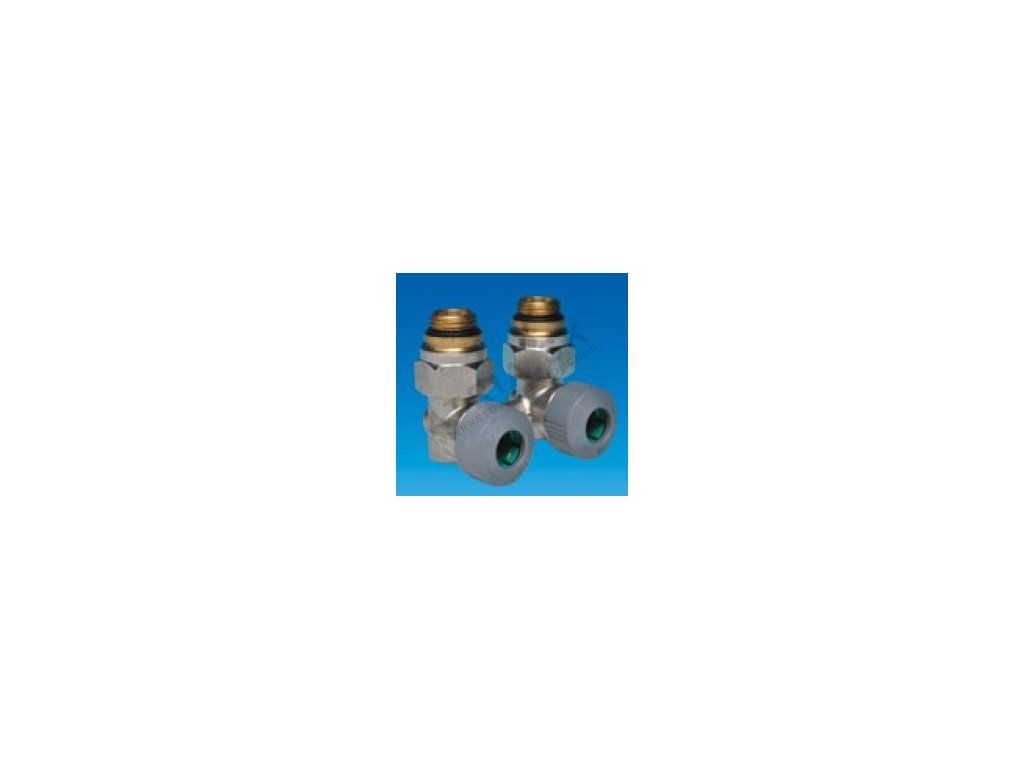

Radiator connector "H" - angled
This fitting is used to connect a radiator to the pipe. Only 15 mm diameter HEPWORTH system pipes marked HXX25/15, or HXX50/15. Before inserting the pipe into the fitting, the pipe must be reinforced with a support insert, a liner HX60/15. Installation instructions are shown in the installation video below.
Note: the VK fitting also includes EK x 1/2" inserts for the radiator
Number of auxiliary inserts for installation HX60/15: 2 pcs
 |
The most important facts about the HEPWORTH system that you should know for DIY installation. | ||
 |
Fully demountable system. | ||
| This means you can assemble the system, later disassemble it and reassemble it again. This is useful if you are not entirely sure about the heating installation. | |||
|
Installation without any tools. | ||
|
One of the biggest advantages of the system is tool-free installation. This means the pipe is simply pushed into the fitting and the internal jaw mechanism secures it in place. To disassemble, we simply unscrew the fitting, slide the jaws off the pipe, then reassemble and tighten the fitting again, and it is ready for use once more. |
|||
|
Universal use for all types of heating. | ||
| All couplings, tees, elbows and pipes are made of polybutylene, which means you can use them for radiator heating installations, underfloor heating, or domestic hot water (DHW) distribution. All diameters are backward compatible. | |||
|
Pipe made of polybutylene. | ||
| Polybutylene - the oldest and, to date, the best-proven material for heating and water distribution. | |||
|
Pipes with an oxygen barrier | ||
| All pipes are manufactured with an EVOH oxygen barrier, which prevents oxygen molecules from penetrating into the heating system. After a few years, oxygen causes corrosion of the boiler and degradation of the heating system. The oxygen barrier prevents this problem. | |||
|
Polybutylene is one of the most hygienic materials | ||
| In terms of hygiene, polybutylene achieves the best results. |
Additional parameters
| Category: | radiator valves |
|---|---|
| Warranty: | 2 years |
| Product replaced by new one:: | https://www.atria.sk/vk-armatura--rohova-ek-x-1-2/ |
