Stiebel Eltron PSH 80
Code: 231152Related products
Product detailed description

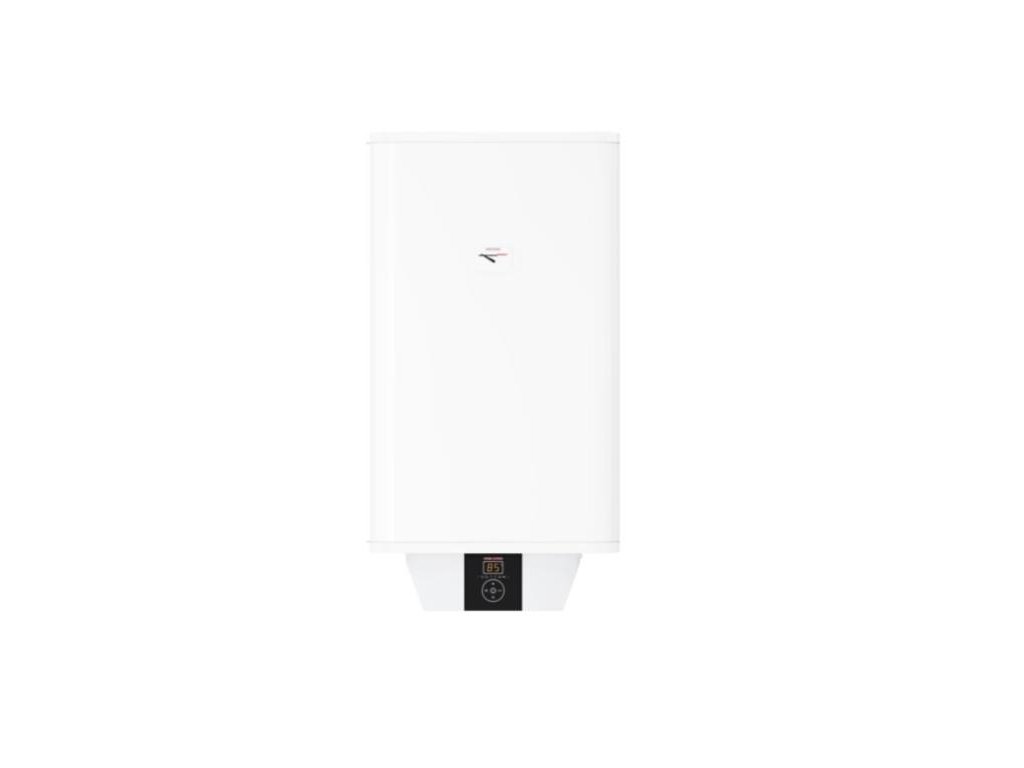

Stiebel Eltron PSH 80 Universal EL
- replacement for Tatramat EO 80 EL
- electric wall-mounted water heater with fast heating and electronic regulation
- volume: 80 litres
- output: 2 - 3 kW
Wall-mounted pressurized storage water heater with an enamelled steel tank in a square design. Its stainless steel flange with heating element is fitted with magnesium anti-corrosion protection.
Appliance is controlled by electronic regulation. The electronics feature three ECO programmes ensuring energy savings, plus other features such as: frost protection, maximum temperature limitation and fast heating. Using the electronics, the temperature can be adjusted continuously from 7 up to 85 °C. The heater is designed for vertical installation.
Easy installation, control and maintenance
- universal bracket
- option to install above a bathtub
- the most modern design with intuitive controls
- option to set the optimal heating temperature
Multi-stage protection
- protection against freezing of the water
- protection against overheating of the heater with reset function
- function maximum temperature limitation
- safe button lock to prevent unwanted operation (child lock)
- protection rating IP25
Long service life
- stainless steel flange with a stainless steel heating element
- special enamel CoPro - double-sided enamelling
- anode protection against corrosion
User comfort
- fast-heating function for especially fast heating
- option selection of operating mode (single-shot heating, single-circuit or dual-circuit operating mode)
- function feedback control for efficient use of the low (off-peak) tariff
- backlit display
The latest generation of intelligent electronics
- three-stage energy-saving function
- function ECO Comfort
- function ECO Plus
- function ECO Dynamic
Economy and low energy consumption
- thermal polyurethane insulation
- electronic regulation
Description and dimensions
DescriptionRozmer
| Description | Dimensions |
| 1. Outlet pipe | A = 475 mm |
| 2. Outlet pipe | B = 893 mm |
| 3. Temperature indicator | C = 85 mm |
| 4. Electronic control | D = 592 mm |
| 5. Anode | E = 78,5 mm |
| 6. Heating element | F = 0 mm |
| 7. Universal bracket (Accessory) | G = universal bracket (Accessory) |
| Parameters | PSH 80 | |||
|---|---|---|---|---|
| Nominal volume (l) | 80 | |||
| Heating method | electric | |||
| Version | pressurized | |||
| Nominal tank overpressure (MPa) | 0,6 | |||
| Electrical connection | 1/N/PE ~ 230 V | |||
| Power input (kW) | 2/3 | |||
| Amount of 40 °C mixed water (l) | 141 | |||
| Approx. electric heating time from 15° to 65 °C at 3 kW input (min) | 85 | |||
| Heat losses (kWh/24h) | 0,72 | |||
| Weight (kg) | 31 | |||
| Electrical protection rating | IP 25 | |||
| Energy efficiency class | B | |||
| H x W x D (cm) | 89,3 x 47,5 x 47,5 | |||
Frequently Asked Questions
- What tank volume should I choose? A common consumption estimate is roughly 40-50 litres of hot water (at about 40-45 °C) per person per day under standard use (showering, washing); if you take baths or have more bathrooms/outlets, plan for a larger volume. When choosing, also consider whether the tank will be reheated by a high-output boiler (faster heating, a smaller volume may be enough) or, for example, only by a solar system (in which case a larger volume is actually worth it for storing heat during the day).
- Can I connect this TATRAMAT tank to my existing boiler? In most cases yes, but you should check the compatibility of the hydraulic connection (dimensions and type of fittings) and whether your boiler supports controlling the tank's heating (a temperature sensor in the tank and possibly a diverter valve are required) - you'll find these details in the product's technical parameters, or our customer service can advise you.
- Where and how is the tank installed? The tank is placed as close as possible to the heat source (boiler) to minimise heat losses in the connecting pipework, while still leaving enough space around it for service access (anode replacement, safety valve inspection).
- Does installation have to be done by a professional? We always recommend leaving the hydraulic connection to the water supply and the heat source, including fitting a pressure-rated safety valve, to a qualified heating engineer/installer - an incorrectly fitted or missing safety valve is a safety risk.
