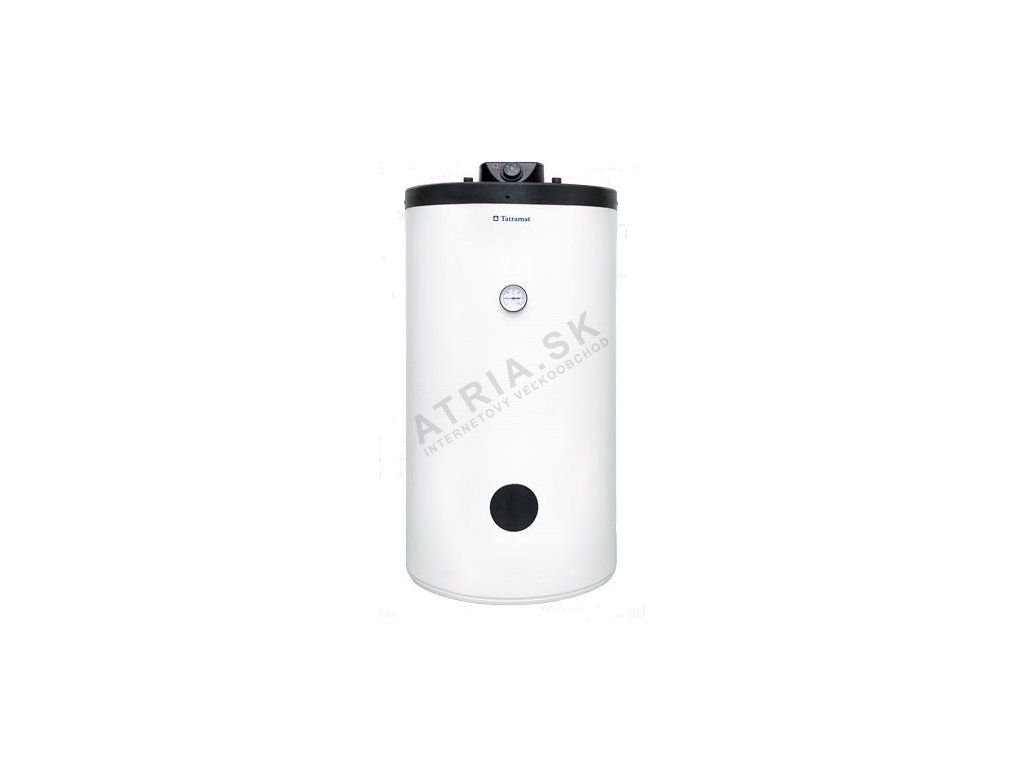

Stiebel Eltron SB-VTH 150 - top outlet
Code: 200155Related products
Product detailed description
Stiebel Eltron SB-VTH 150
- replacement for Tatramat VTH 150
- stationary indirect-heating water heater - top outlet
- volume: 150 litres
- heat exchanger output: 20 kW
Pressurized storage water heaters with indirect water heating are efficiently used mainly where hot water demand is high, with several hot water draw-off points able to be connected to them.
The tank of the heaters is made of solid steel sheet and its interior is protected against corrosion by quality enamel and anode protection.
Water heating by heat exchangers reaching all the way to the bottom of the tank prevents the formation of critical cold zones where pathogens can develop.
In the lower part of the heater there is a fitting allowing for the installation of an additional 2 kW electric heating element.
Simple installation, control and maintenance
- simple connection to wall-mounted central heating boilers
- height-adjustable feet to compensate for an uneven surface
Multi-stage protection
- protection against water freezing
- protection against heater overheating with a reset function
Long service life
- special enamel CoPro - double-sided enamelling
- anode protection against corrosion
User comfort
- fast heating and reheating time
- a large amount of mixed water
- the option to set optimal operation via the central heating boiler thermostat
- the option to install a 2 kW electric heater
Economy and low energy consumption
- thermal polyurethane insulation
Description and dimensions
| Description | Dimensions |
| 1. Heating water inlet (G¾") | A = 1 285 mm |
| 2. Cold water inlet (G¾") | B = 1 213 mm |
| 3. Circulation (G¾") | |
| 4. Hot water outlet (G¾") | |
| 5. Heating water outlet (G¾") | |
| 6. Anode | |
| 7. Thermometer | |
| 8. Rotary temperature controller | |
| 9. Socket for mounting the HP 2/040 flange | |
| 10. HP 2/040 flange with a 2 kW electric
heating element (accessory)
|
| Parameters | SB-VTH 150 | |||
|---|---|---|---|---|
| Volume (l) | 155 | |||
| Heating method | central heating circulation water | |||
| Design | pressurized | |||
| Tank overpressure (MPa) | 1 | |||
| Max. thermostat cut-off temperature (°C) | 80 (- 6) | |||
| Heat exchanger type | tubular | |||
| Heat exchanger overpressure (MPa) | 1 | |||
| Active heat exchanger surface (m2) | 1,0 | |||
| Heat exchanger output (kW) | 20 | |||
| Heat loss (according to EN 60379) (kWh/d) | 1,45 | |||
| Approx. heating time via heat exchanger by 35°C (min) | 23 | |||
| Amount of heated water by 35 °C (l/h) | 480 | |||
| Weight without water (kg) | 73 | |||
| Electrical protection rating | IP 24 | |||
| Energy efficiency class | C | |||
| ø x H (cm) | 52 x 126,7 | |||
Additional parameters
| Category: | Stationary Indirect-Heated Water Heaters |
|---|---|
| Warranty: | 2 years |
| Weight: | 80 kg |
| The item has been sold out… | |
