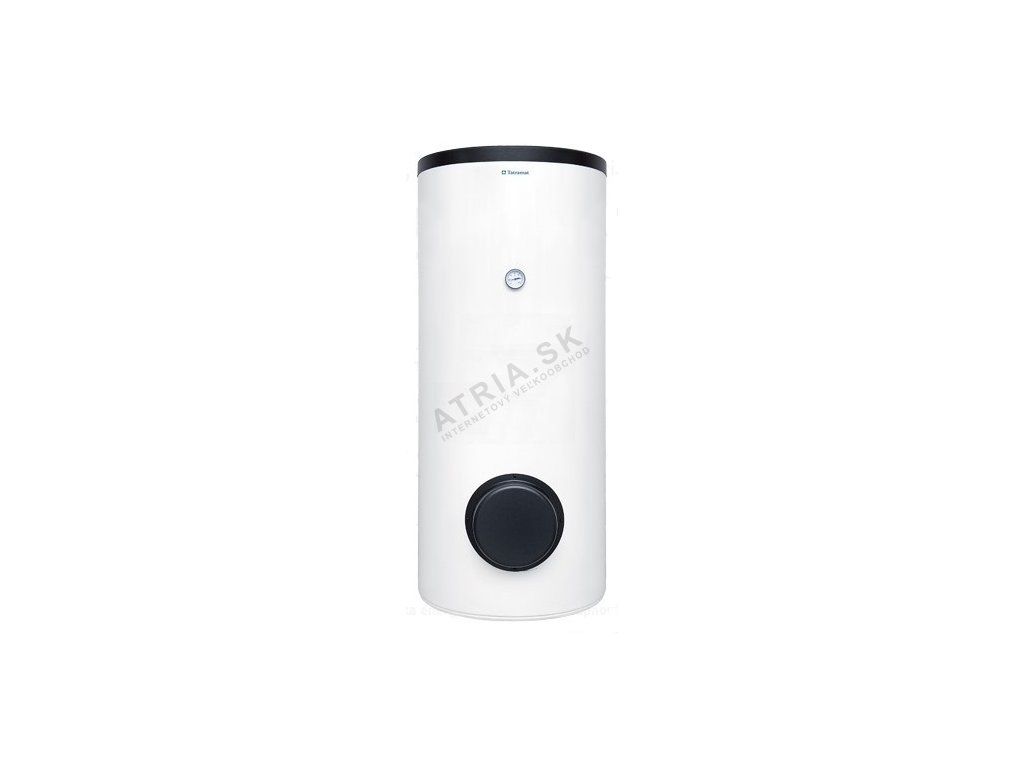

Stiebel Eltron SB-VTI 200 - side outlet
Code: 200158Related products
Product detailed description
Stiebel Eltron SB-VTI 200
- replacement for Tatramat VTI 200
- floor-standing water heater with indirect heating - side outlet
- volume: 200 litres
- heat exchanger output: 40 kW
Pressurized storage water heaters with indirect water heating are effectively usable mainly with high hot water draw-off, with several hot water draw-off points able to be connected to them.
High comfort of hot water preparation is ensured by fast and even heating via the heat exchangers' large heating surfaces. Tank of the heaters is made from solid steel sheet and its interior is protected against corrosion by high-quality enamel and anode protection.
Heating water via heat exchangers reaching right down to the bottom of the heater's tank prevents the formation of critical cold zones with disease-causing germs.
Easy installation, control and maintenance
- simple connection to the heating system
- height-adjustable feet to compensate for surface unevenness
- cleaning flange under the plastic cover
Multi-stage protection
- protection against freezing of the water
- protection against overheating of the heater with reset function
Long service life
- special enamel CoPro - double-sided enamelling
- anode protection against corrosion
User comfort
- visual water temperature check
- heating indicator
- option connection for circulation
- option setting optimal operation via the central heating boiler's thermostat
- option installing a 3 kW electric heating element
Economy and low energy consumption
- thermal polyurethane insulation
- painted sheet-metal outer casing
Description and dimensions
P
1. Cold water (G 1″)
2. DHW (G 1″)
3. Heat exchanger - inlet (G 1″)
4. Heat exchanger - outlet (G 1″)
5. Circulation (G 3/4″)
6. Tube for thermostat sensor (ø9)
7. Cleaning opening (option to install a 3 kW heating element) (ø115)
8. Thermometer
9. HP 3/150 flange with 3 kW electric heating element (Accessory)
10. Protective anode
pisRozmer
| Dimensions |
| A = 1 574 mm |
| D = 550 mm |
| E = 1 033 mm |
| F = 933 mm |
| G = 220 mm |
| H = 102 mm |
| I = 280 mm |
| J = 600 mm |
| Parameters | SB-VTI 200 | |||
|---|---|---|---|---|
| Volume (l) | 200 | |||
| Heating method |
central heating circulation water (option to install an electric heating element 3 kW) |
|||
| Version | pressurized | |||
| Tank overpressure (MPa) | 0,6 | |||
| Heat exchanger type | tubular | |||
| Heat exchanger overpressure (MPa) | 0,6 | |||
| Active heat exchanger area (m2) | 1,33 | |||
| Heat exchanger liquid volume (l) | 8,7 | |||
| Heat exchanger output (kW) | 40 | |||
| Amount of water heated by 35 °C (l/hr) | 980 | |||
| Weight without water (kg) | 96 | |||
| Electrical protection rating | IP 24 | |||
| Energy efficiency class | C | |||
| ø x H (cm) | 52 x 158,8 | |||
Additional parameters
| Category: | Stationary Indirect-Heated Water Heaters |
|---|---|
| Warranty: | 2 years |
| Weight: | 104 kg |
