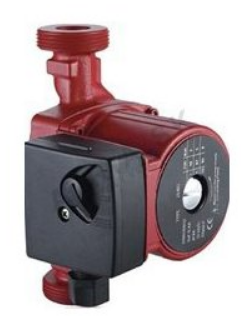

Circulating pump Aquart 32/6/180
Circulating pump AQUART 32/60 180mm is designed for all domestic water piping systems. The pump body is made of cast iron and cast aluminium. It has a high-quality bipolar asynchronous motor that does not require overload protection and has three speeds, controlled by a special switch mounted on the terminal box, which allows the pump to be adjusted to the properties of the system. This circulating pump is intended for water or heating systems, in the case of an electronic circulating pump.
Usage:
- domestic water piping
- industrial circulation systems
- cold water and air-conditioning systems
Detailed description:
- Maximum working pressure : 10 bar
- Distance between suction and discharge ports: 180 mm
- Pumped medium temperature : -10 to +110°C
- Protection rating: IP44
- Insulation class: FH
- Motor power input: 93/67/46 W
- Head (m): 6
- Dimensions H x W x D (cm): 19,5 x 14,5 x 13,5
- Weight (kg): 3,0
- DN suction (mm): 32
- DN discharge (mm): 32
- Maximum flow rate (l/min): 55
- Pump material/parts: liatina / plast
- Voltage rating (V): 230
- Connection size: 2"
