Compression fitting - for ALPEX multilayer pipe - 16x2 ALU-EK

Product detailed description

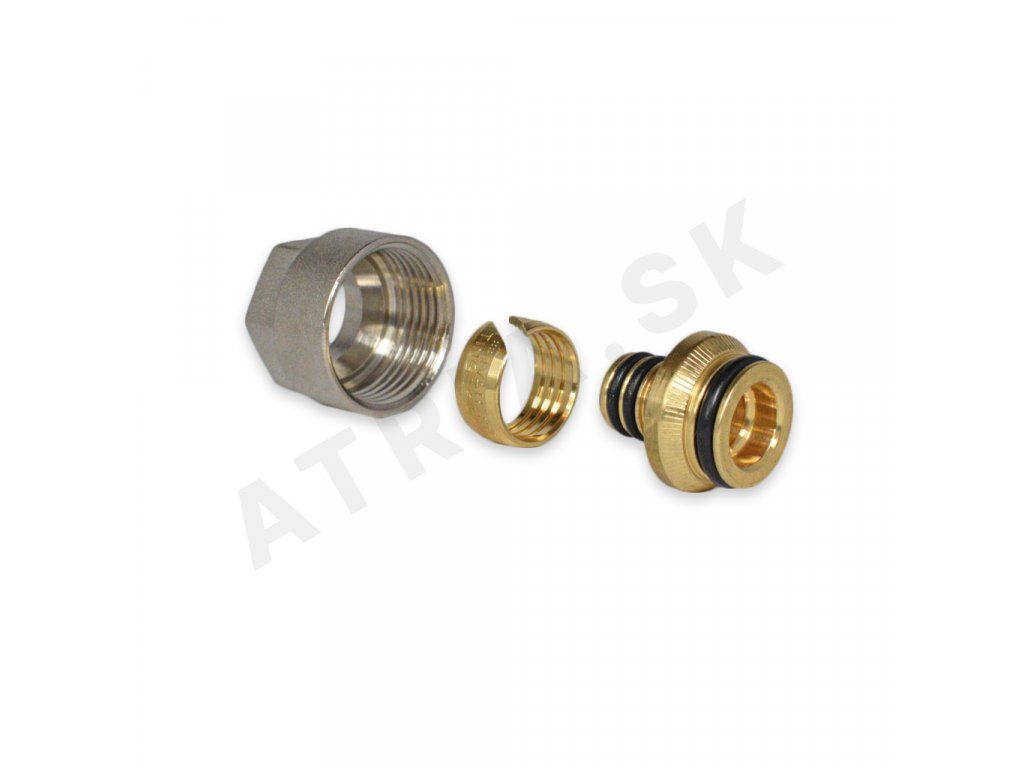

Compression fitting, IVAR.TA 4420, size: 16 x 2 ALU - EK, pack: 40 pcs per bag / 320 pcs per box - for ALPEX multilayer pipe To fit the compression fitting correctly, follow these instructions: 1. Carry out the assembly of the compression fitting in the order and direction shown in the following images. 2. Insert the pipe and the corresponding EPDM seal into the fitting and make sure everything is clean and that the sealing O-ring has not been damaged. 3. Fit the nut onto the thread and tighten it by hand; to fully tighten it, use a wrench of the appropriate size AC 670 / AC 671. Rubber parts must never be lubricated with mineral oils - for the EPDM material, use only silicone-based lubricant.

• PN 10, T = +120°C
• thread: Euro-cone (EK) or M24
• material: brass CW617N, O-ring - EPDM
• tightening torque 25-35 Nm
• suitable for ALPEX pipe
