COMPUTHERM MONOX 5000
Code: NC-22542Related products
Product detailed description

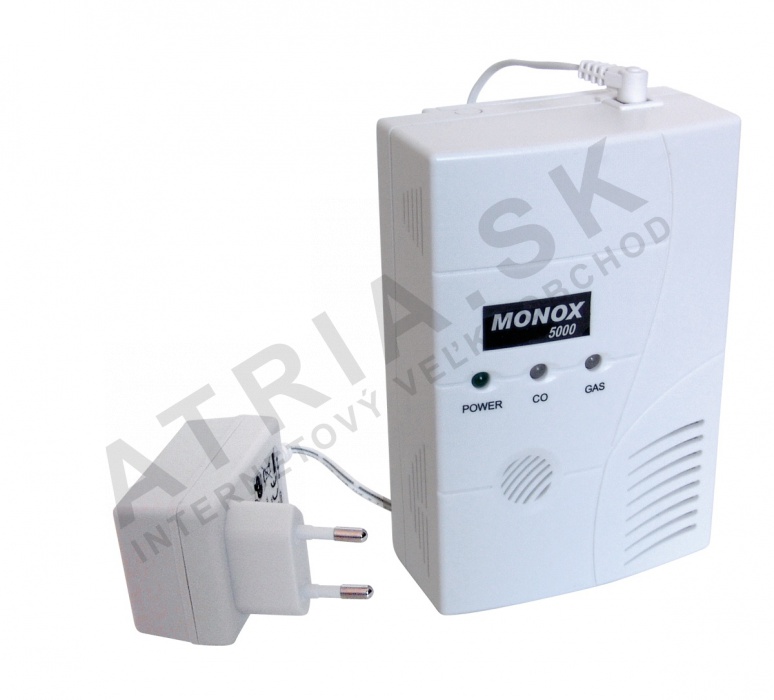

COMPUTHERM MONOX 5000 gas leak sensor
The main area of use of the MONOX 5000 gas leak sensor is to signal the leakage of flammable gases (fuels such as natural gas, LPG) in residential rooms (e.g. bathroom, kitchen, etc.), or to signal a dangerous concentration of CO in the room (CO is always present in the flue gases of combustion appliances /sockets, water heaters, stoves, cookers/ and under abnormal circumstances can accumulate in rooms). The device contains two gas sensors – one designed to detect flammable gases and the other to detect carbon monoxide (CO).
CO warning levels:
- 50 ppm (0.005 vol%) warning within 60-90 minutes
- 100 ppm (0.010 vol%) warning within 10-40 minutes
- 300 ppm (0.030 vol%) warning within 3 minutes
- 400 ppm (0.040 vol%) immediate warning
Gas warning levels: 1000-5000 ppm (0.1-0.5 vol%) warning within 30 seconds
Operating supply voltage: 12V DC
Warning volume: ≥ 85dB
Relay outputs:
- 5-1 (COM-NC): maximum load: 30V AC/DC; 1A
- 5-2 (COM-NO): maximum load: 30V AC/DC; 1A
- 6-4 12V DC output voltage during warning: maximum load capacity: 200mA.
Permitted ambient temperature: +4°C +38°C
Permitted humidity: ≤85%
Standby current consumption: ≤40mA
Alarm mode current consumption: ≤80mA
CO sensor type: electrochemical sensor
Gas sensor type: semiconductor sensor.
Housing material: ABS
Expected sensor service life: 3 years (under clean air conditions)
Additional parameters
| Category: | Computherm controls |
|---|---|
| Warranty: | 2 years |
| Product replaced by new one: | https://www.atria.sk/avansa-2007-tx/ |
| The item has been sold out… | |
