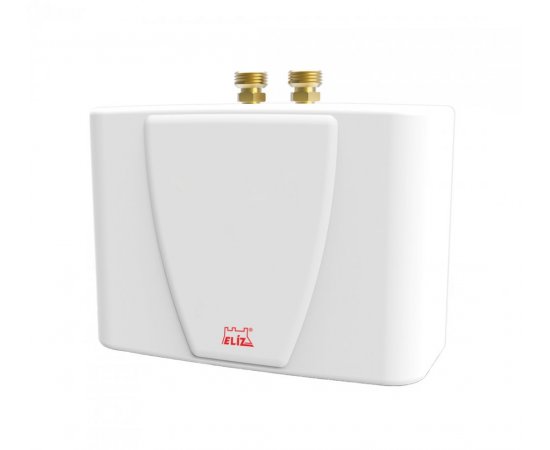

ELÍZ EHT 5.5

Product detailed description

The EHT model is an electric pressurized instant water heater with hydraulic switching. Due to its design, it is intended for connection to only one water outlet point and universal installation below or above a washbasin / kitchen sink. If needed, the heater can be rotated with its outlets in any direction, both vertically and horizontally - 360° installation. The heater can be connected to either a pressurized or unpressurized water tap. When installed below the sink - to a standard washbasin tap. When installed above the sink, the heater can be mounted directly onto any sink tap with an outlet spacing of 30 mm. Water heating occurs at the moment water flows through the heater, so energy is consumed only during the heating process. Thanks to the use of the heater directly at the point of use and short water pipes, heat losses are completely eliminated. An indicator light allows monitoring of the ongoing heating process. EHT instant water heaters are not suitable for supplying a shower as a point of use. The ELÍZ EHT 5.5 instant water heater is supplied with an economical aerator insert (flow regulator), which helps achieve an optimal water temperature at an economical flow rate, especially at low inlet cold water temperature. It is equipped with a thermal fuse against water overheating with a reset function. Advantages and features: Power input: 5.5 kW Simple installation and connection Instant and continuous water heating Energy efficient - Energy class A Efficient hot water supply for the washbasin Hydraulic switching Withstands pressure up to 1.0 MPa Water outlets G3/8" M Distance between water outlets 30 mm Universal 360° installation below or above a washbasin / kitchen sink Can be connected to either a pressurized or unpressurized water tap Installation below the sink - to a standard washbasin tap Installation above the sink - installation on any sink tap with an outlet spacing of 30 mm, or on hoses High-quality heating element with a long service life High safety and reliability of operation Thermal fuse against overheating with reset function Transparent water heating indicator light The heater is supplied with an economical aerator insert - flow rate 3 l/min Power cable for 230 V, without a plug - length 0.8 meters Protection rating IP 25 Leaflet - EHT, ELX, Manual - EHT (SK/CZ)_v05/2021, Technical Data Sheet, Leaflet - advantages of instant water heaters
