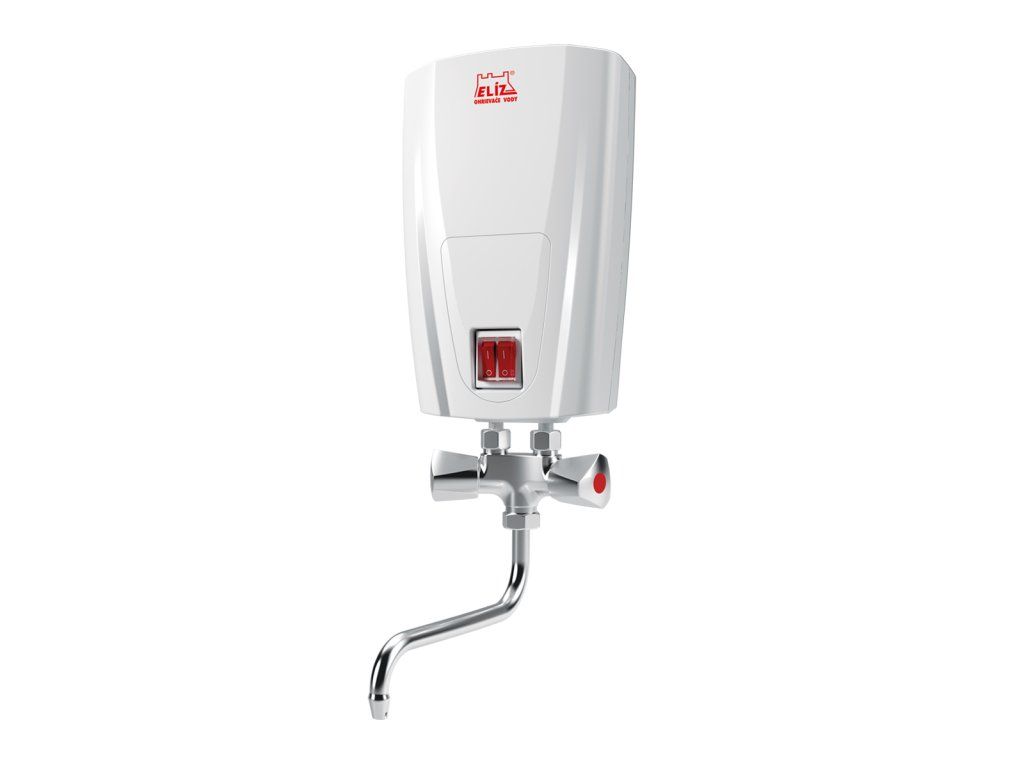

ELÍZ EL 51

Product detailed description

ELÍZ electric instant water heaters are designed for those who expect hot water immediately. Thanks to their design, they are intended for pressureless connection for a single outlet point, installed above a sink or kitchen sink. Instant water heaters are suitable for use in households, cottages, sanitary facilities and anywhere without a central hot water supply. The ELÍZ EL 51 instant water heater is equipped with two heating elements and offers the option of switching power output between 1.5 / 3.5 / 5.0 kW. It is supplied with a special pressureless tap mixer. It may only be operated with the supplied pressureless mixer.

The advantage of ELÍZ instant water heaters is a covered heating element, which significantly resists the formation of limescale and air bubbles in the water pipe. Water heating takes place at the moment the water flows through the heater, which completely eliminates heat losses. A double waterproof switch with a heating indicator light is used to turn the heater on/off and switch between power levels. It also allows monitoring of the ongoing heating process.

Five levels of protection:
1. Protection against electric shock
2. Covered heating element
3. Protection against overheating by regulating water temperature
4. Protection in case of a drop in water supply pressure
5. Protection against excessive pressure

Advantages and features:

• Instant and continuous water heating
• Energy class A
• Installation above a washbasin or sink
• Simple and quick installation
• Hydraulic switching
• 5 levels of protection
• Covered heating elements
• High safety and operational reliability
• Thermal fuse against overheating with reset function
• Double waterproof switch with heating indicator light
• The heater is supplied with a tap mixer
• Power cable for 230 V
• IP 24 protection rating

Water temperature and flow rate at full power and inlet water temperature of 12 °C: 47.8 °C - 2 l/min, 59.8 °C - 1.5 l/min.
