GSM-EXT Module and TC 2016+ Thermostat Set
Code: NC-23536Product detailed description

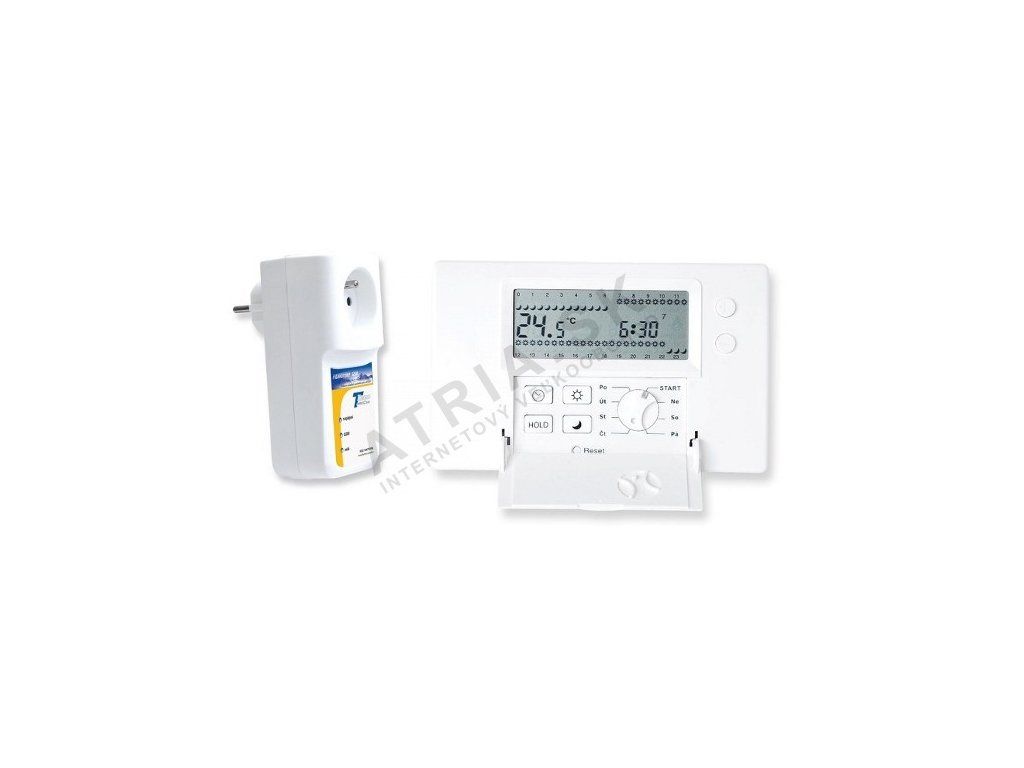

GSM-EXT Module Set with TC 2016+ Digital Manual Thermostat
GSM-EXT
A GSM module that remotely closes or opens a voltage-free contact (max. 5A). The module is equipped with an external output and a pass-through socket. The built-in GSM guarantees easy control via SMS commands or missed-call dialling. It includes a built-in thermometer for measuring temperature, a SIM card slot on the underside, and a switch for manual control or resetting the device
Features:
- the output of the SALUS GSM-EXT module is a 230V socket with a maximum current load of 5A
- secure control via PIN or via stored numbers
- storage of up to 10 numbers for control via SMS
- storage of up to 10 numbers for control via missed-call dialling
- setting for temperature-based control
- option to set a permanent switch or reset
- confirmation of the function by sending an SMS or a missed call back
- operating temperature -20°C to 40°C
Weekly Programmable Thermostat with Intuitive Control TC 2016+
- it is a weekly programmable thermostat with intuitive control that lets you easily and effectively set room temperature control wherever needed.
- given its wide range of uses, it is a universal programmable thermostat suitable for controlling heating devices (all types of boilers, electric direct heaters) as well as air conditioning devices; it switches a device from 0-230V with a maximum load of 16A.
- when an extended sensor (PC) is purchased, the thermostat can also be used for underfloor heating.
Program features
- the thermostat has a clear display with a weekly program, with the possibility of intuitive control in steps of 1/2 hour; up to 48 changes can therefore be set during each day. (2x per hour)
- within the program, two temperatures - comfort (sun) and economy (moon) - can be alternated every 1/2 hour, and can be set to any value.
- the thermostat lets you set any program for each day.
Manual mode
In manual mode, the desired temperature can be set very easily
Anti-frost mode
The thermostat has an anti-frost temperature of 5°C
Technical parameters:
GSM-EXT
- The module's output is a 230V socket with a maximum current load of 10A
- Designed for GSM 900/1800 MHz mobile networks
- Operating temperature -20°C to 40°C
TC 2016+
- Temperature control range: 5-35°C (5-40°C for the PC version)
- Temperature measurement accuracy: 0.1°C
- Temperature sensitivity: 0.2°C (hysteresis 0.4°C)
- Switching: 0-230V, 50Hz, 16A
- Power supply: alkaline batteries 2xLR6
- Dimensions: 85 x 138 x 27mm
Additional parameters
| Category: | Older types of controls |
|---|---|
| Warranty: | 2 years |
| Weight: | 1 kg |
| The item has been sold out… | |
