GRUNDFOS UNILIFT KP 150 A1, cable

Product detailed description

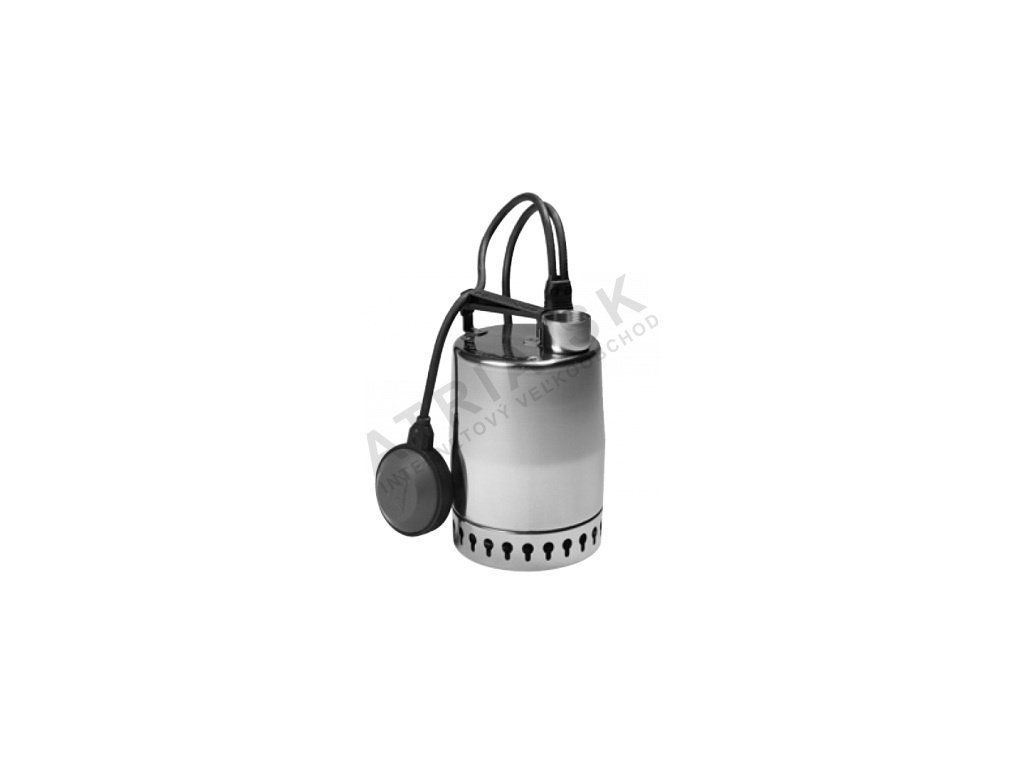

Pump GRUNDFOS UNILIFT KP 150 A1, 10 m cable

Vertical single-stage submersible pump KP 150 A1 is made of stainless steel with a vertical discharge port and an integrated submersible single-phase encapsulated-type motor. The pump is fitted with a suction strainer and a carrying handle. It is supplied complete with a 10 m power cable and a float switch for automatic pump start/stop.

The GRUNDFOS UNILIFT CC pumps are single-stage submersible pumps with a suction capability down to a 3 mm water level. GRUNDFOS UNILIFT CC pumps are intended for pumping rainwater and municipal waste water. These pumps are suitable both for stationary installation and for portable use. They are designed for automatic operation and can pass solids up to 10 mm. The pump motor is fitted with automatic overcurrent protection that switches it off in the event of overload. As soon as the motor cools down to normal temperature, it automatically restarts.

Technical parameters:

• Max head: 5.2 m
• Max flow rate: 141 l / min
• Rated voltage: 230V
• Rated motor output: 0.3 kW
• Float switch: Yes
• Cable length: 10 m
• Max outer dimension: 215 mm
• Discharge connection size: 5/4 "
• Max solids size: 10 mm
• Automatic thermal protection: YES
• Protection rating: IP 68
• Dry-run protection: Yes (float switch version)
• Max immersion depth: 10 m
• Built-in switch: No (not included)
• Speed control: No
• Check valve: No (not included)
• Seal: simple mechanical
• Max pumped medium temperature: 50 °C
