Tatramat EO 944 P - above the sink
Code: 230311Related products
Product detailed description

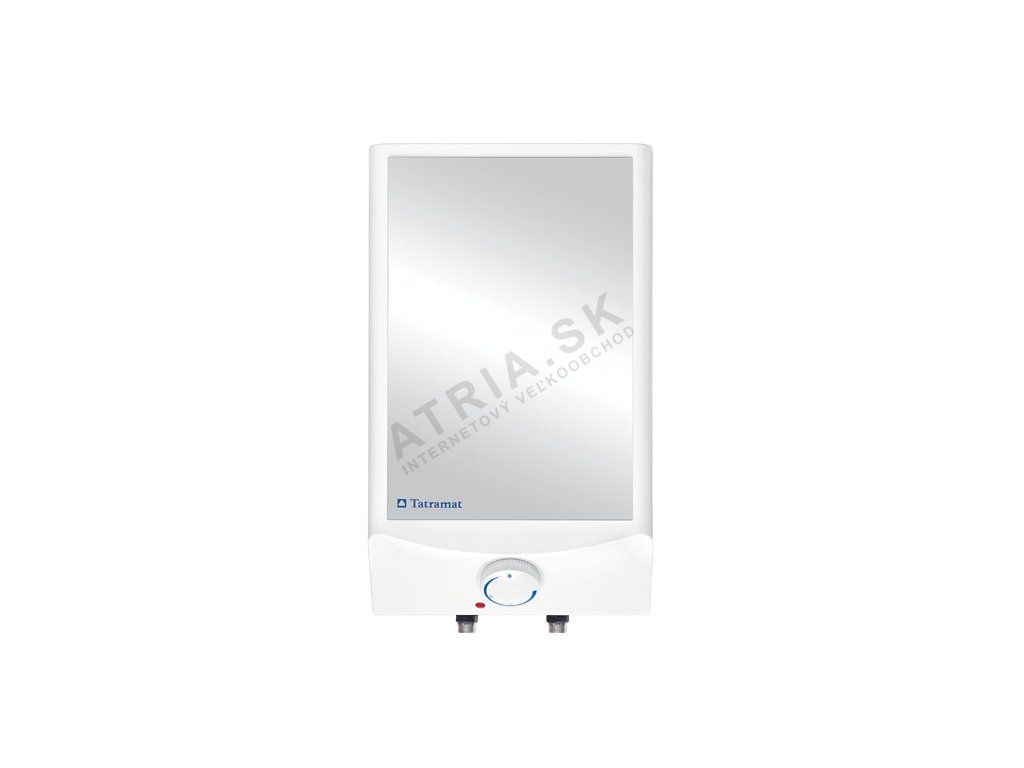

Tatramat EO 944 P
- small electric wall-mounted unpressurized water heater above sink
- with a lever-mixer tap
- volume: 10 litres
- output: 2 kW
Heater EO 944 P is unpressurized water heater with a plastic tank and an operating pressure of 0 MPa for a single outlet. They can be connected only to a special unpressurized mixing tap supplied as an accessory.
Installing the heaters onto the water supply is simple, and all that's needed to put them into operation is plugging them into an electrical outlet.
The heater features mirror located on the front panel. Combined with its modern design, it fits into any interior.
Easy installation, control and maintenance

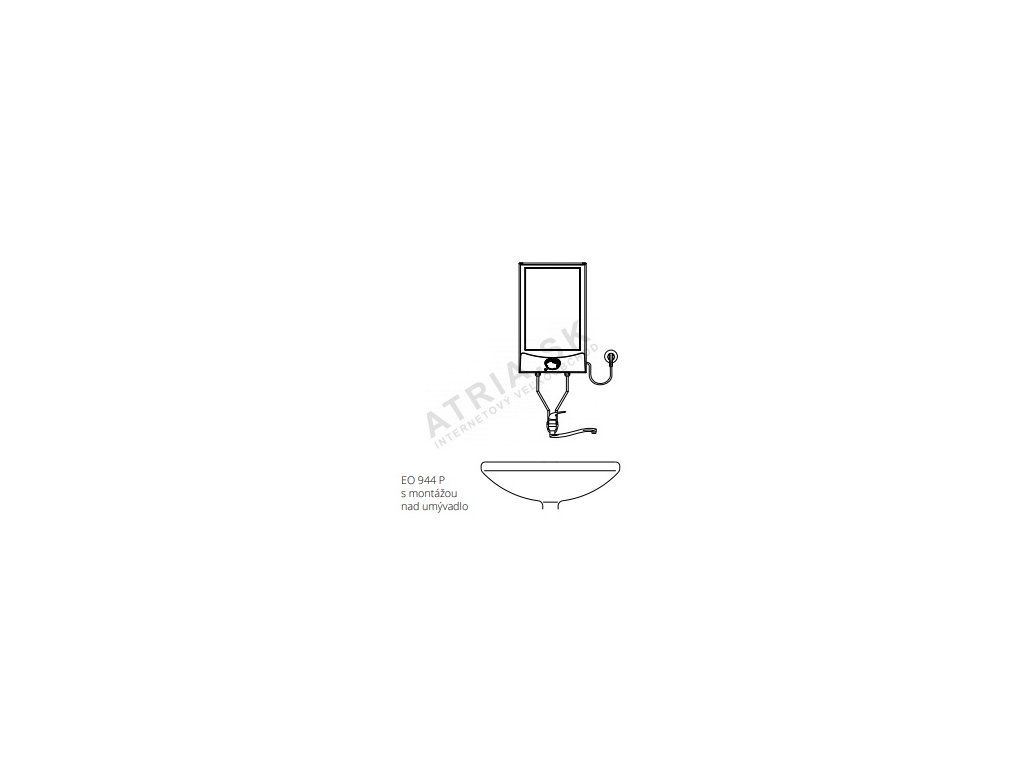

- option to install above the sink
- commissioning by plugging into an electrical outlet
- option to set the optimal heating temperature
Multi-stage protection
User comfort
- short heating times
- heating indicator
- unpressurized mixing tap as an accessory
Economy and low energy consumption
- thermal polystyrene insulation

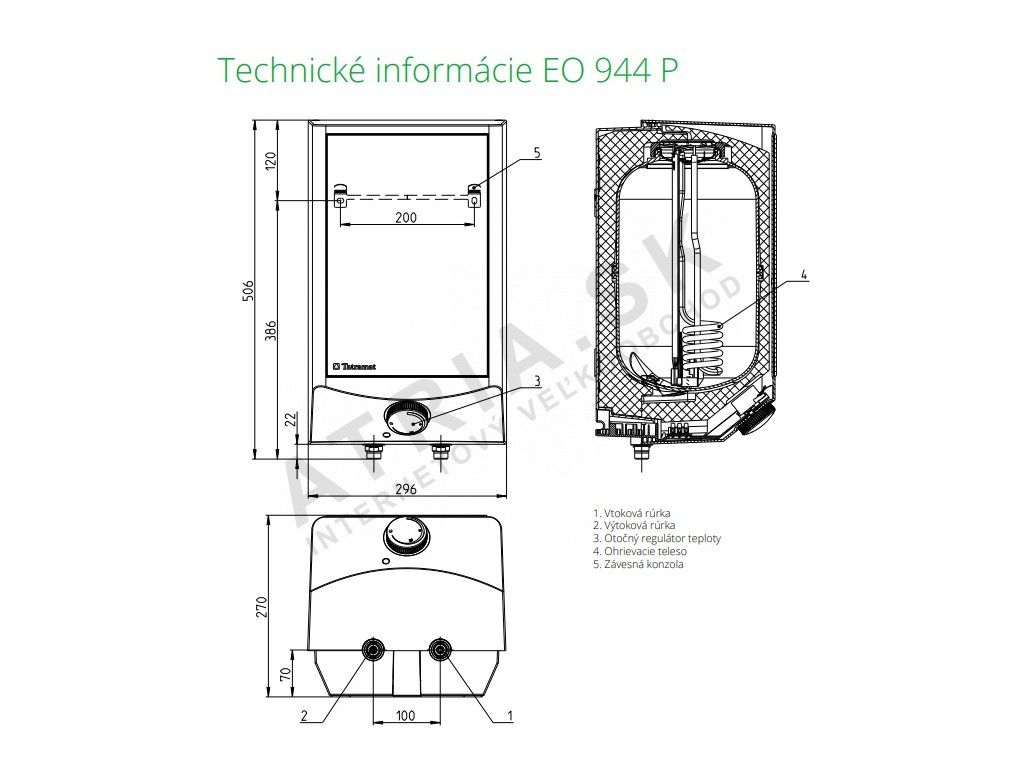

Description and dimensions
1. Outlet pipe
2. Outlet pipe
3. Rotary temperature control
4. Heating element
5. Wall bracket
| Parameters | EO 944 P |
|---|---|
| Nominal volume (l) | 10 |
| Heating method | electric |
| Version | unpressurized |
| Nominal tank overpressure (MPa) | 0 |
| Electrical voltage | 1/N/PE ~ 230 V |
| Power input (kW) | 2 |
| Max. thermostat cut-off temperature (°C) | max. 85 ± 3 ºC |
| Approx. heating time from 15 °C to 65 °C (min) | 18 |
| Heat losses (kWh/24h) | 0,31 |
| Weight (kg) | 5,6 |
| Electrical protection rating | IP 24 |
| Energy efficiency class | A |
| HxWxD (cm) | 50,6 x 29,6 x 27 |
Additional parameters
| Category: | Unpressurised |
|---|---|
| Warranty: | 2 years |
| Weight: | 10 kg |
| The item has been sold out… | |
-
Technical Data Sheet
-
User Manual
-
Energy Label and Data Sheet
-
Declaration of Conformity
-
Certificate (1.2 MB)
Product rating
Be the first who will post an article to this item!
Discussion
List of discussions
J
Július
Július
Dobrý deň,
Vlastníme prietokový ohrievač Tatramat EO 944 P , ktorý prestal správne fungovať. Po pripojení vyhadzuje prúdový chránič. Zrejme poškodené výhrevné teleso.
Bolo by možné ešte zabezpečiť totožný kus na výmenu, prípadne viete ponúknuť adekvátnu náhradu?
... alebo existuje nejaká opravná sada, ktorá by riešila výmenu vnútorných častí ohrievača?
Ďakujem,
S pozdravom,
Július
A
ATRIA.SK
ATRIA.SK
Dobrý deň,
žiaľ, tento tovar u nás už nie je dostupný.
U nás : https://www.atria.sk/vyhladavanie/?string=stiebel%20eltron. Pekný deň.
J
jan
jan
Dobrý deň. Vlastním už niekoľko rokov Váš ohrievač vody EO 944 P a som s ním veľmi spokojný. V súčasnosti mám problémy zmiešavaciou batériou. Môj dotaz je či u Vás dostať kompletnú batériu /trubky,podložky/. Koľko stojí samotná batéria a po objednaní dodacia lehota. V súčasnosti je batéria T -1843. ďakujem.
A
atria
atria
Dobry den, viem, ze u kazdej baterie su flexi hadice, srobenia a tesnenia. Nemali by ste teda dokupovat nic ineho na motnaz tejto baterie.
