Tracker Insulation Board UHP49

Product detailed description

Tracker system polystyrene insulation board UHP49 for underfloor heating. Without studs

Sheet size 0.84m2

Pipe diameter: any

Flexural strength: 150kPa

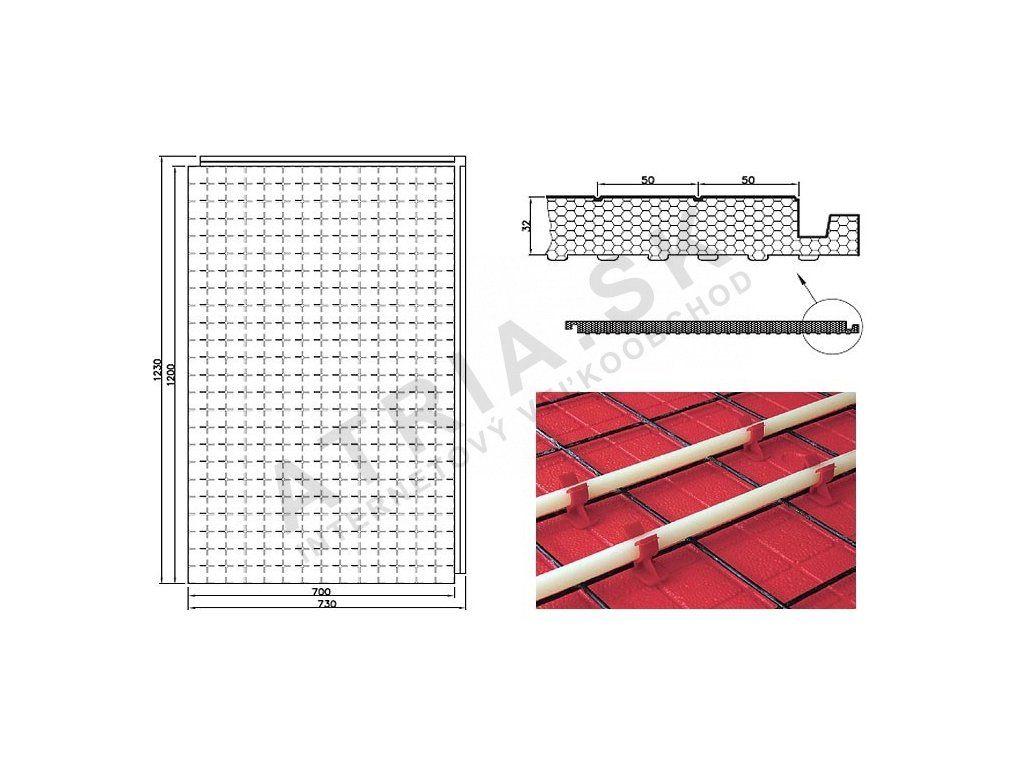

Overall height: 32 mm

System polystyrene insulation board without studs for underfloor heating is suitable for high loads, industrial use and family houses.

All system boards feature a so-called "lock", which ensures each side of the board overlaps with the next board, preventing concrete from penetrating under the polystyrene.

Polystyrene insulation boards are made of extruded polystyrene.

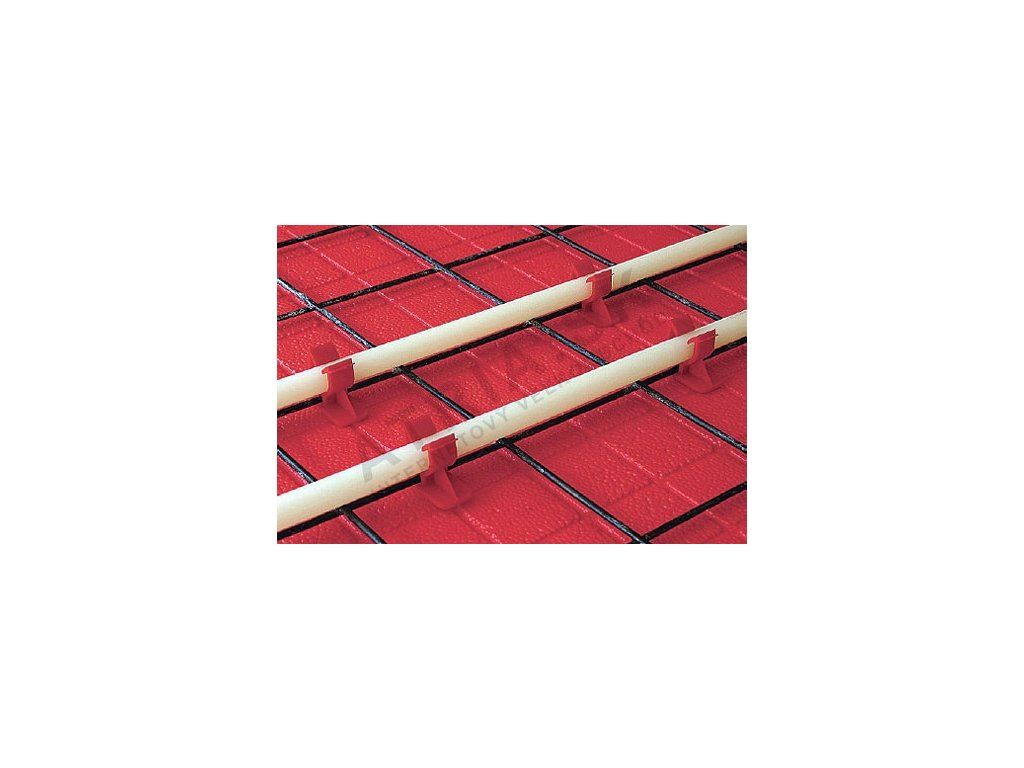

Installation is carried out by routing the pipe along the marked lines; fastening is possible with clips.

Possibility of installing any type of pipe.

On the inner side of the board, beneath the studs, there are 5 mm small protrusions that ensure the pipe is perfectly wrapped in the screed material, including from underneath. This ensures perfect heat transfer into the heating board around the entire circumference of the pipe.

More information is available at www.systemova-doska.sk, or you can find installation instructions for underfloor heating with frequently asked questions at www.systemova-doska.sk/podlahove-vykurovanie/

This particular polystyrene insulation for underfloor heating has a slightly higher density than the system board UHP55; it is up to the customer which board they choose. It is mostly just a matter of comfort when laying the pipe into the polystyrene, since the polystyrene has no studs.
