ELÍZ EURO 500 S1

Product detailed description

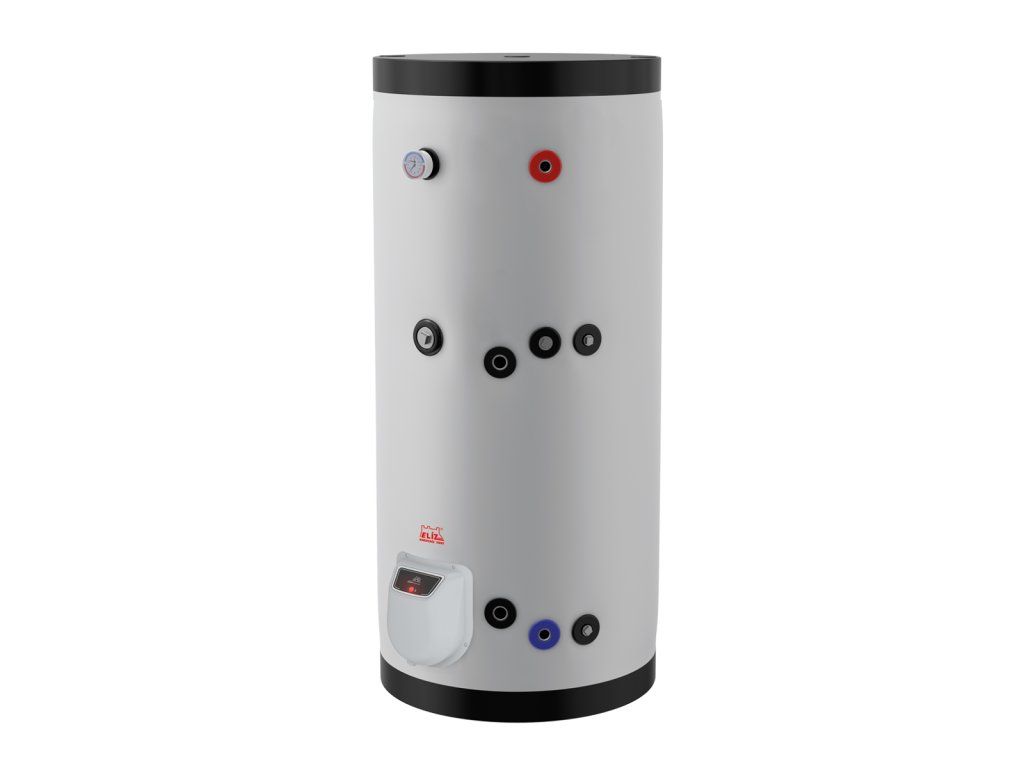

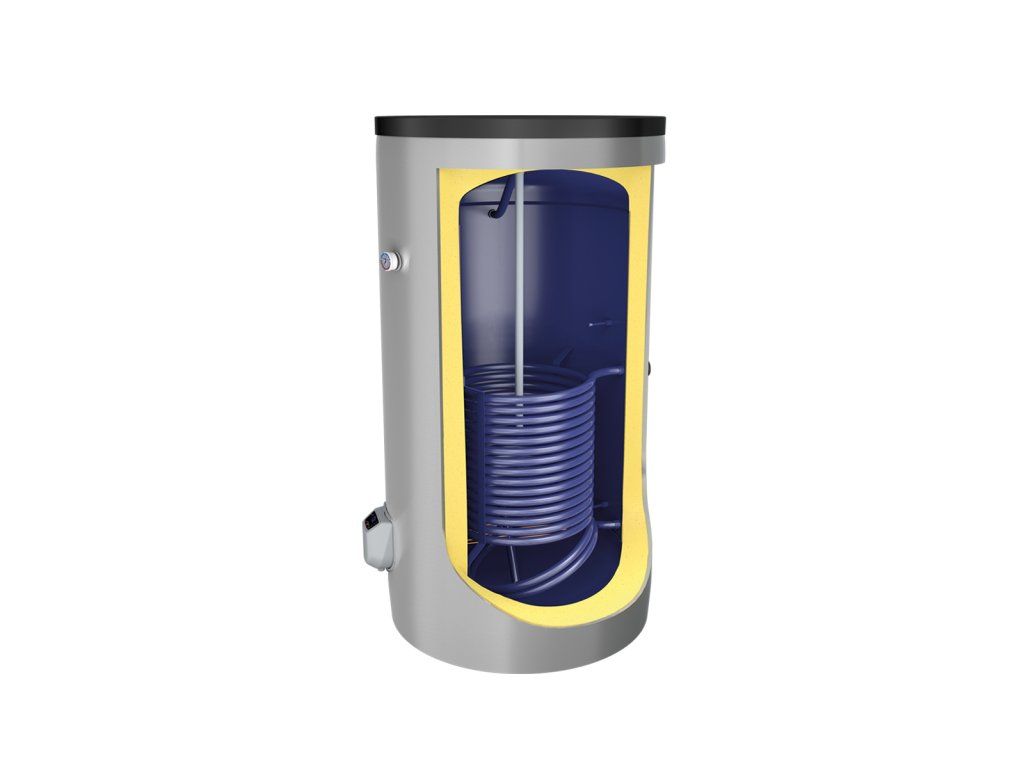

EURO 500 S1 is a stationary, floor-standing water heater with a capacity of 500 litres. The heater has built-in electric heating elements with an output of 6 kW and is fitted with one heating exchanger coil for connecting an external hot-water heat source, e.g. a central heating boiler or a solar system. The water can be heated using electric energy (electric heating element) or another heat source connected to the exchanger – local central heating, a solar system (or a heat pump). The electric heating element is installed in the lower part of the heater on a flange. When heating the water with the electric heating element, you can set the required water temperature using the thermostat control under the cover. The inner tank of the heater and the heating exchanger are made of high-quality steel and are protected by a special direct enamelling surface treatment (glass-ceramic enamel with added zirconium). The enamelled tank and exchanger are protected against corrosion by double anode protection - two magnesium alloy anode rods are installed in the tank, which reduce the effects of corrosion and extend the tank's service life. There is a circulation port in the middle part of the tank for connecting a circulation line. The tank has two ports for additional immersion sleeves for controlling the regulation system (thermostat communication sensors). Main advantages and features: High output, fast water heating Energy class B High-quality steel tank and heating exchanger protected by zirconium enamel CFC-free high-density polyurethane insulation, 80 mm thick Low heat losses and low operating costs thanks to thick insulation Ports for thermostat communication sensors of the external heat source Safety - unique 6-stage protection Double anode protection of the tank - 2 magnesium anodes Thermostat for electric heating - range 30 - 75 °C Thermal fuse against overheating Electric heating indicator light Temperature indicator Metal 3/4" safety valve with non-return valve included with the heater Extended 5-year warranty on the heater tank Technical data sheet
